Panels and Profiles.
Corrugated metal panels for roofing and siding. As well as agriculture, residential, commercial, and decorative trim profiles.

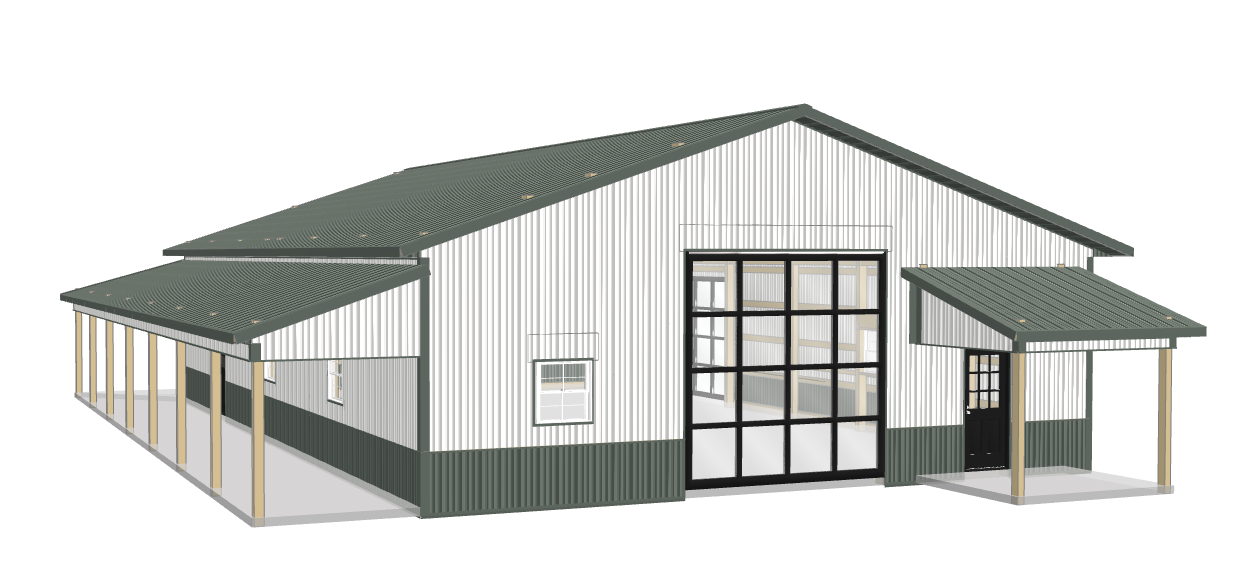

Agriculture Panel

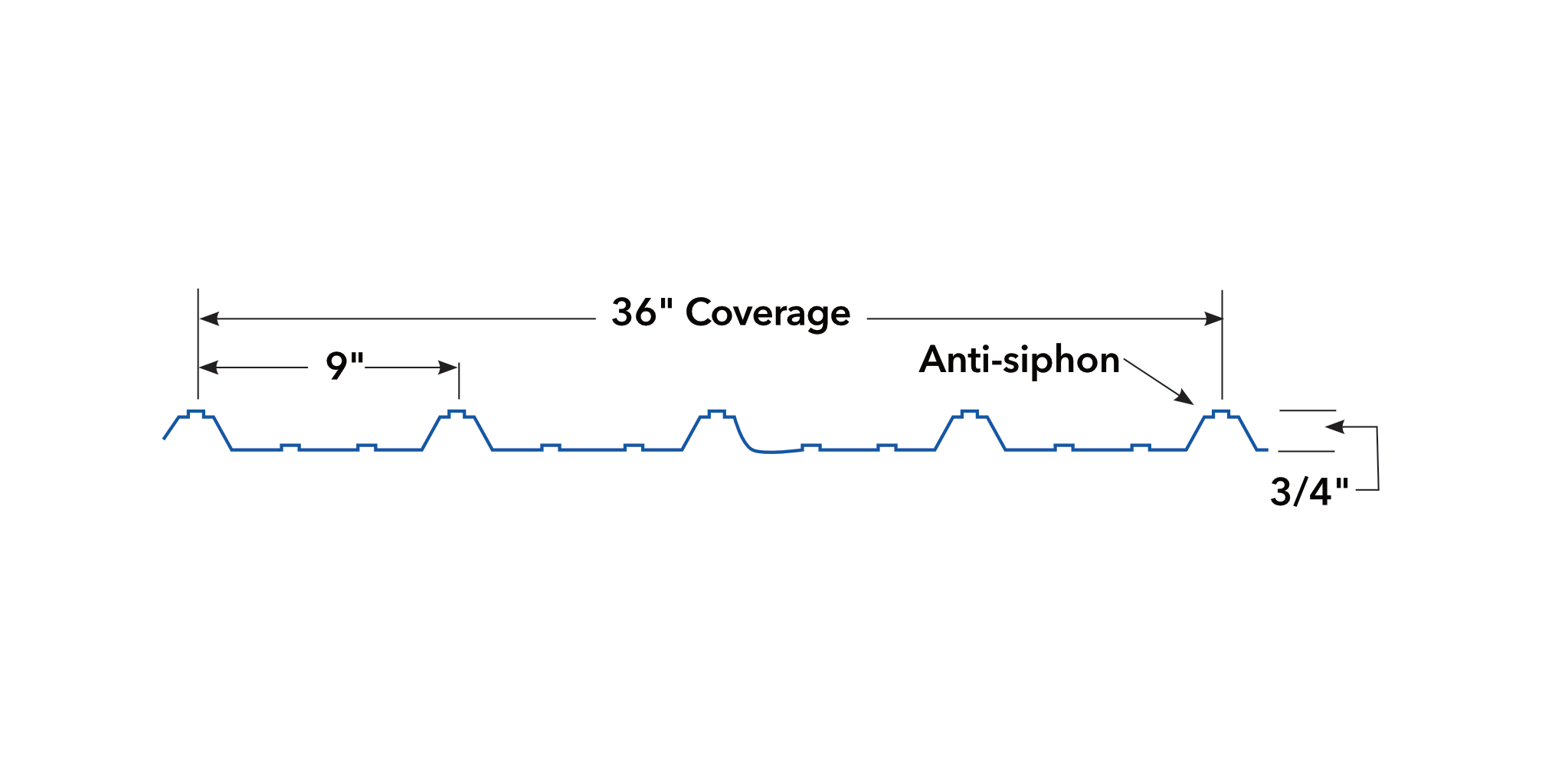

“G” panel with agriculture rib – Components and Profiles

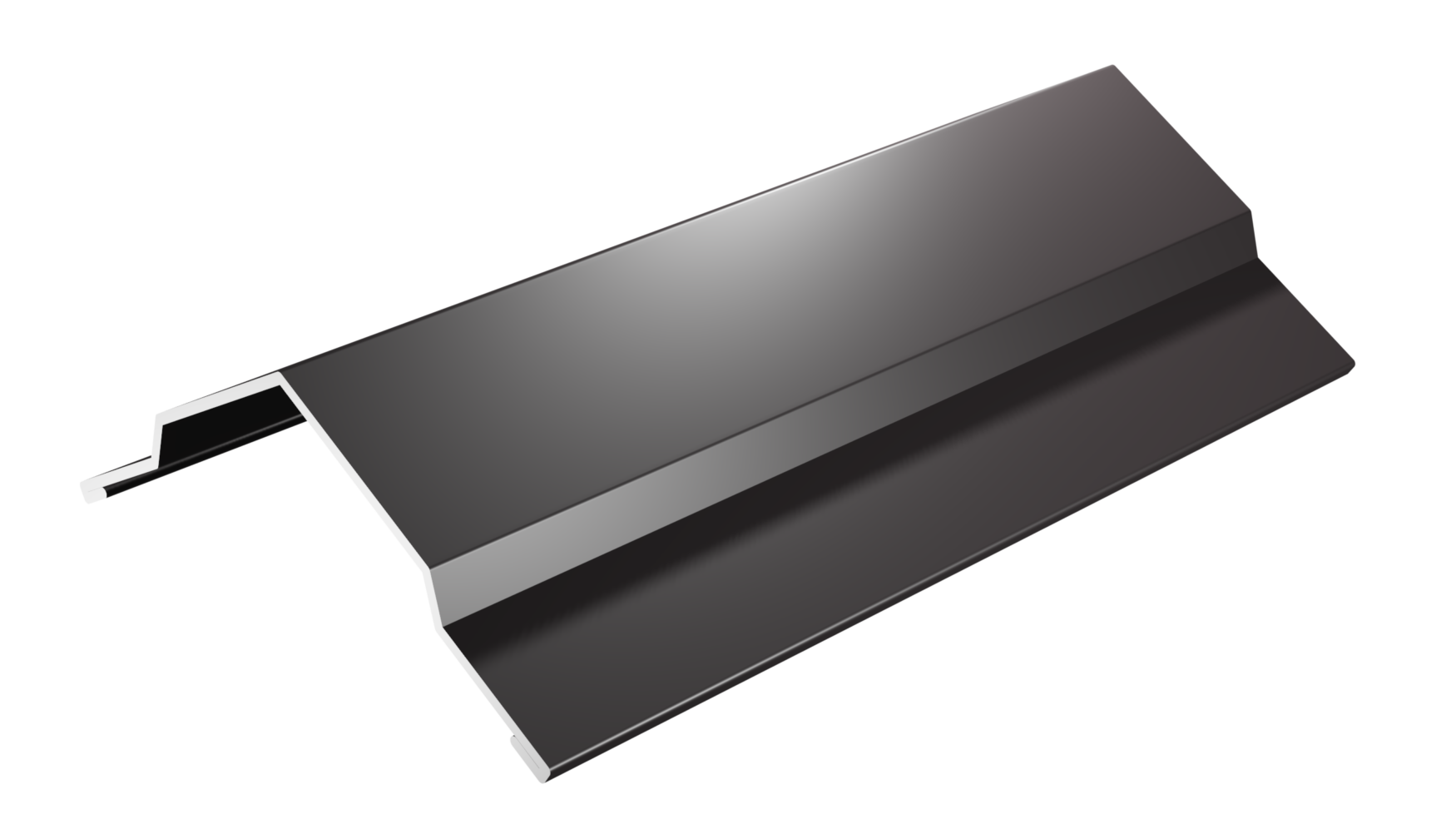

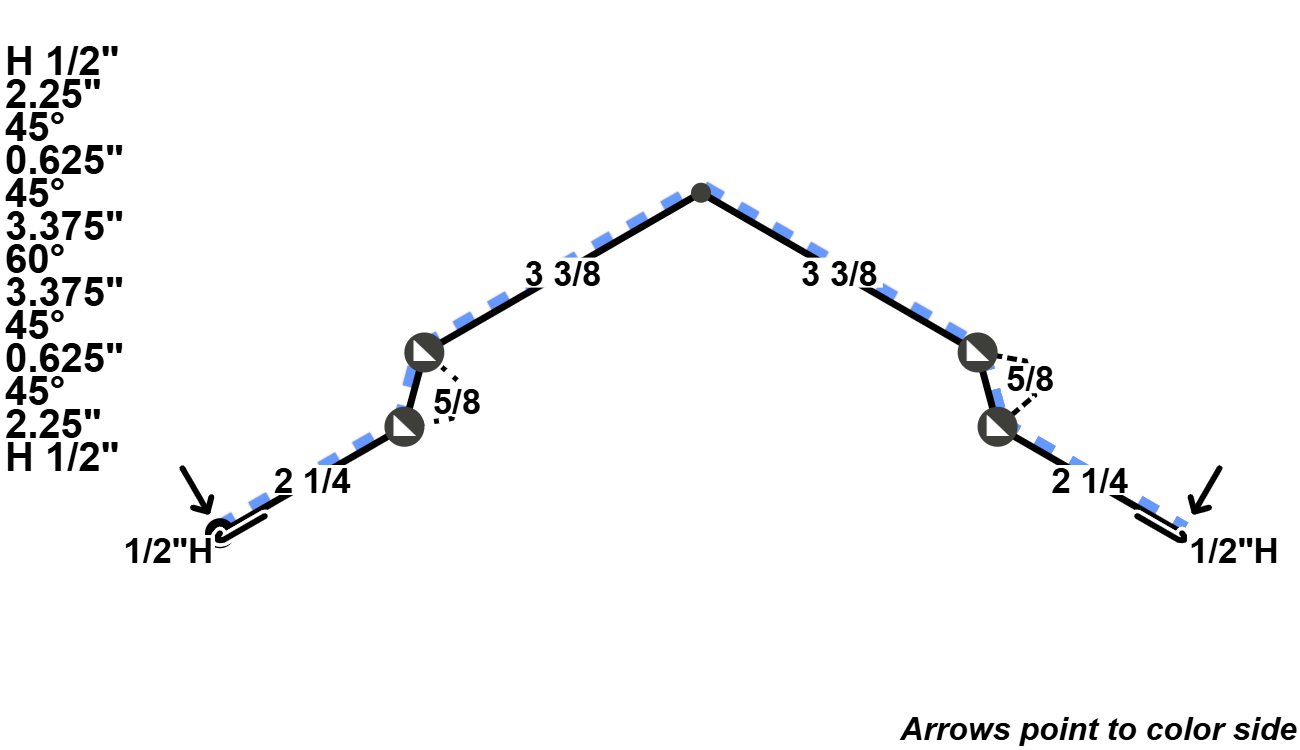

Standard Ridge Cap

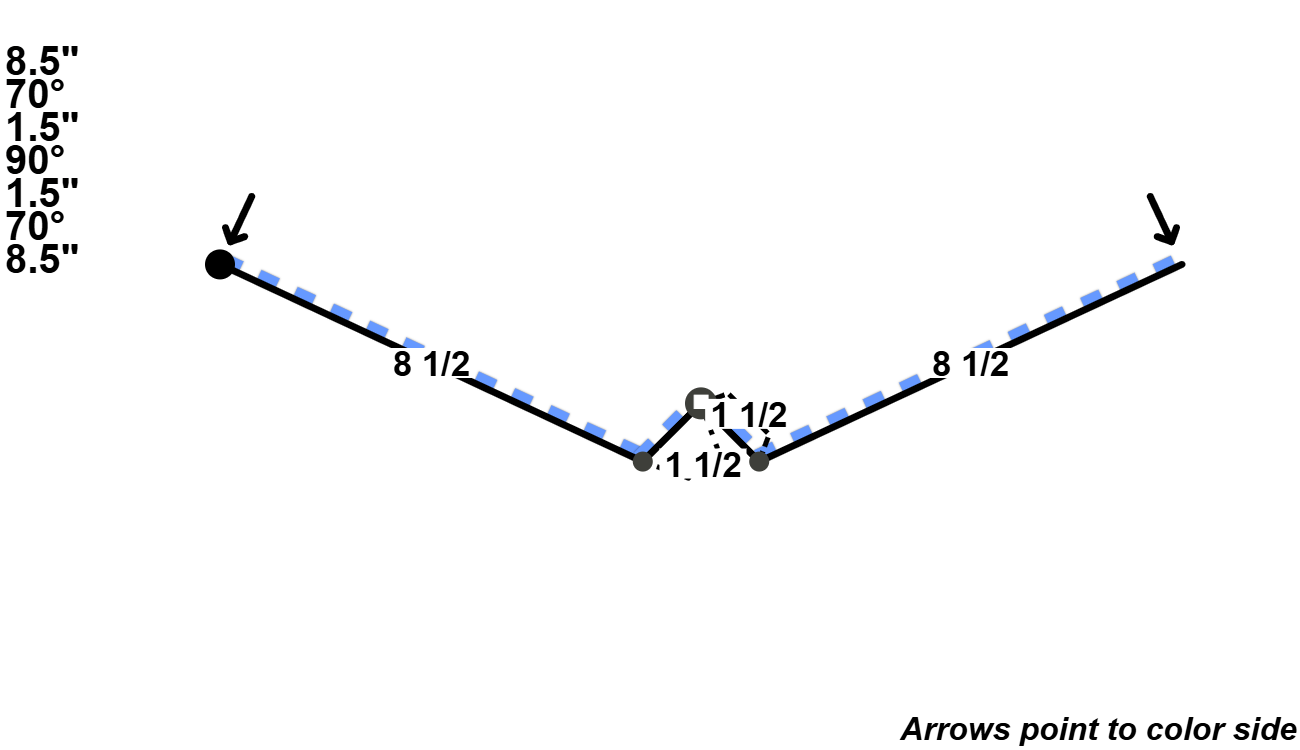

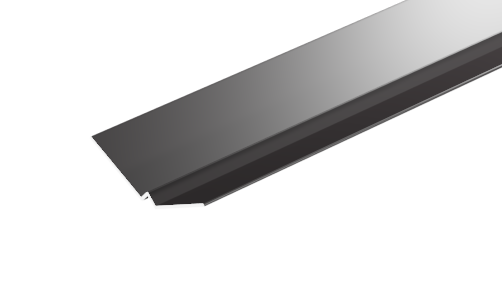

"W" Valley

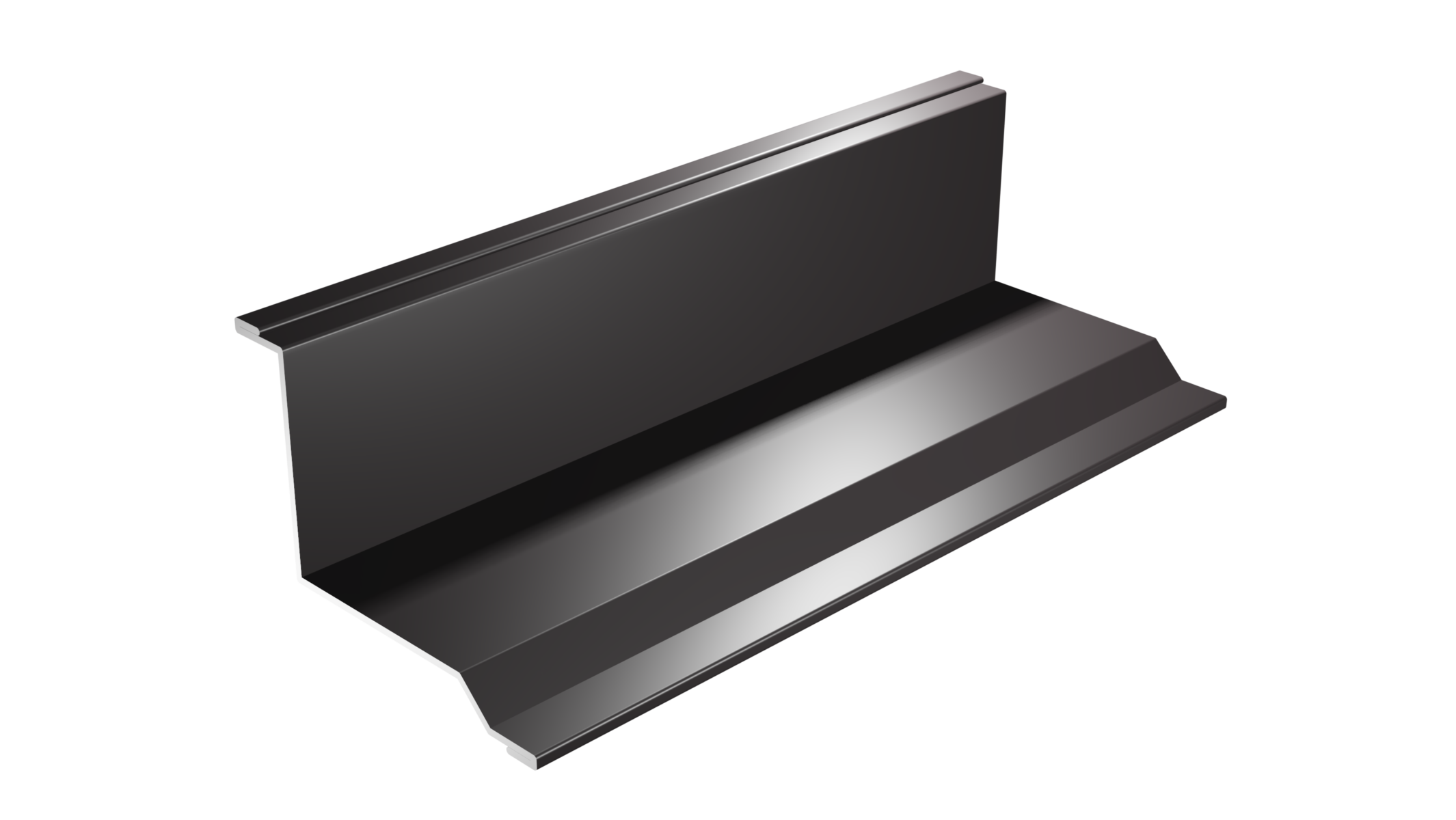

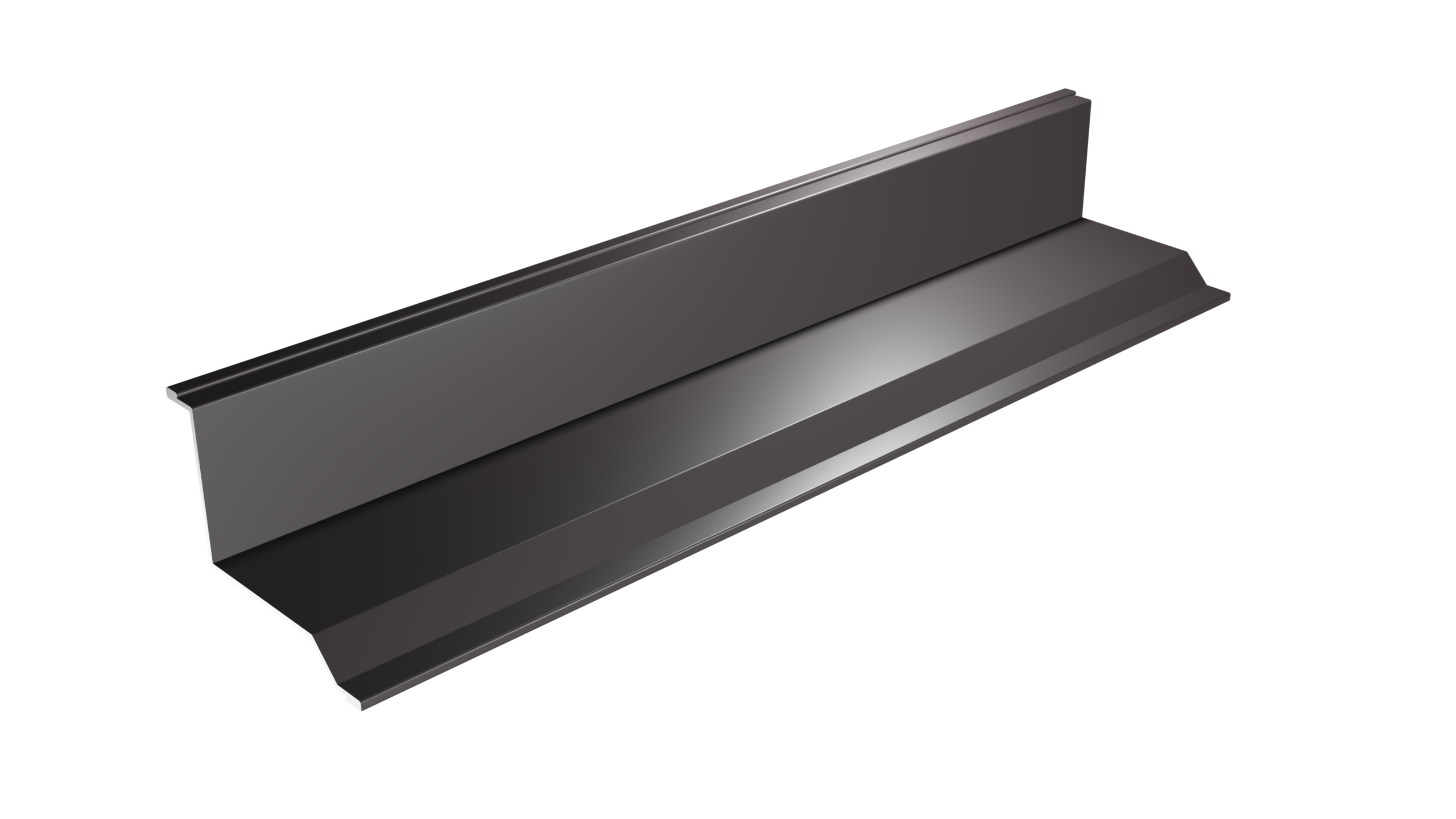

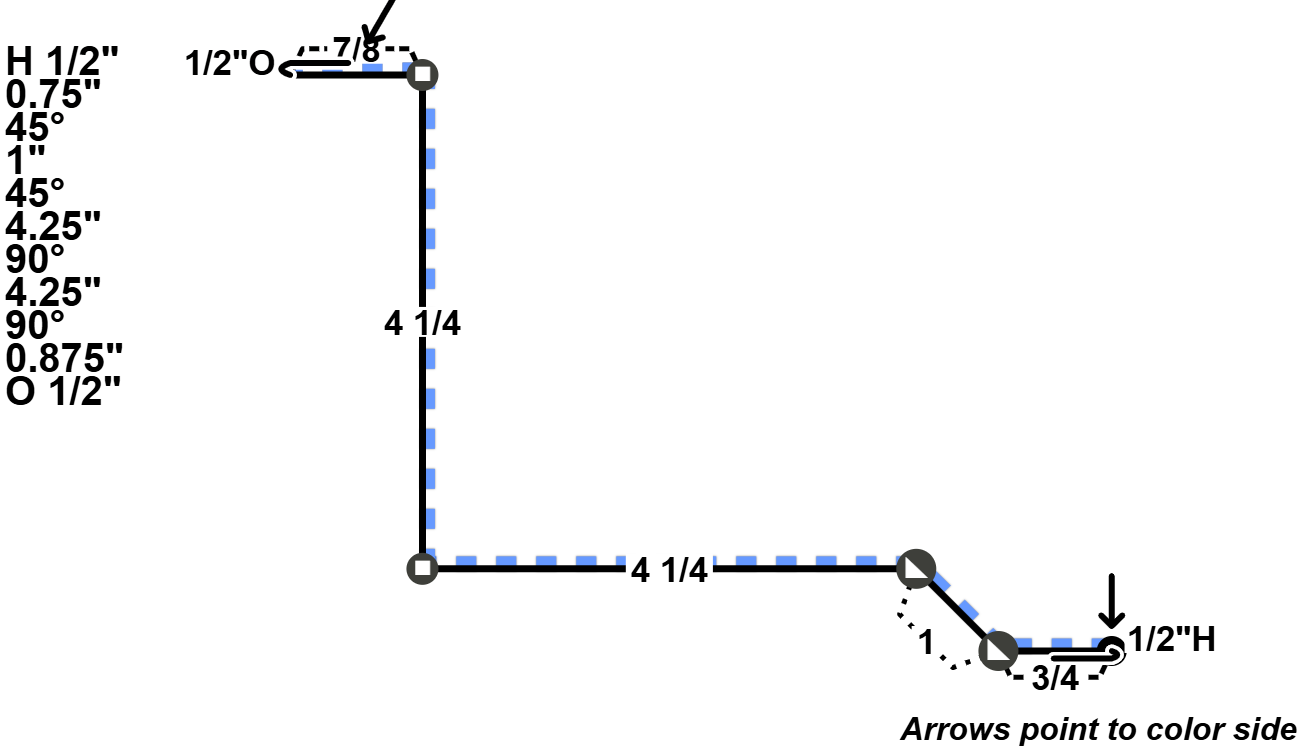

Chimney Side Wall Flashing

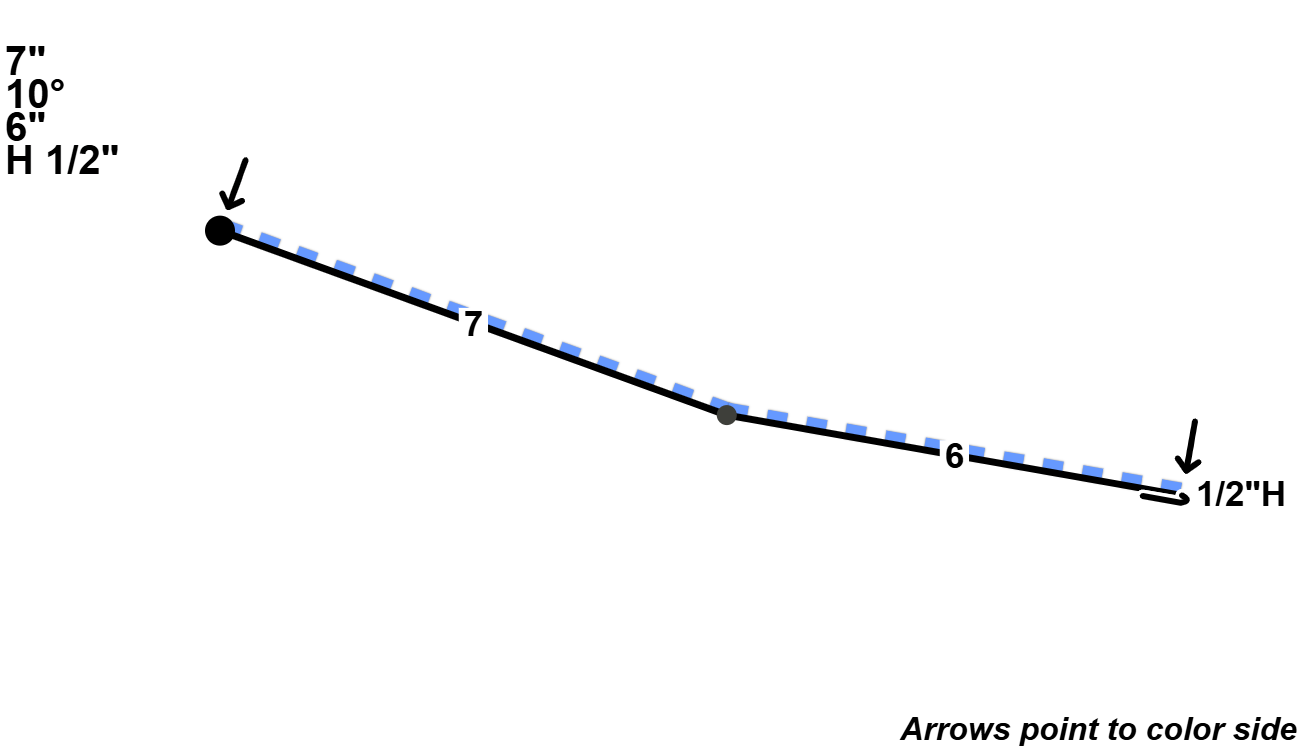

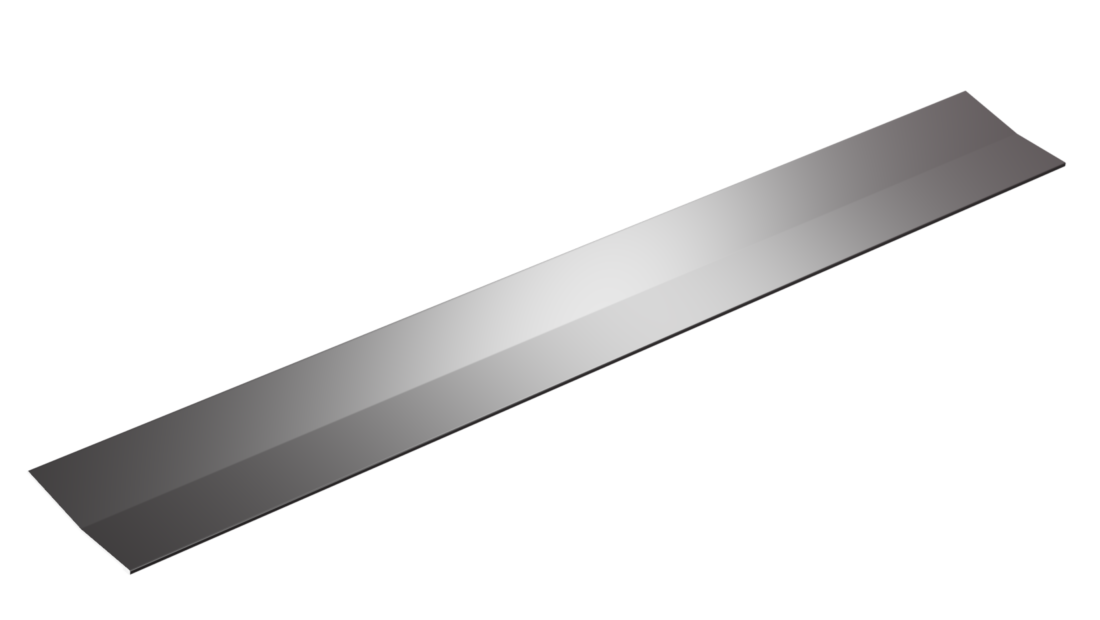

Transition Flashing

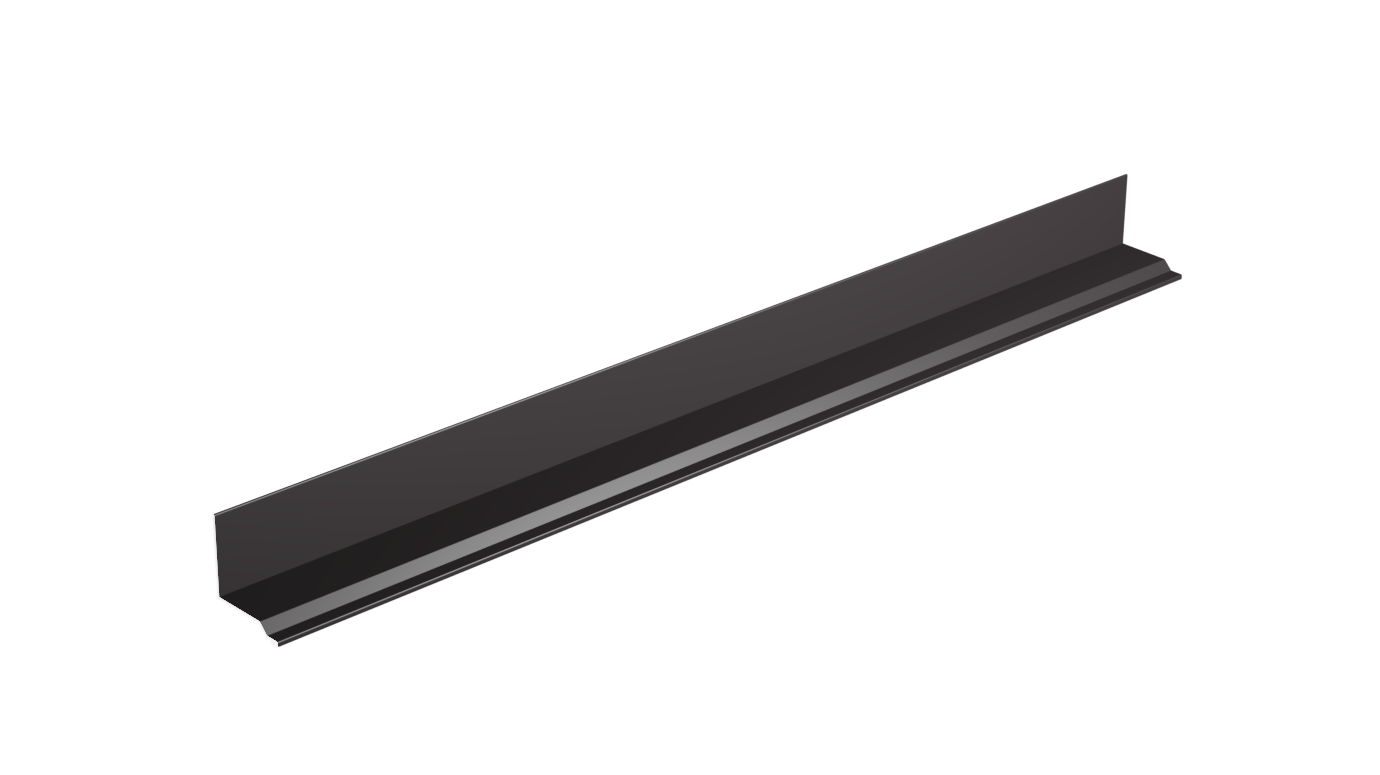

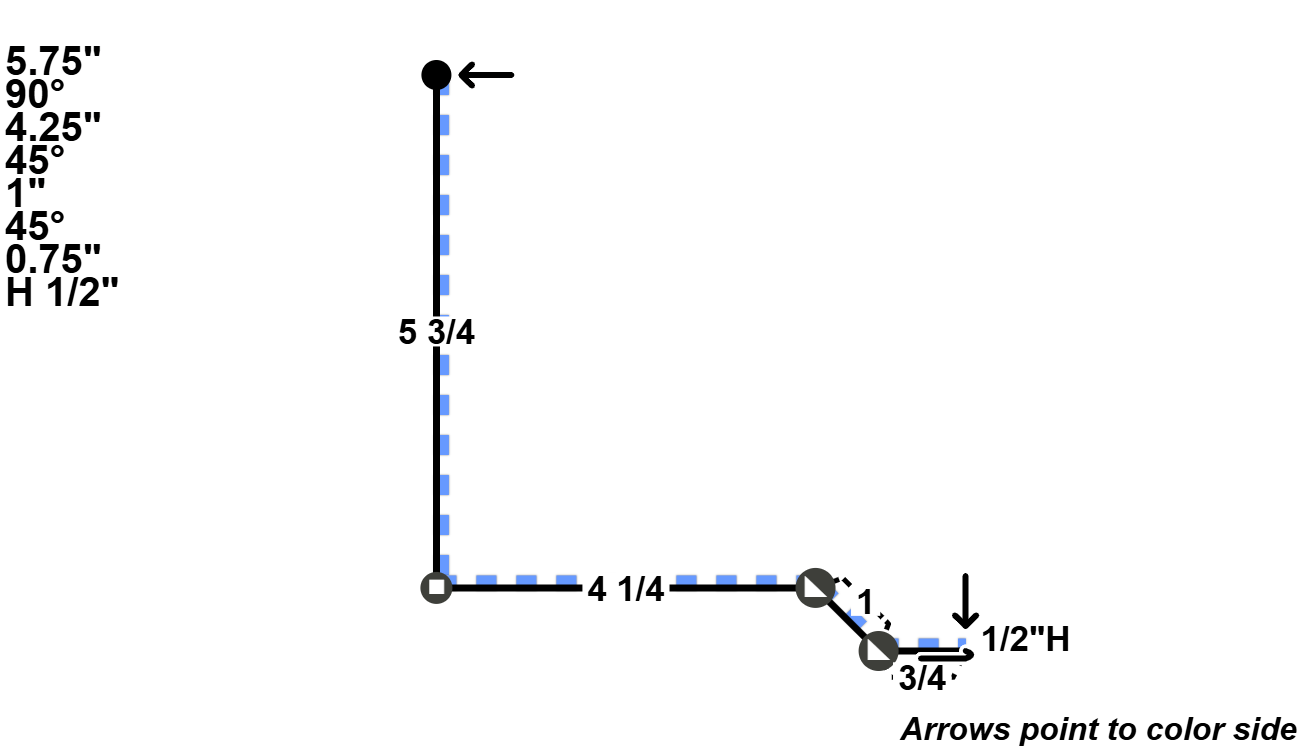

Side Wall Flashing

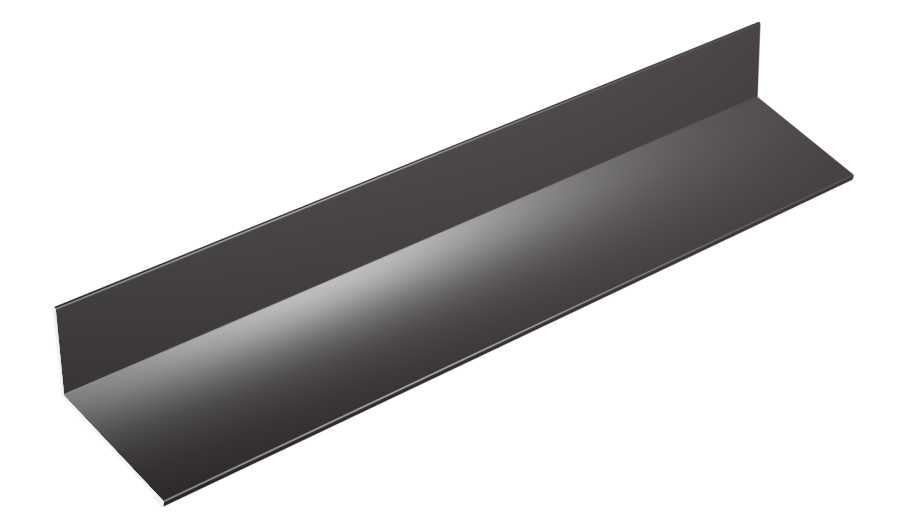

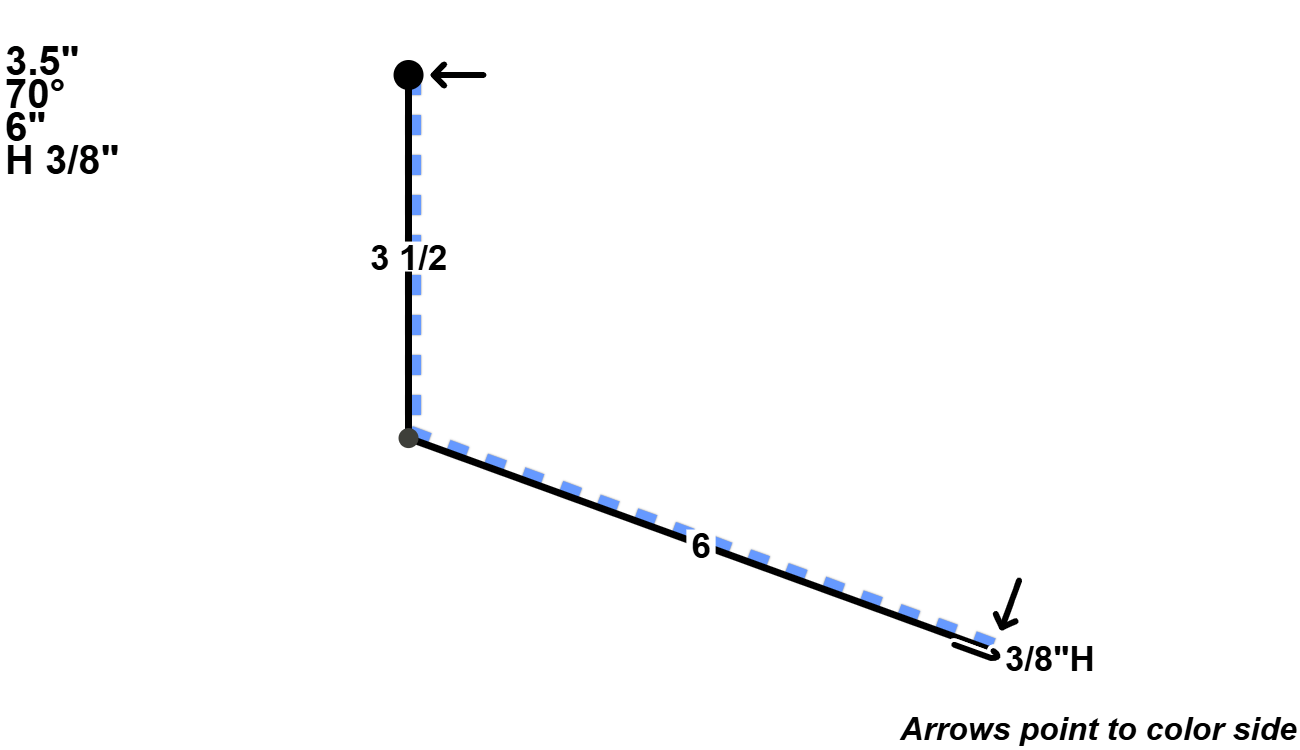

End Wall Flashing

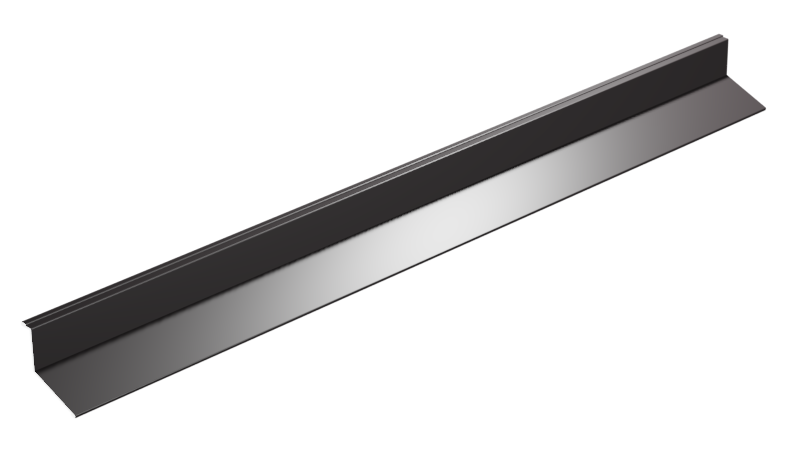

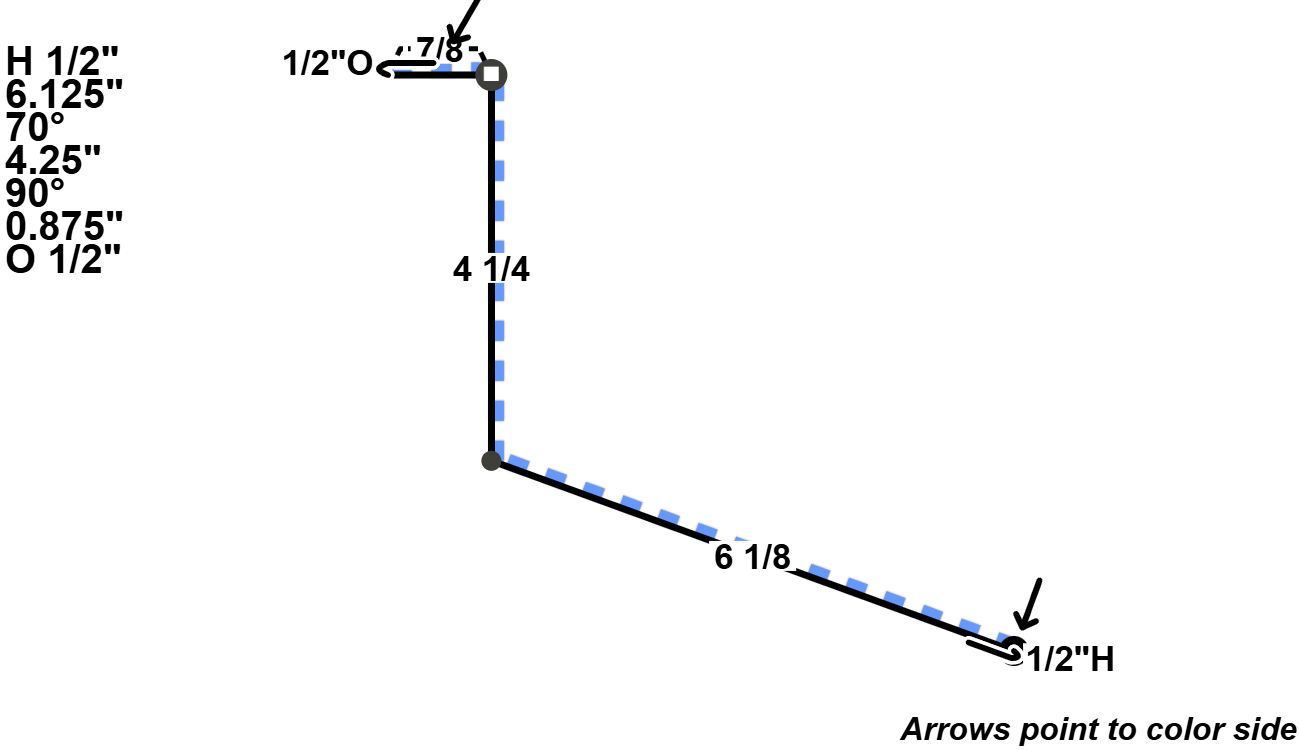

Chimney End Wall Flashing

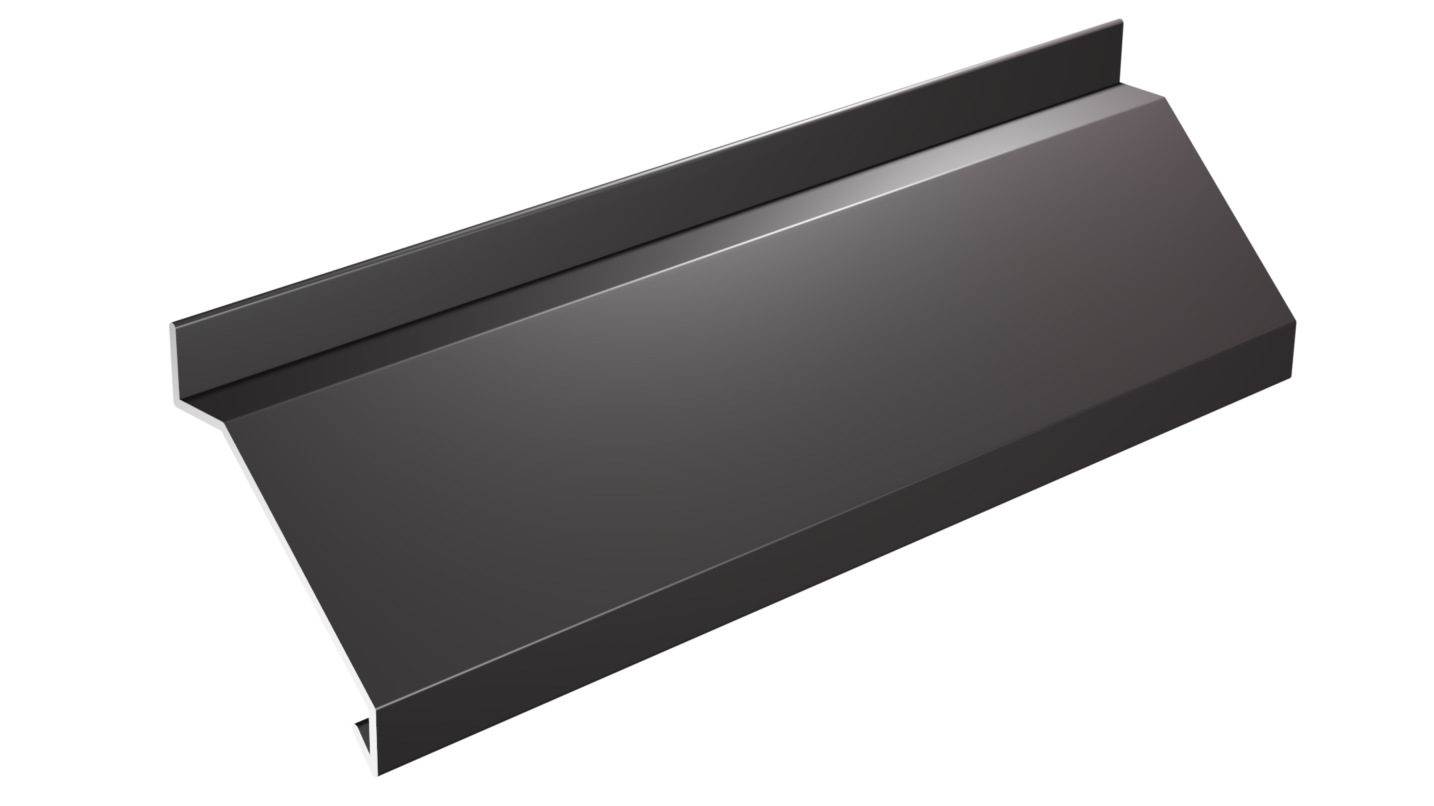

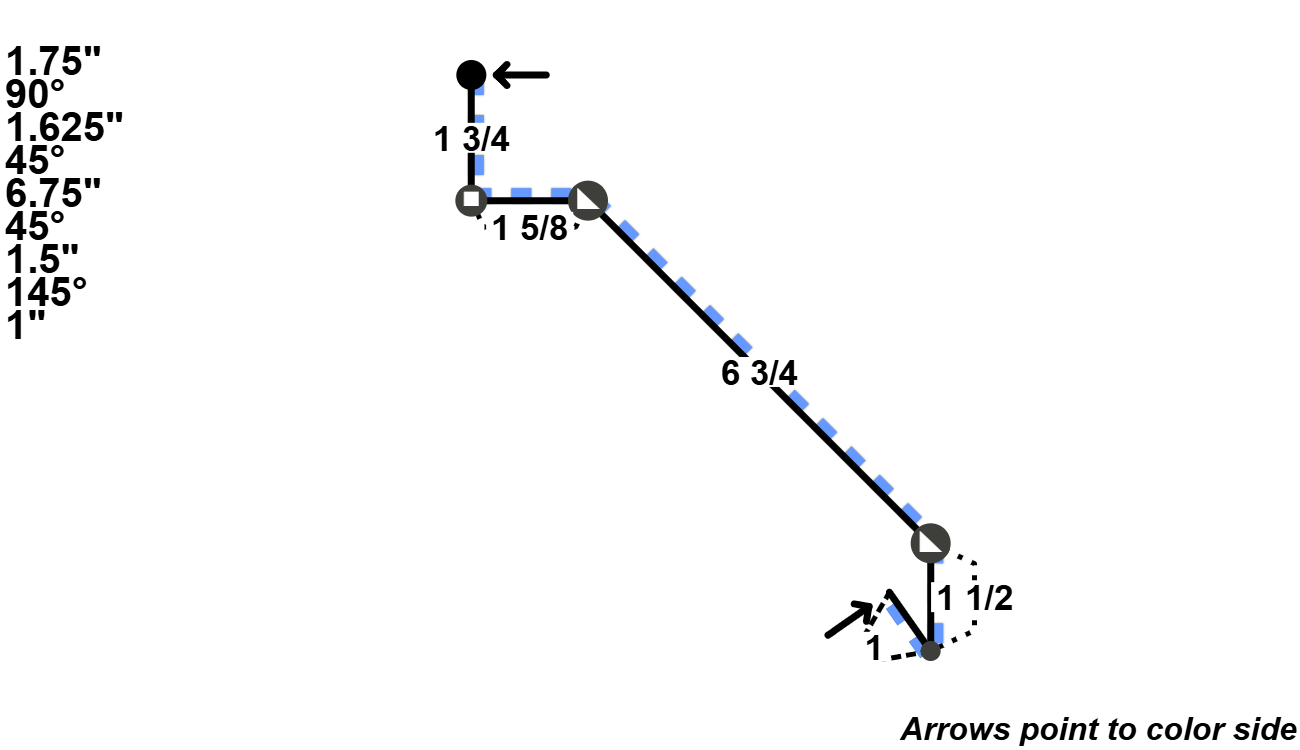

Track Cover

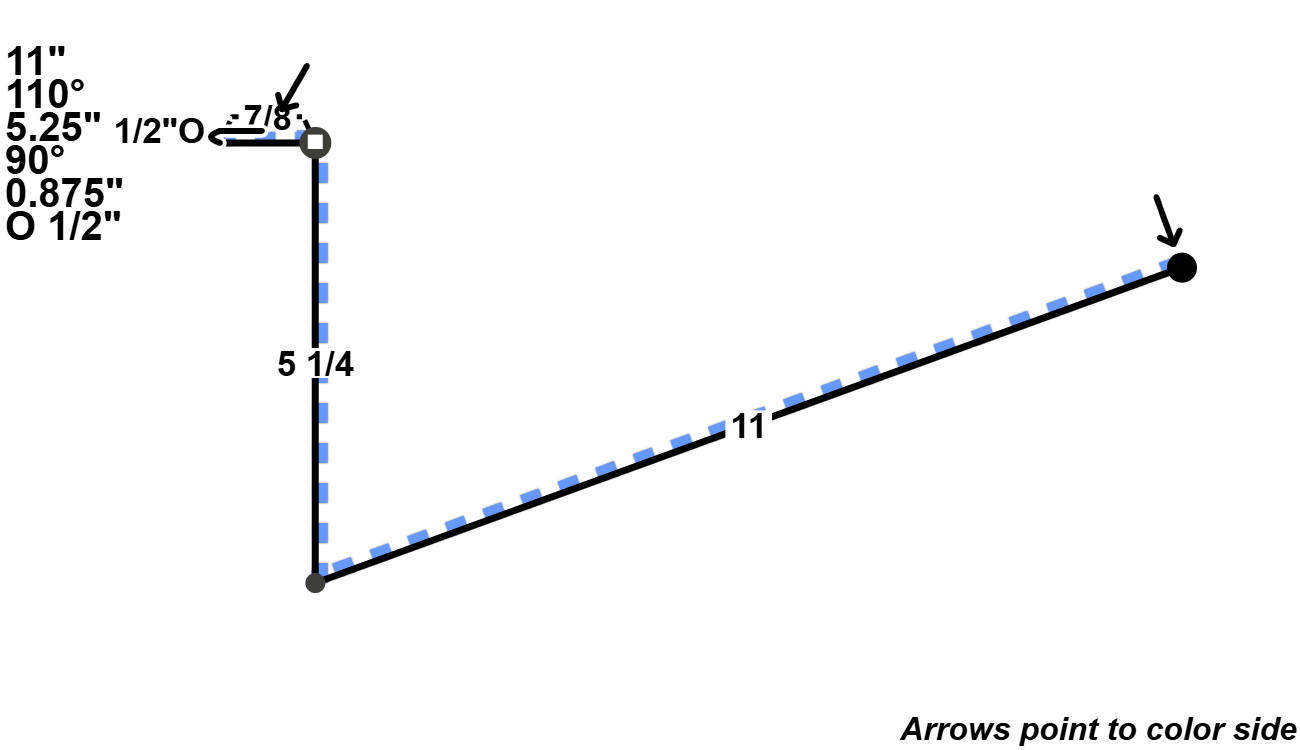

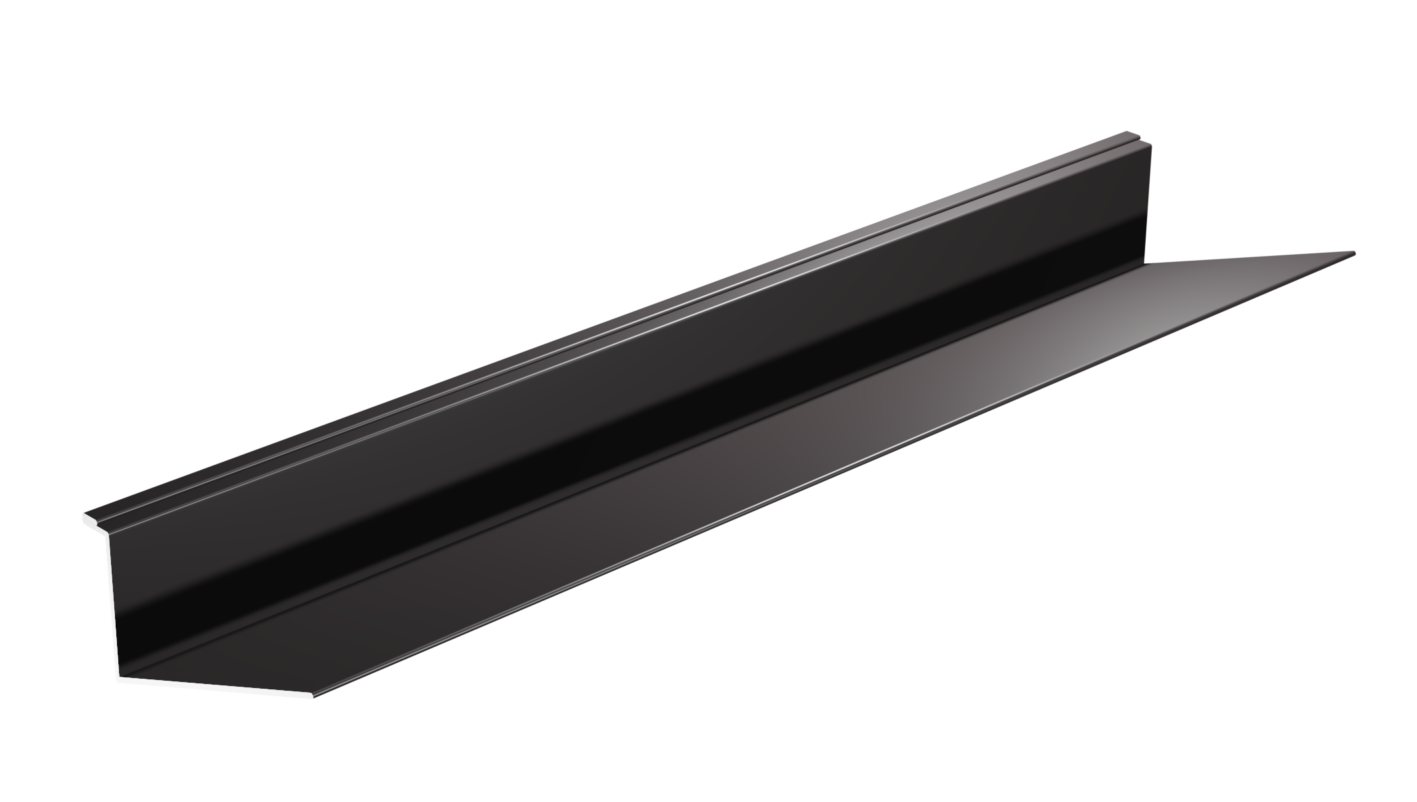

Chimney Top Wall Flashing

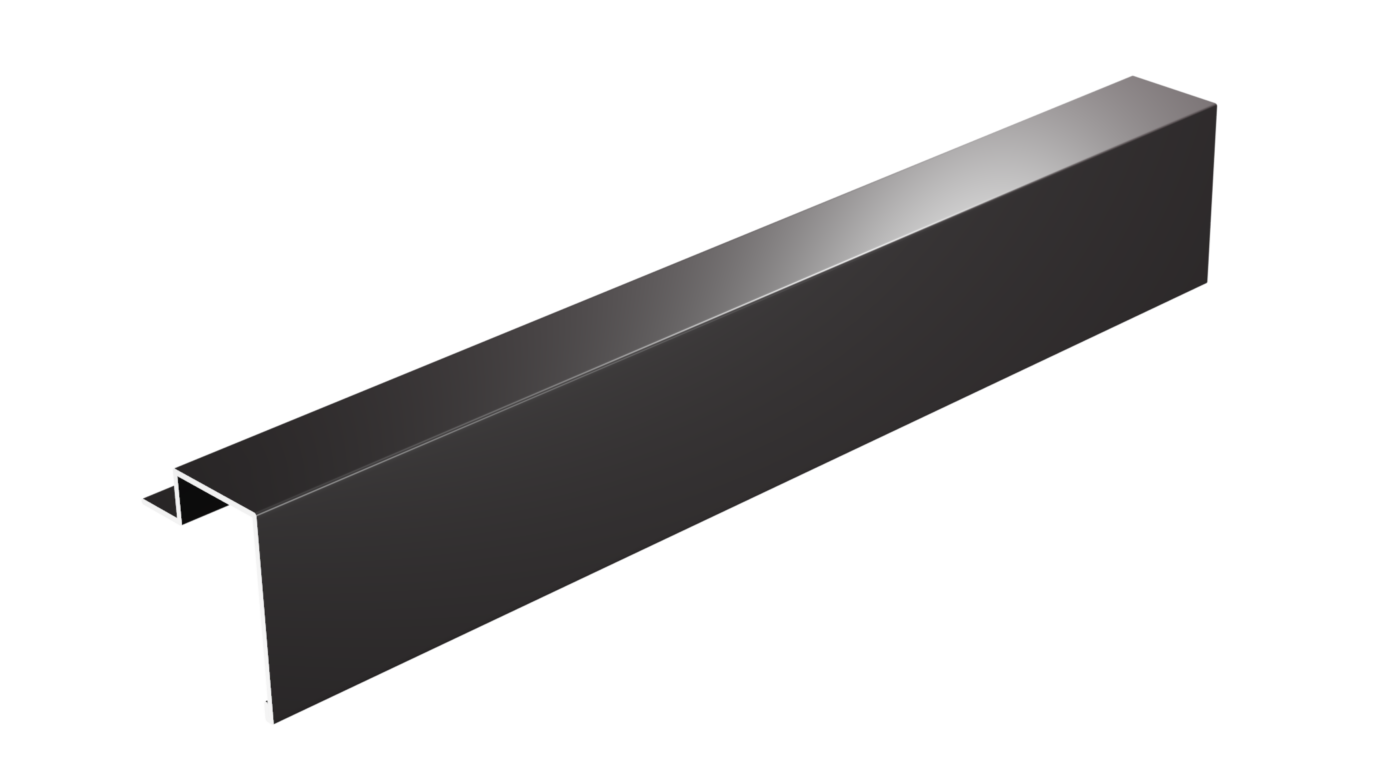

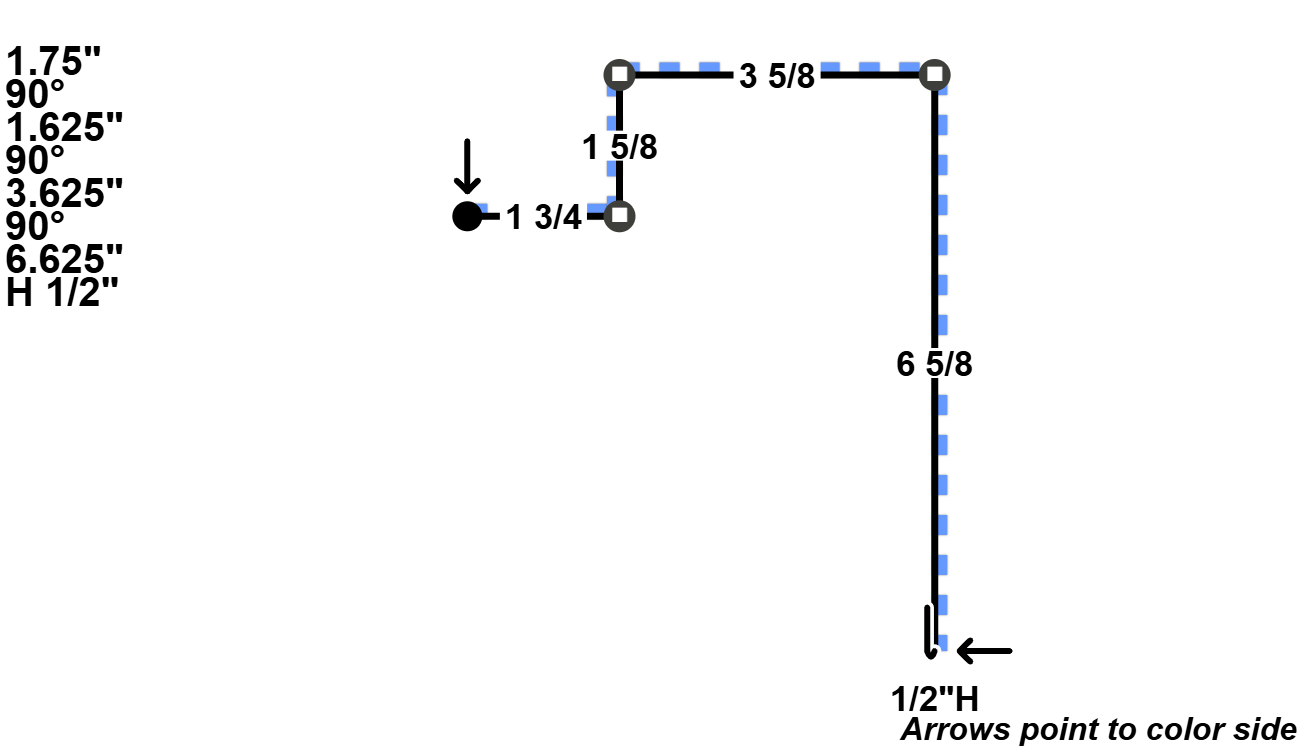

Sliding Door Jam

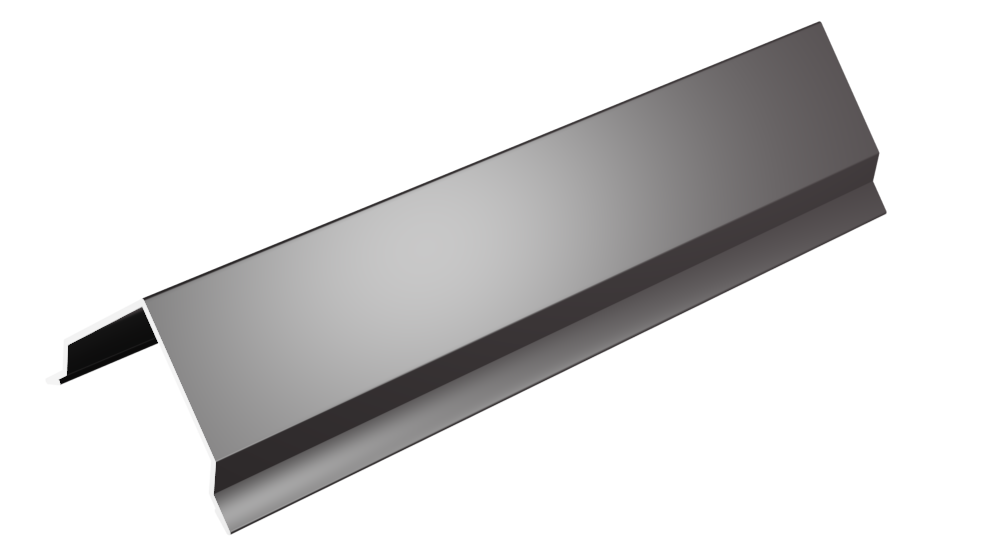

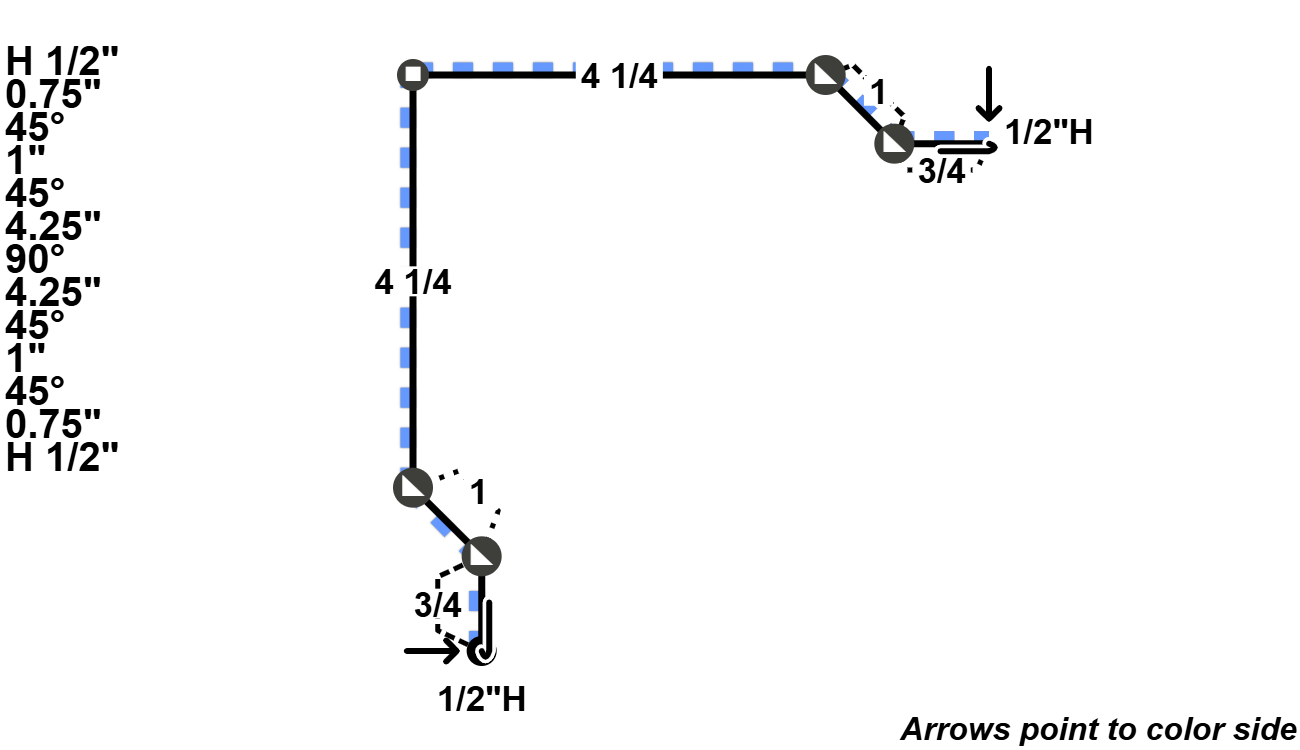

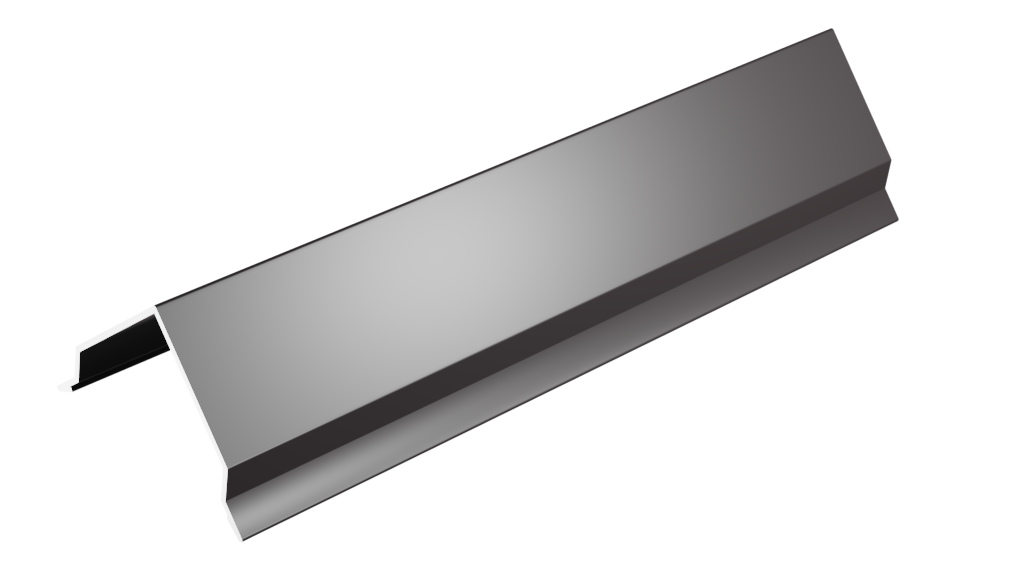

Rake And Corner

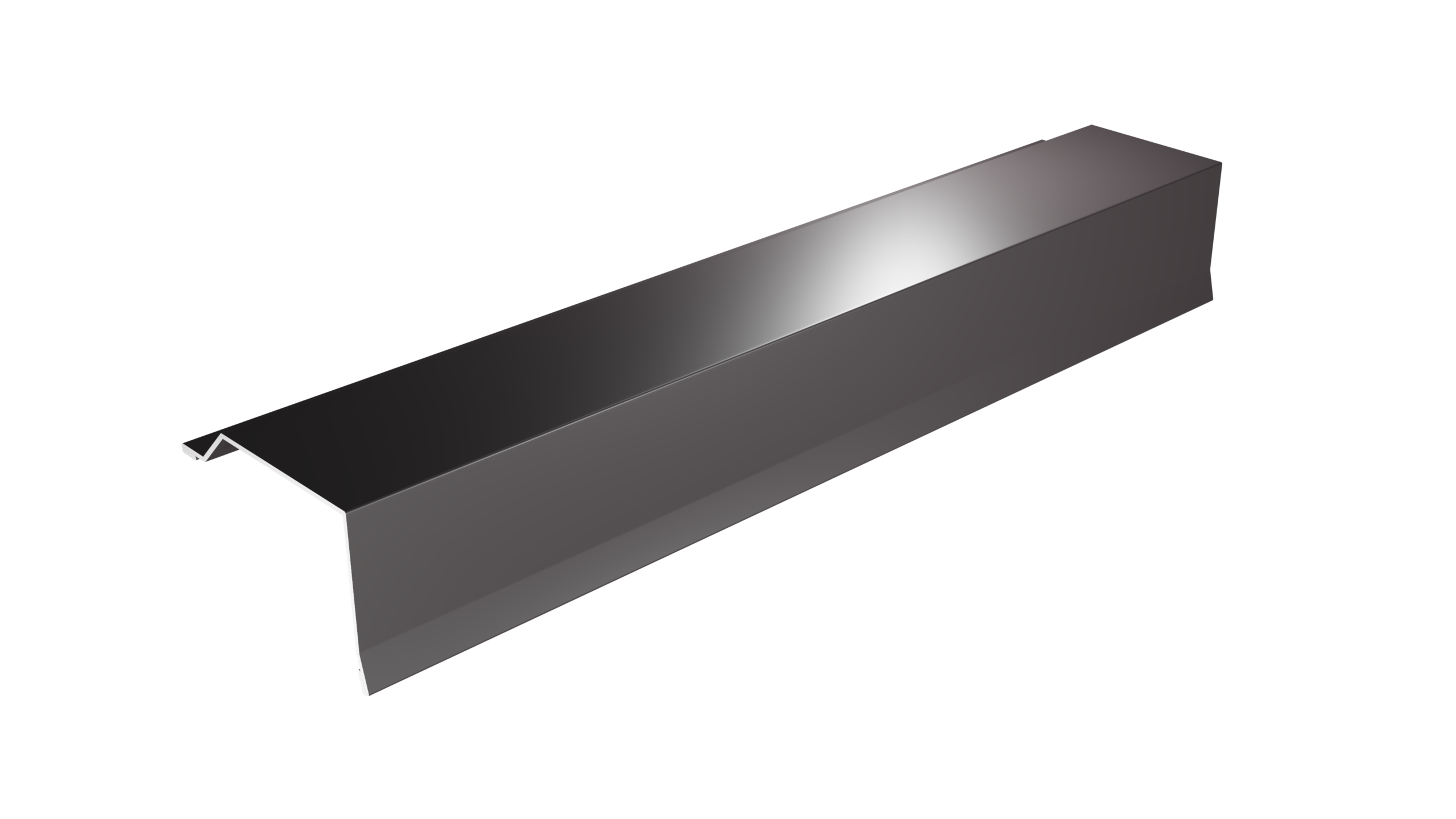

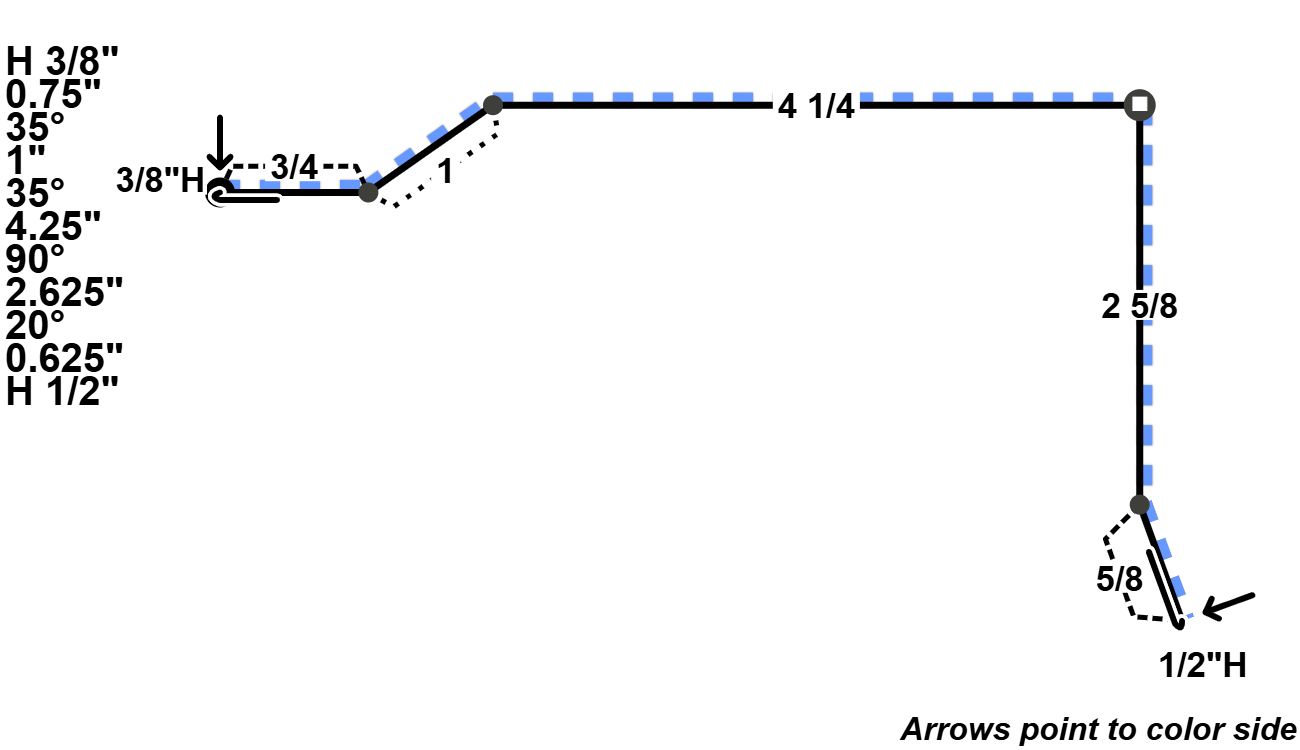

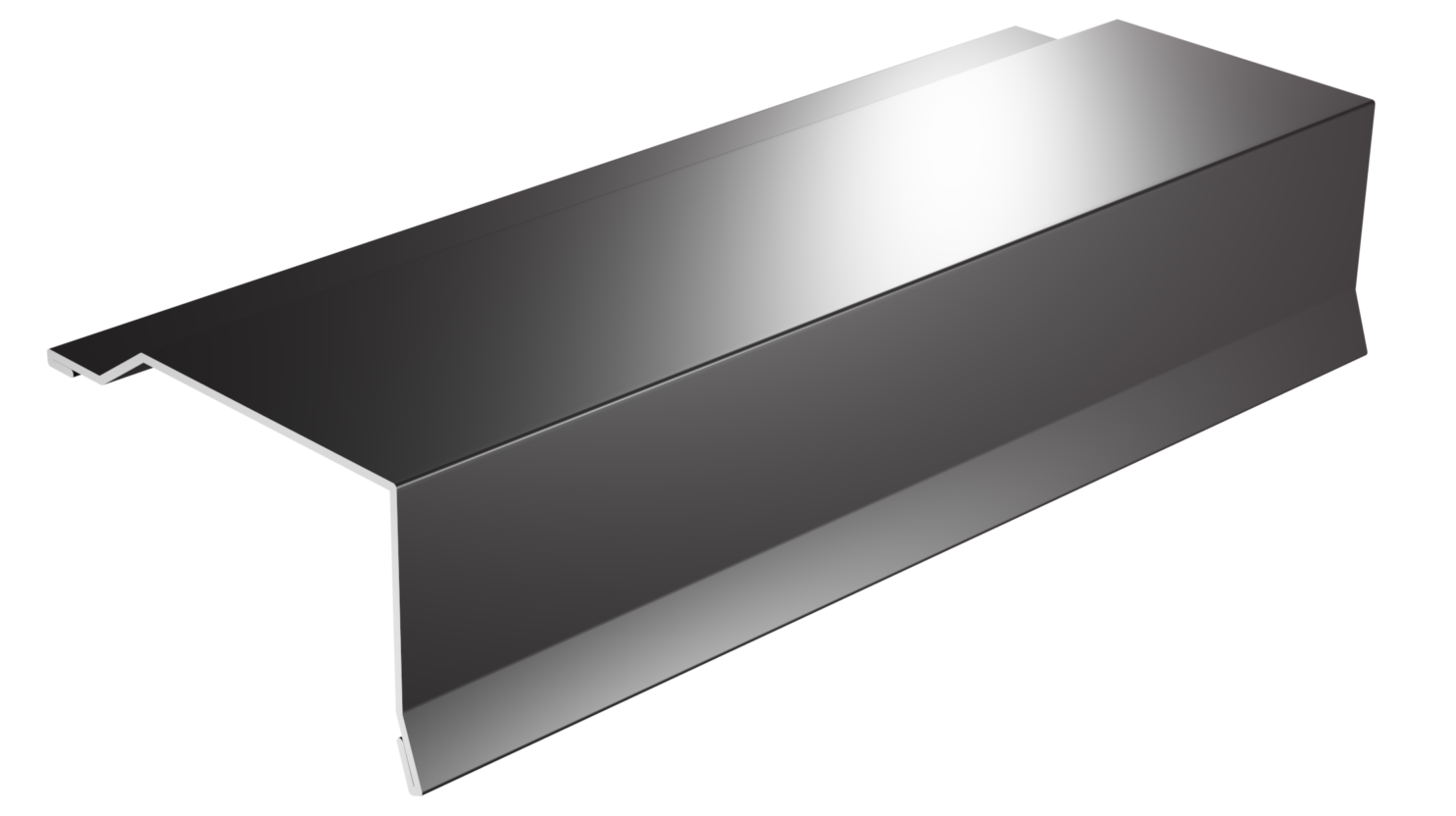

Residential Rake

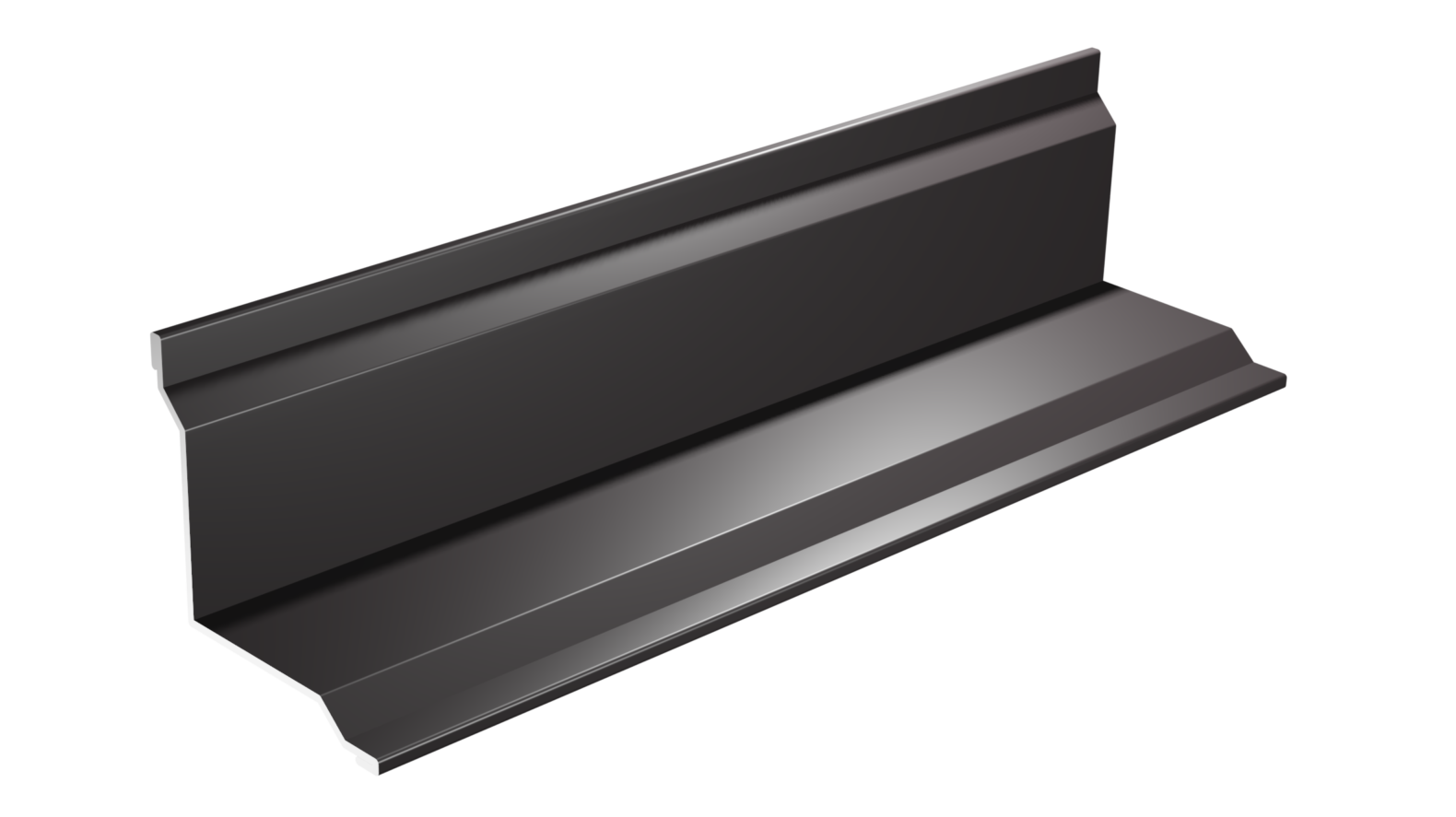

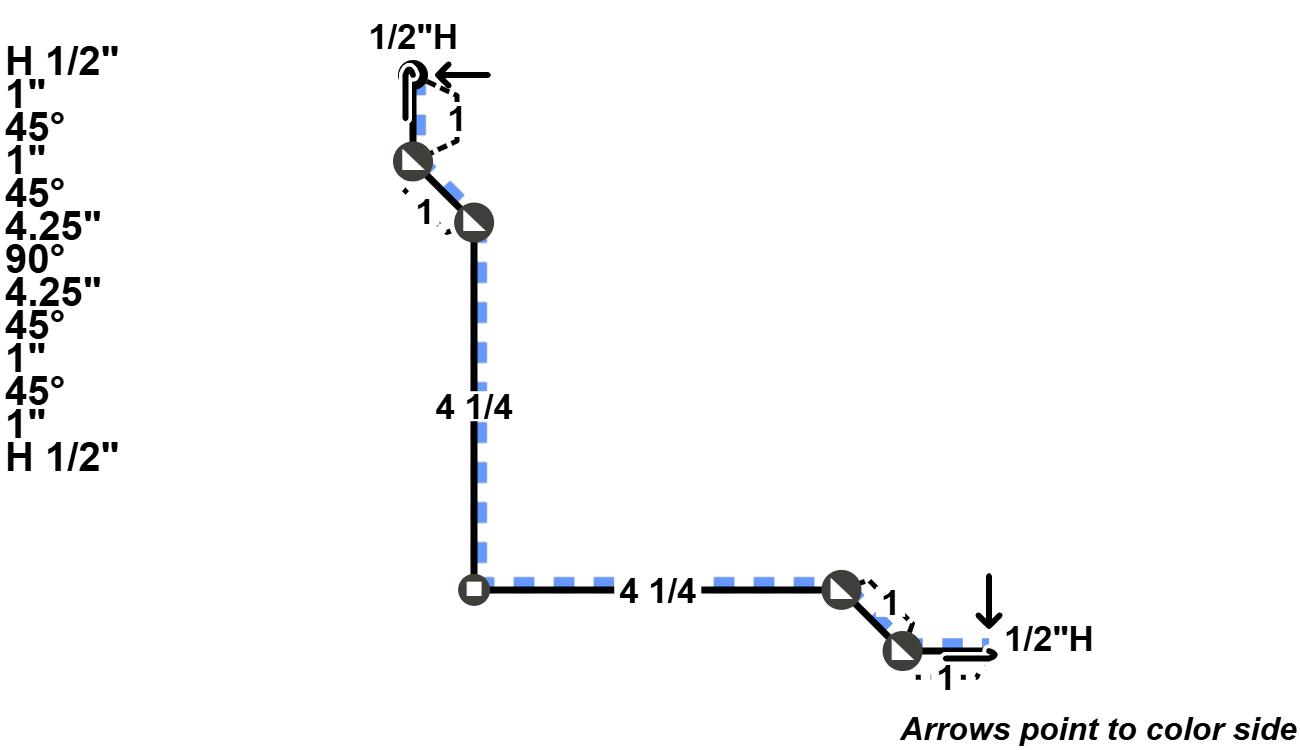

Inside Corner

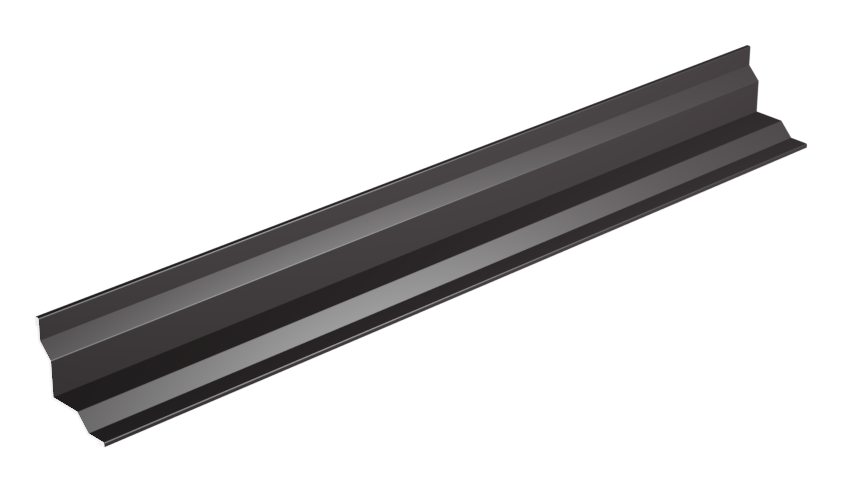

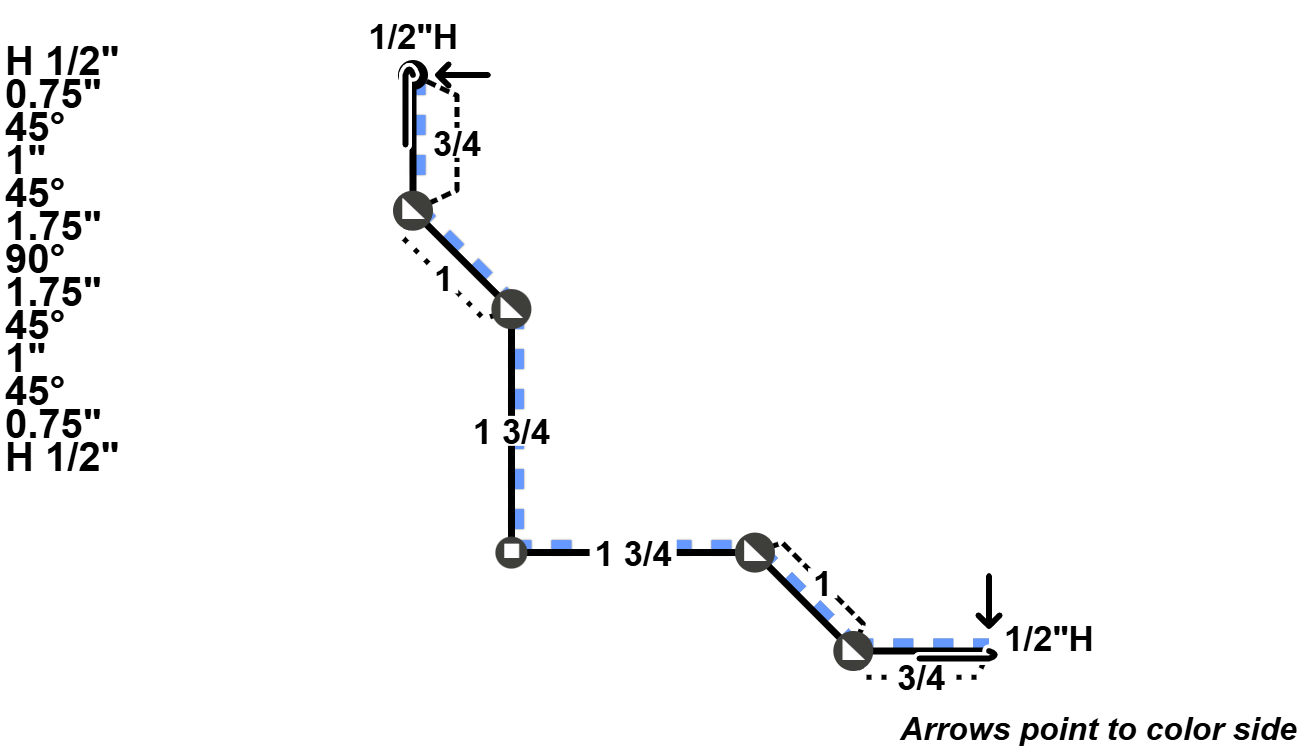

Mini Inside Corner

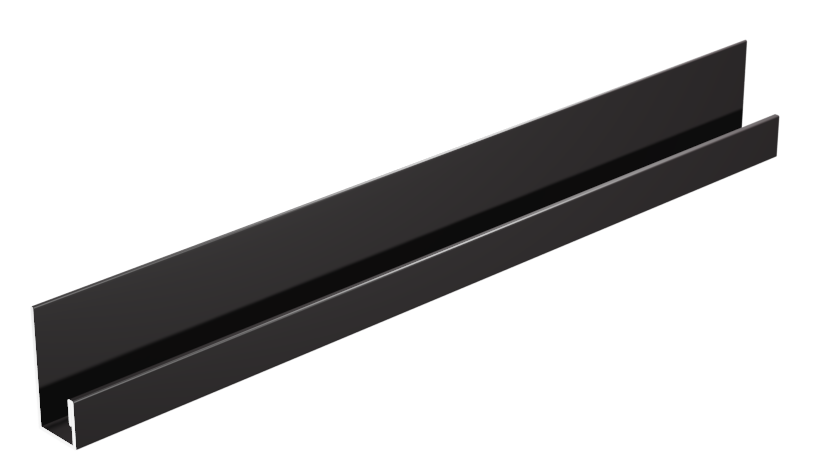

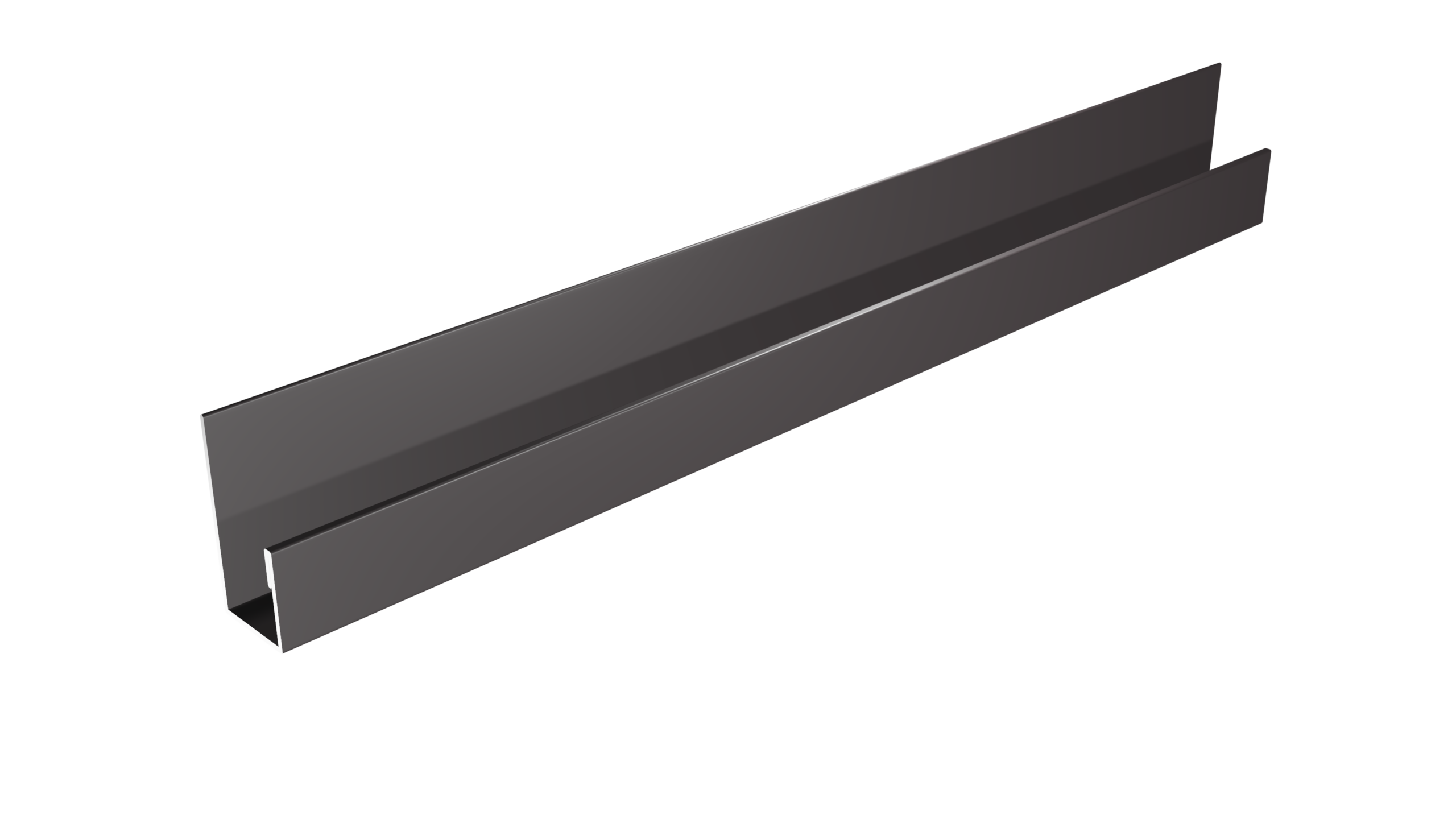

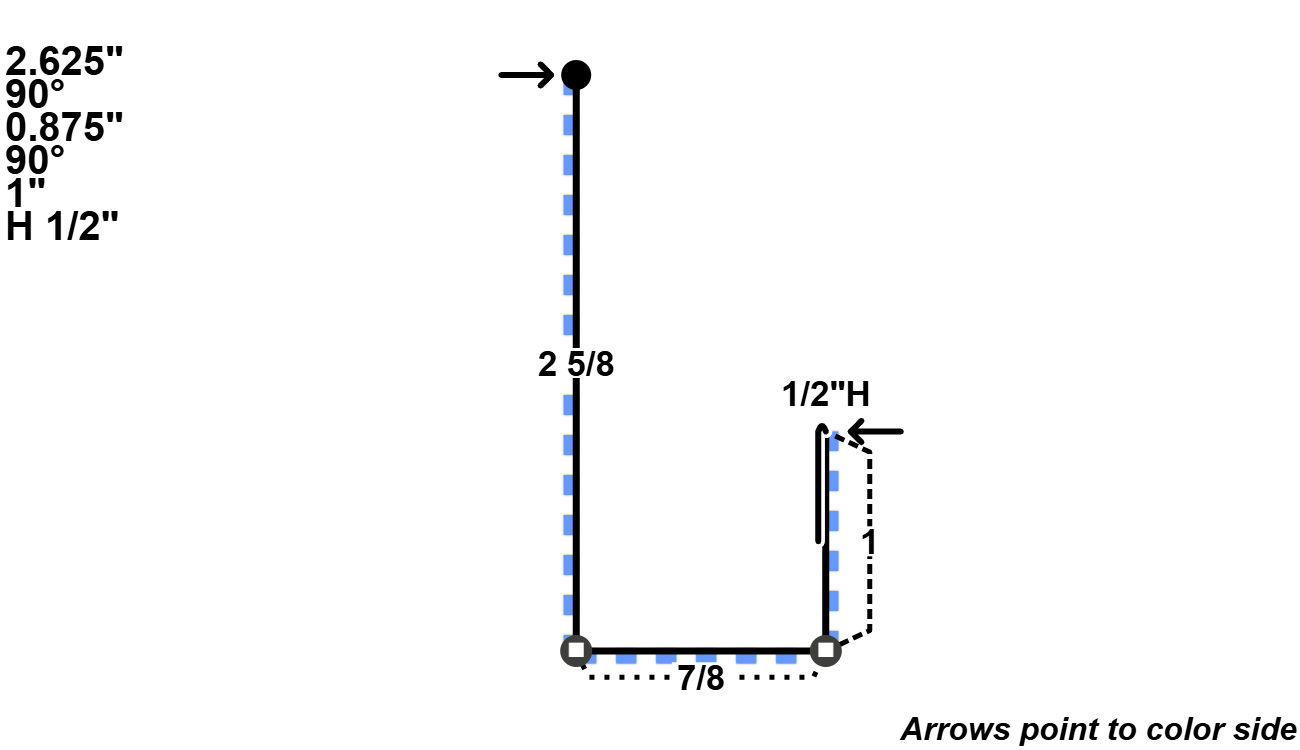

"J" Channel

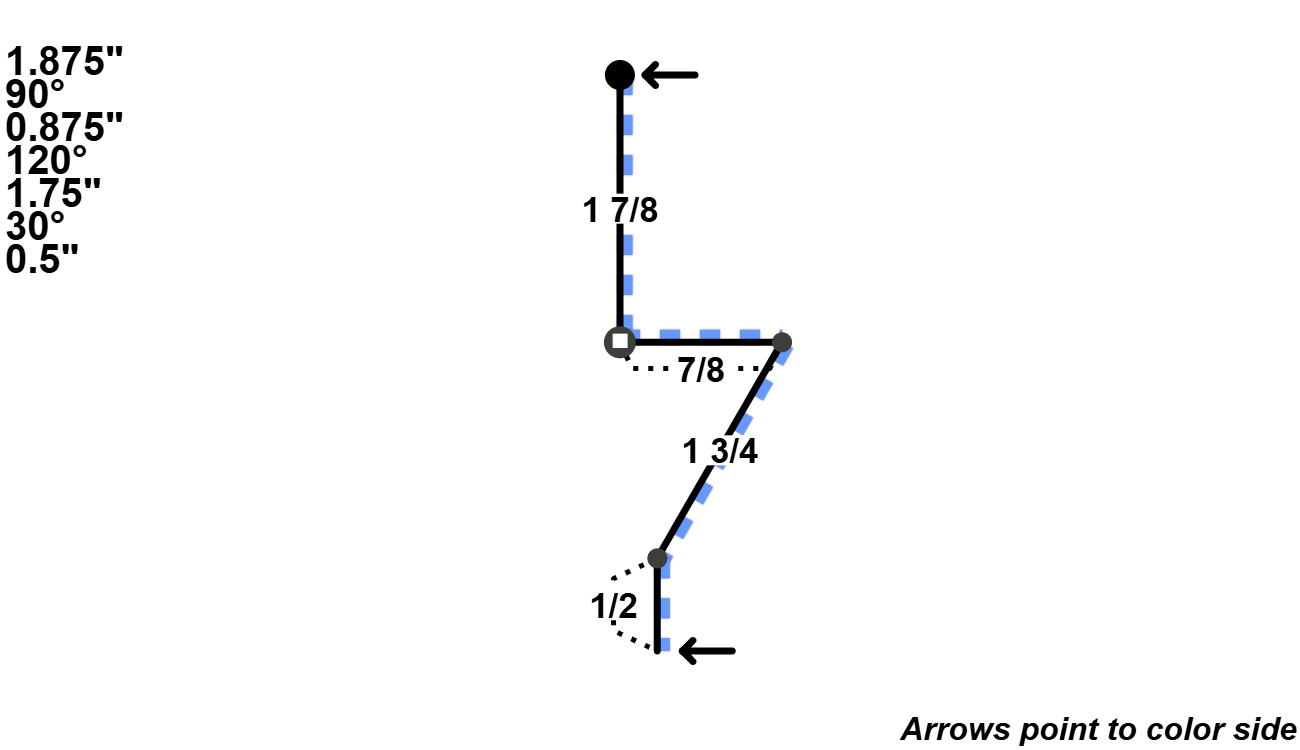

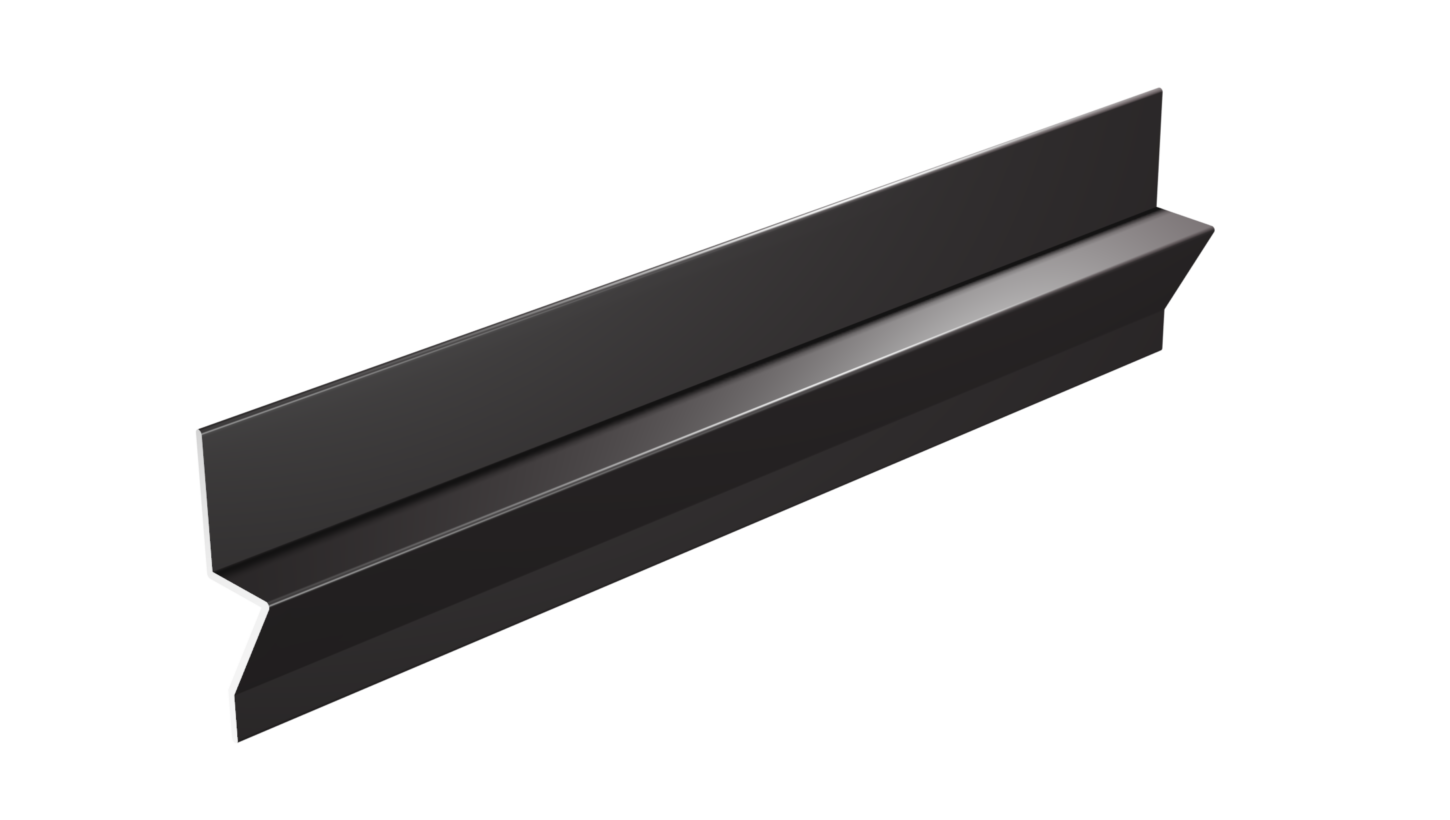

Rat Guard

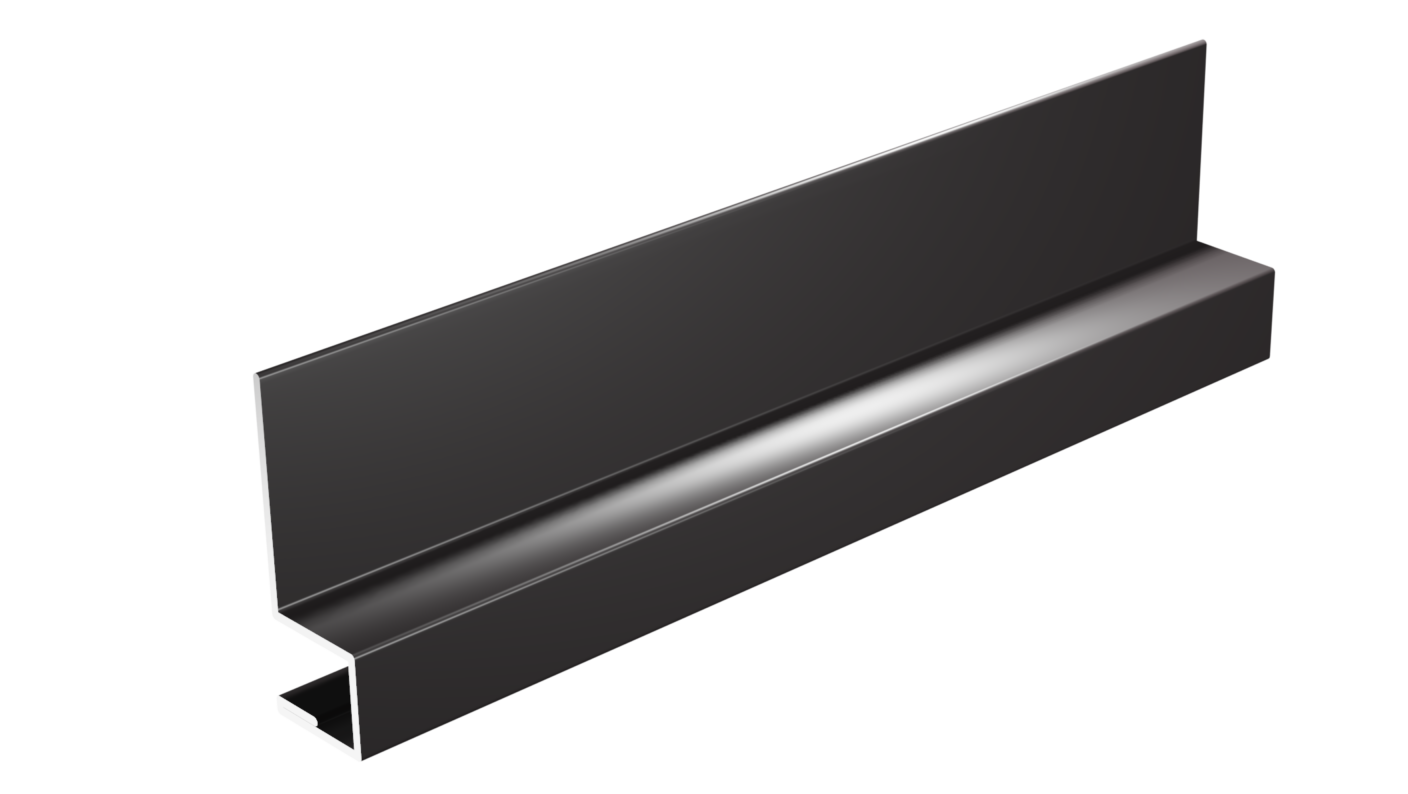

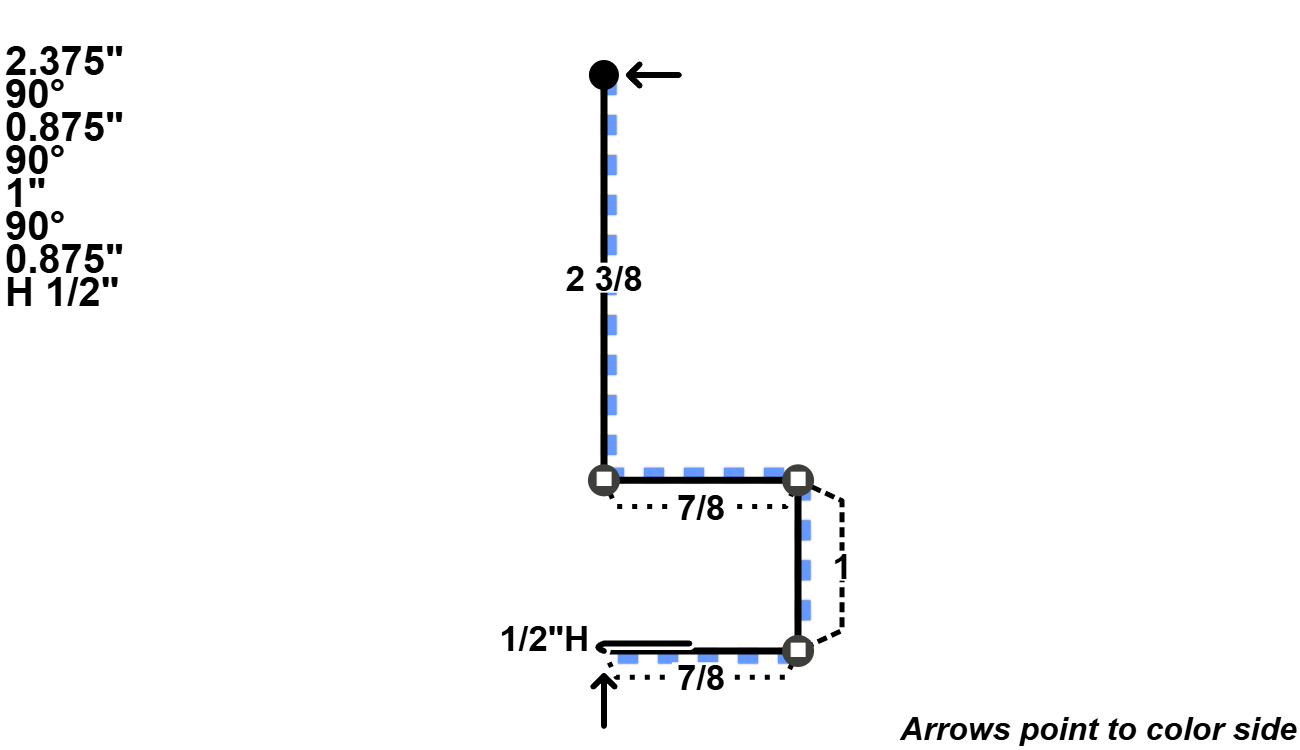

Square Base

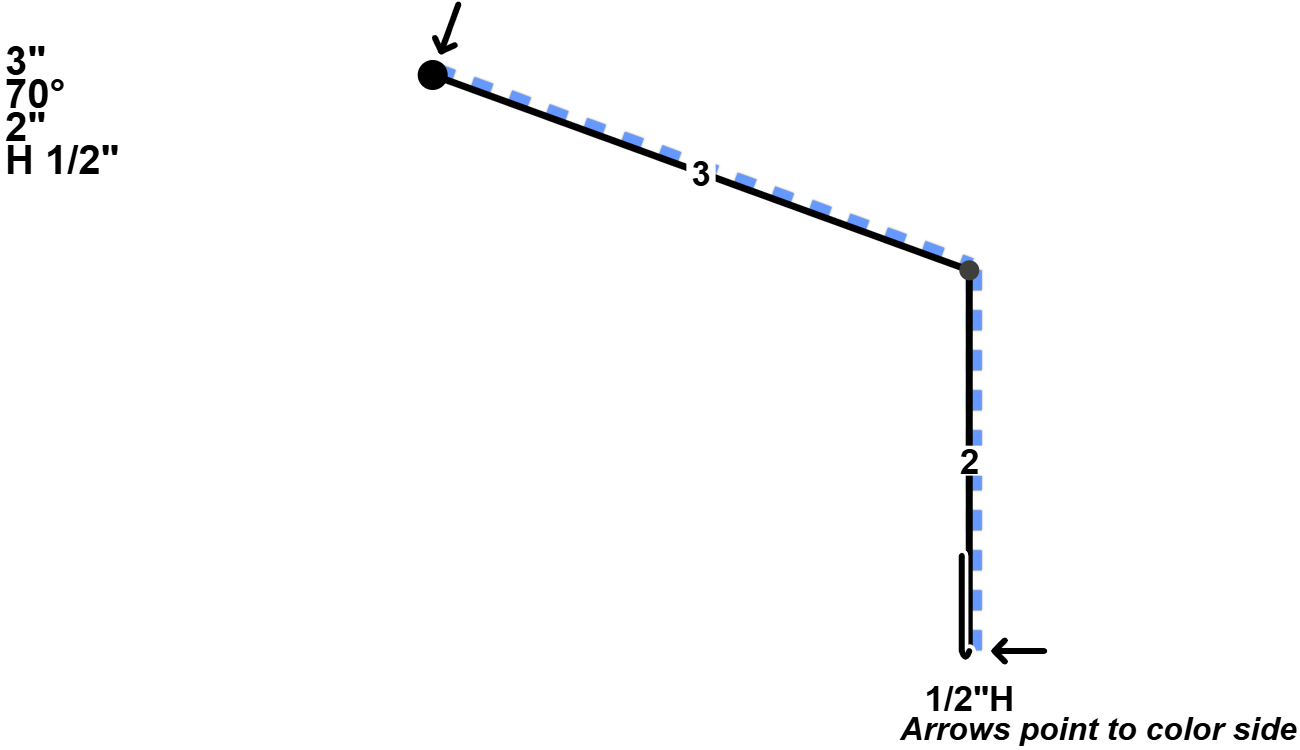

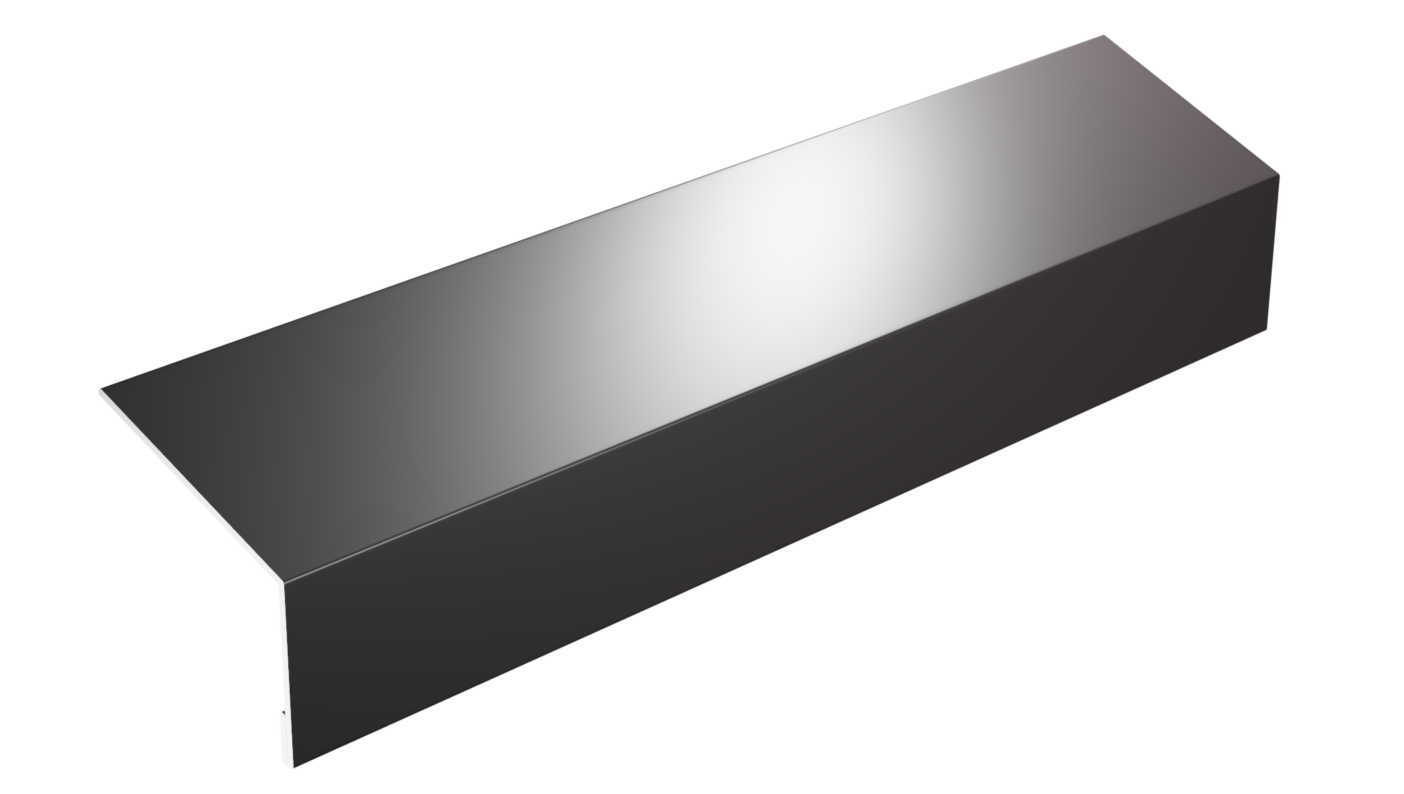

Drip Edge

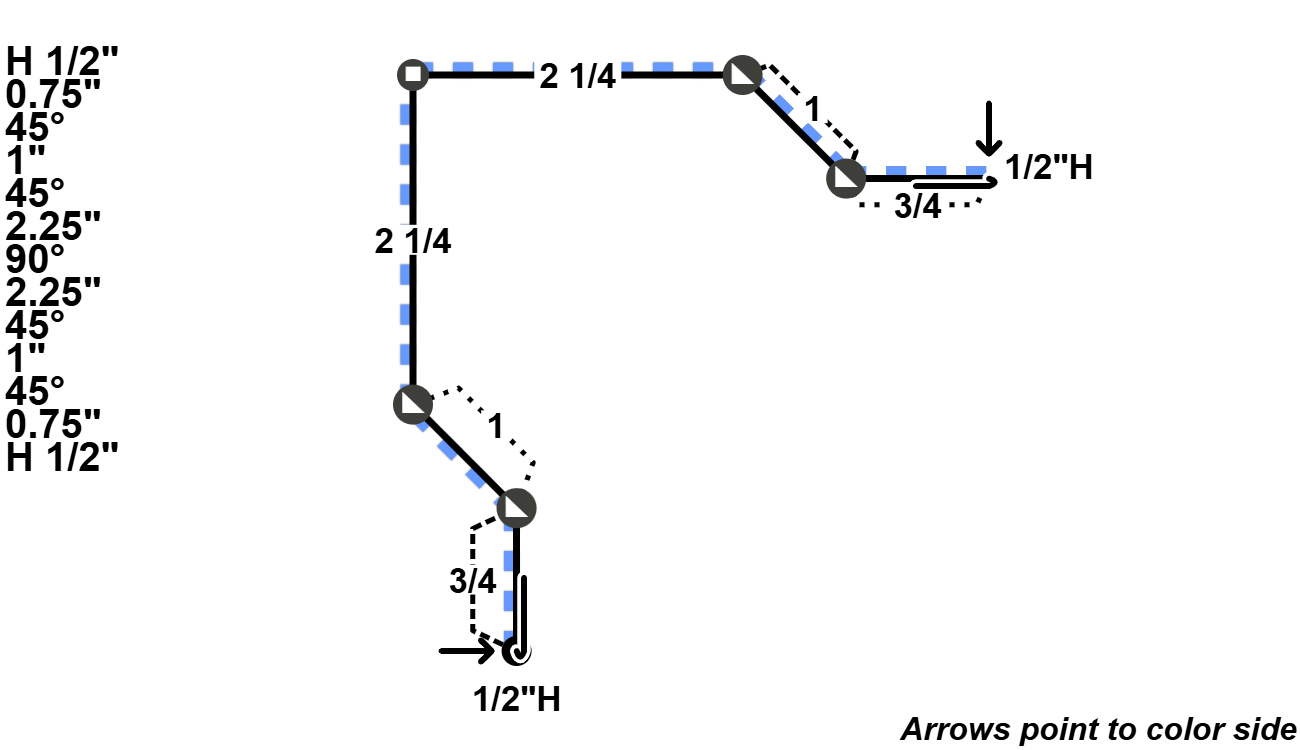

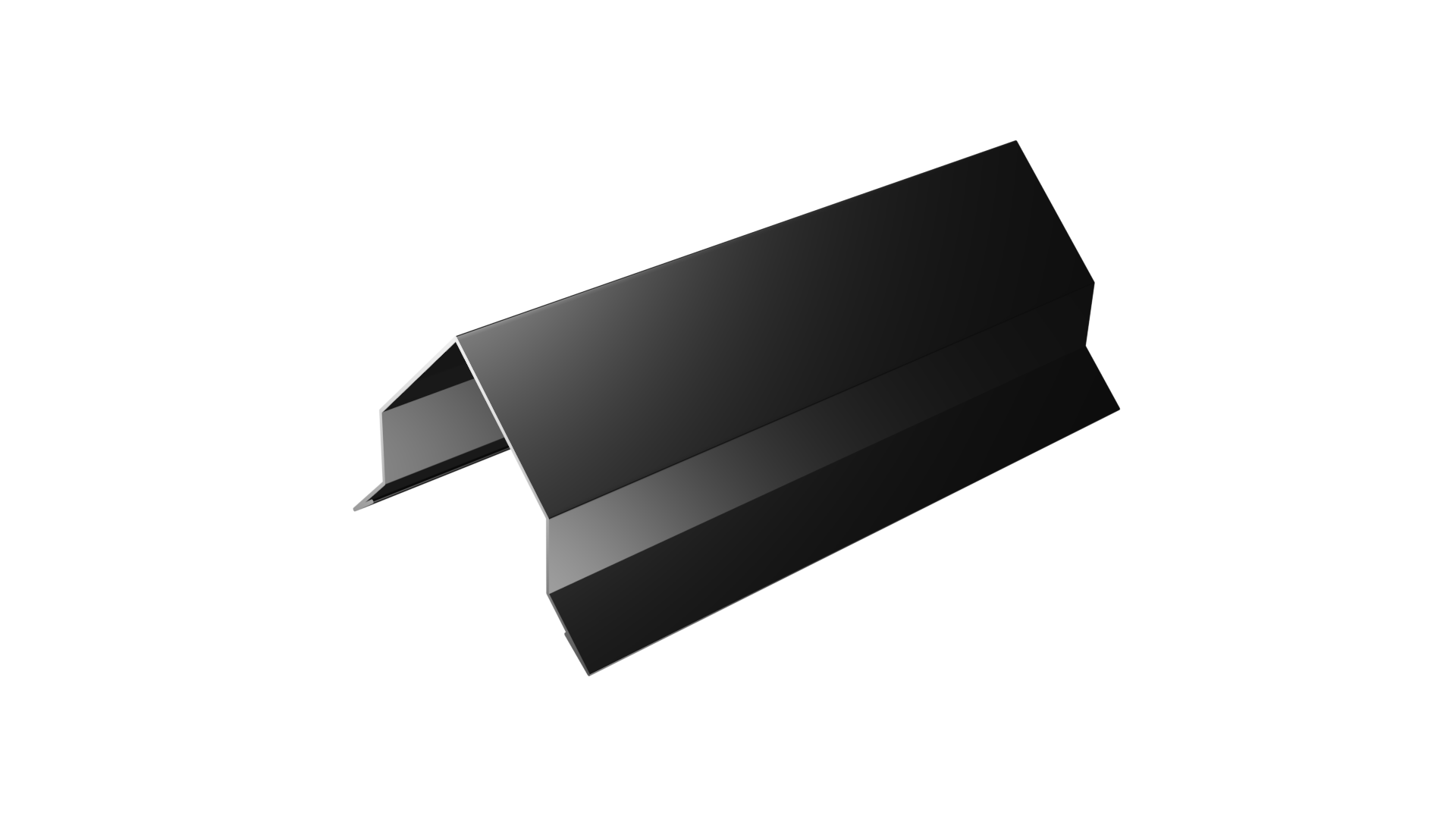

Mini Corner

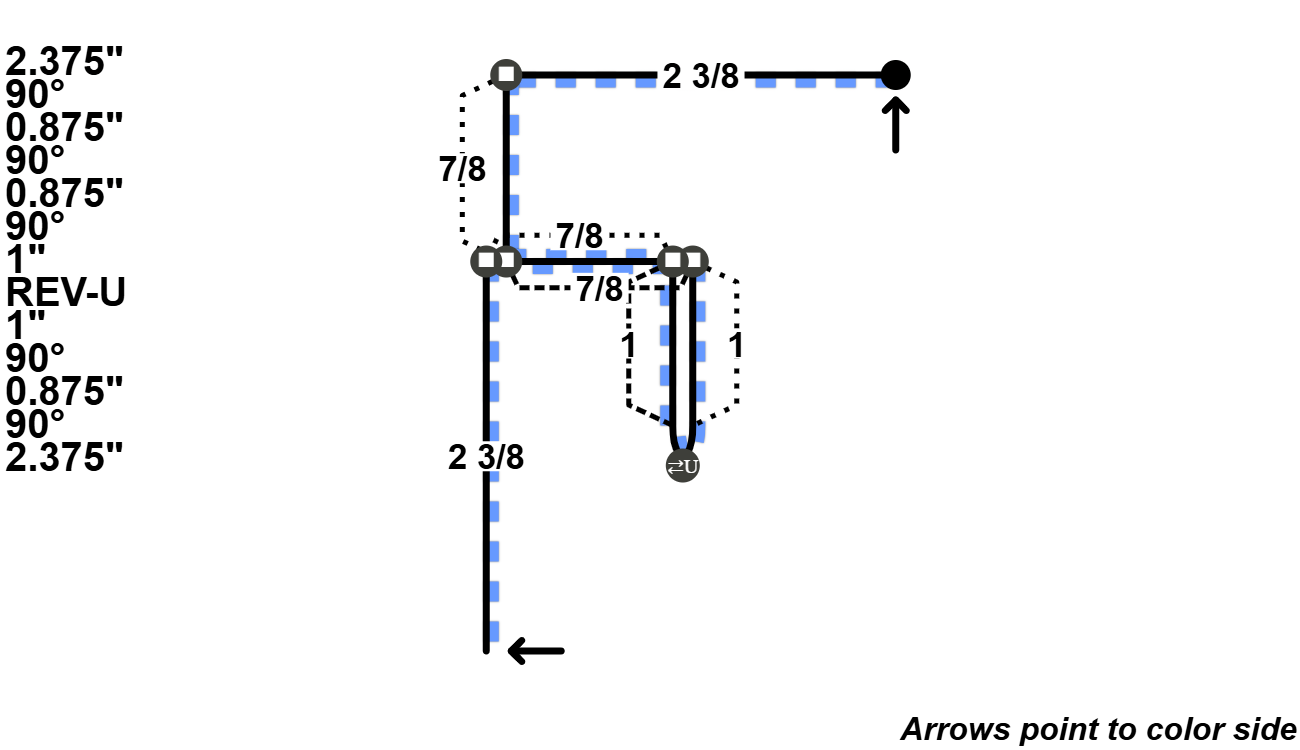

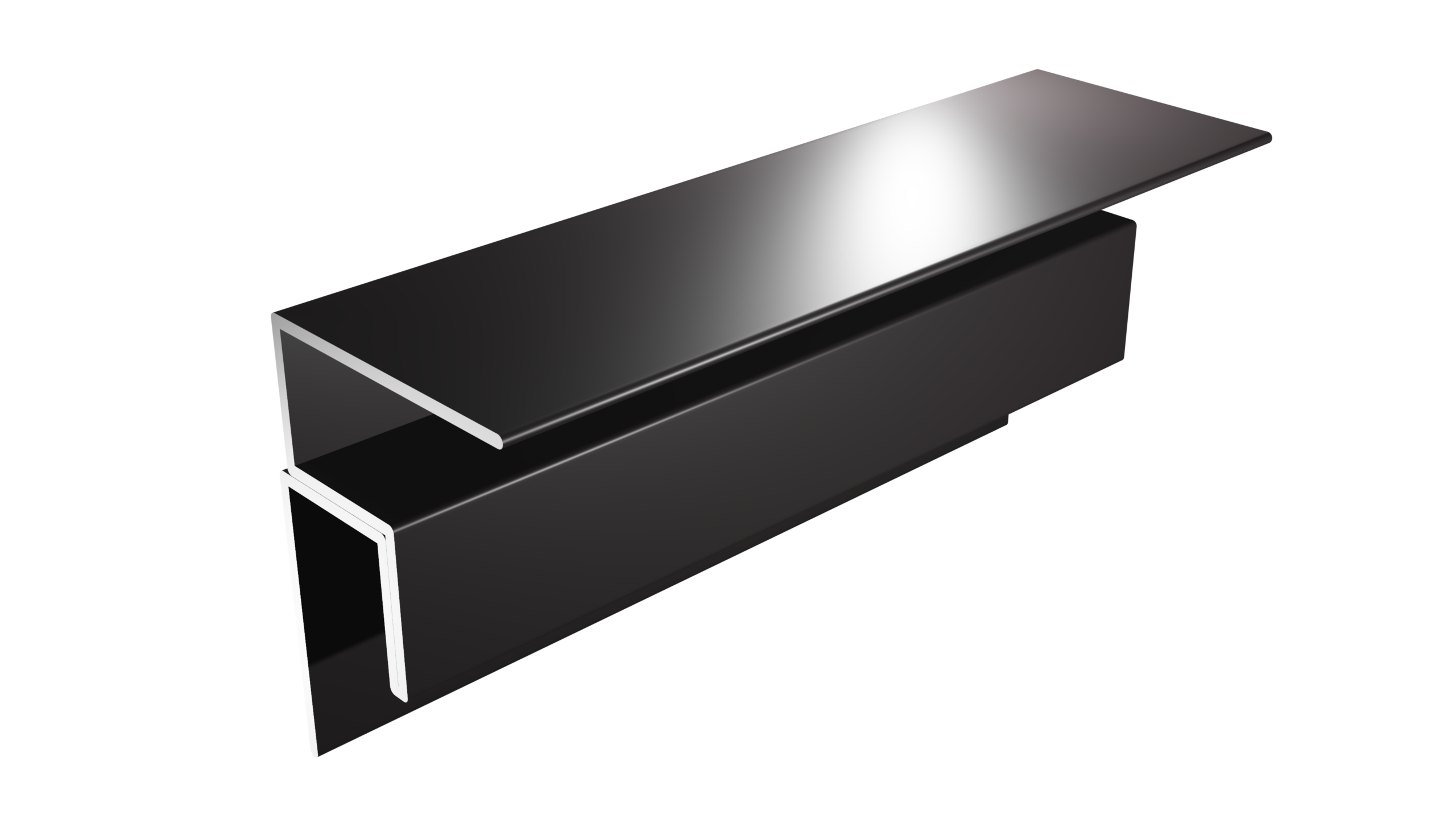

"F" & "J" Channel

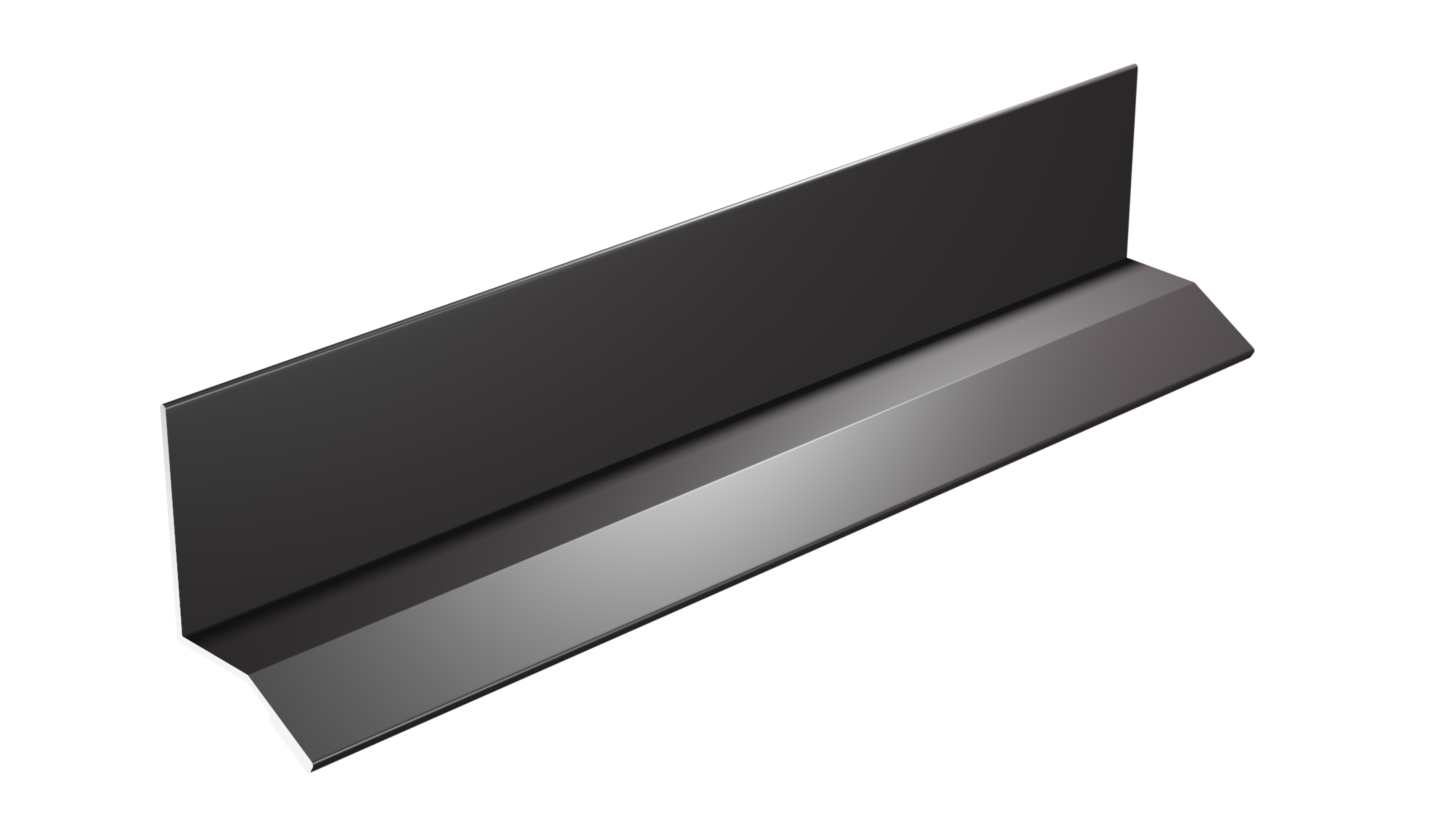

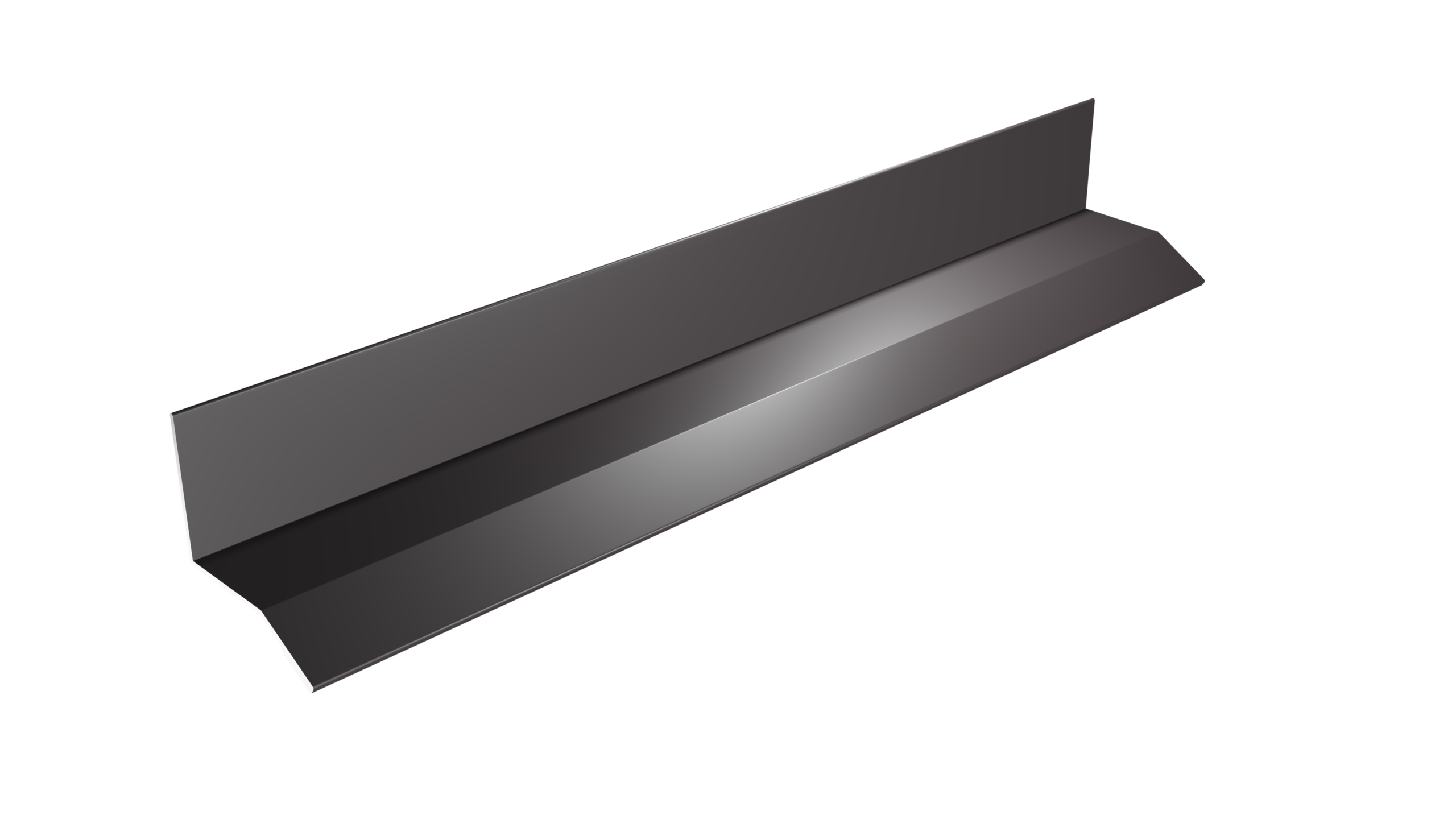

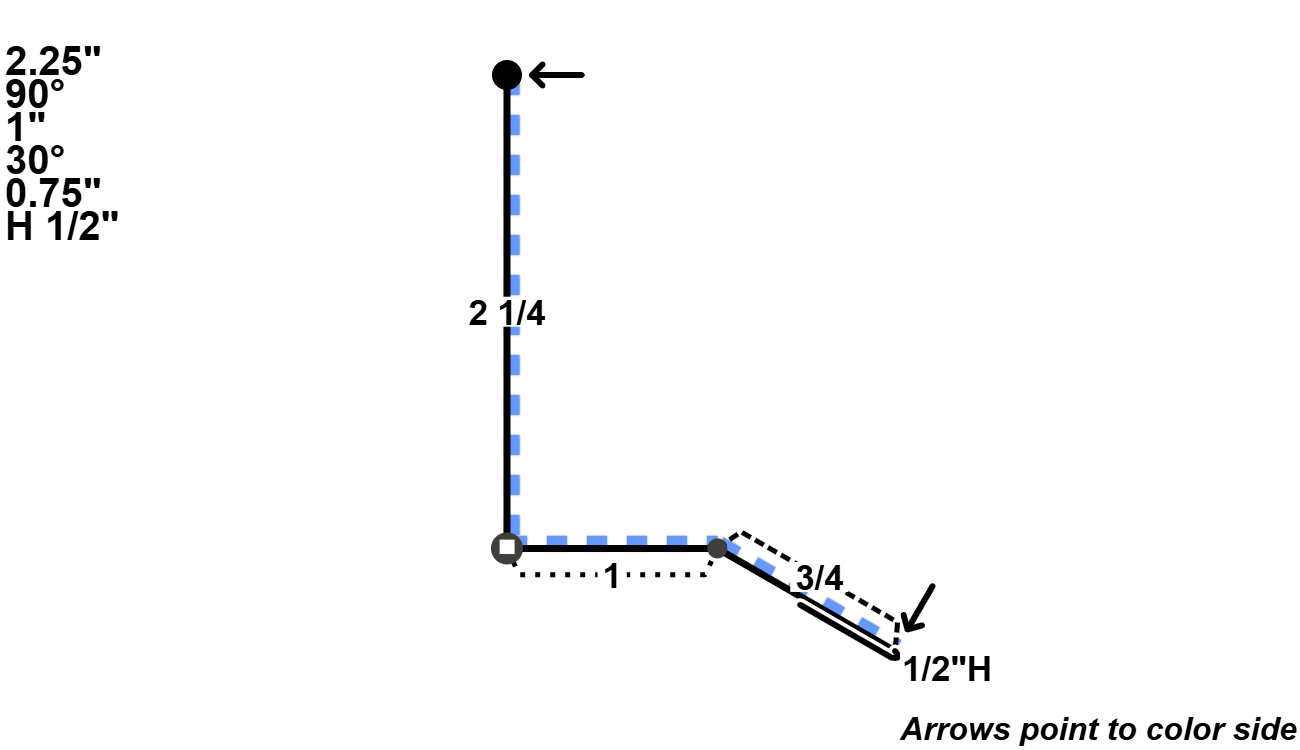

Window Cap

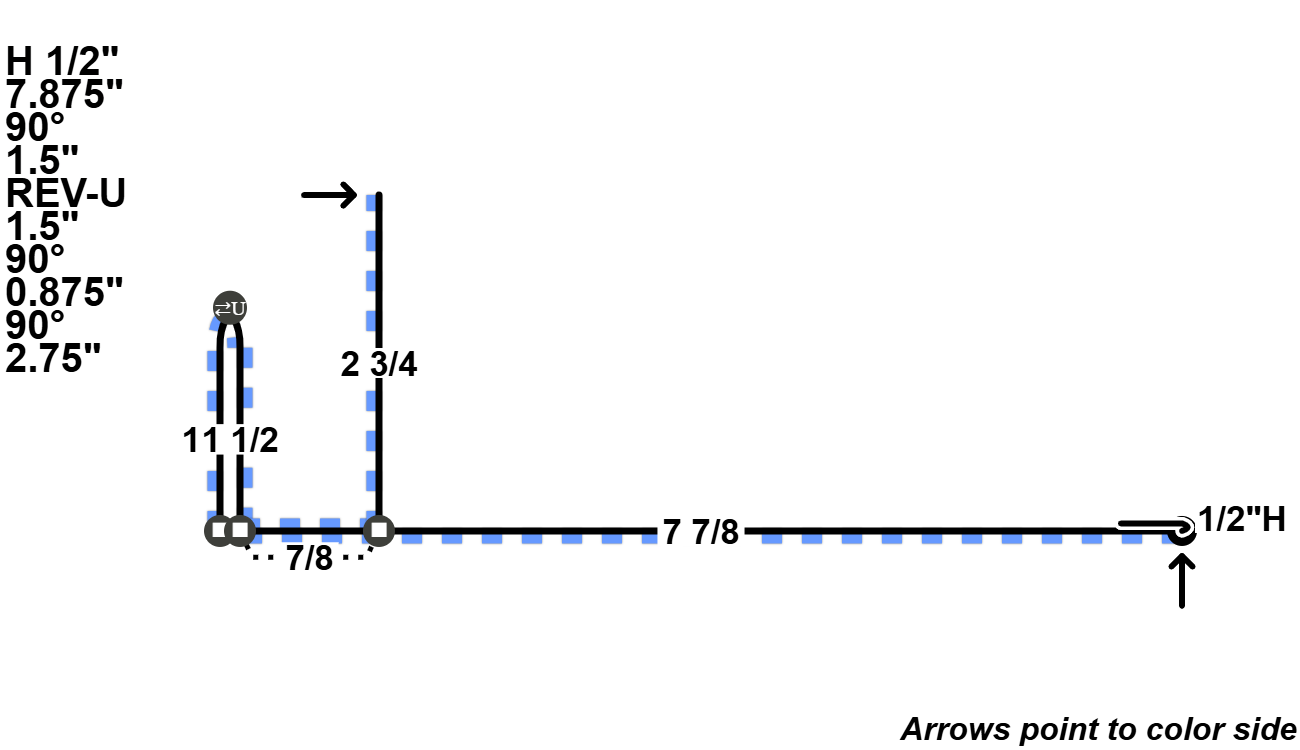

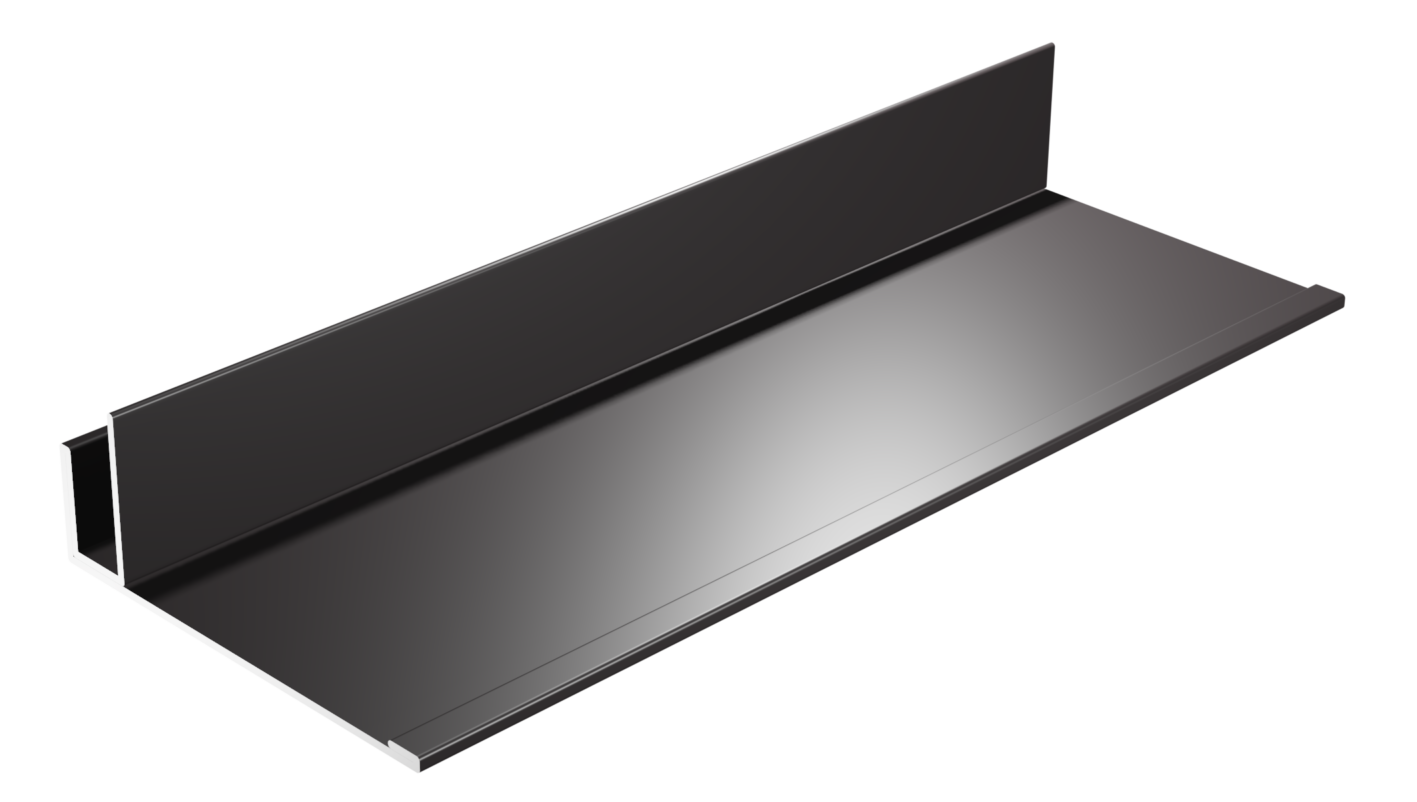

Overhead Door

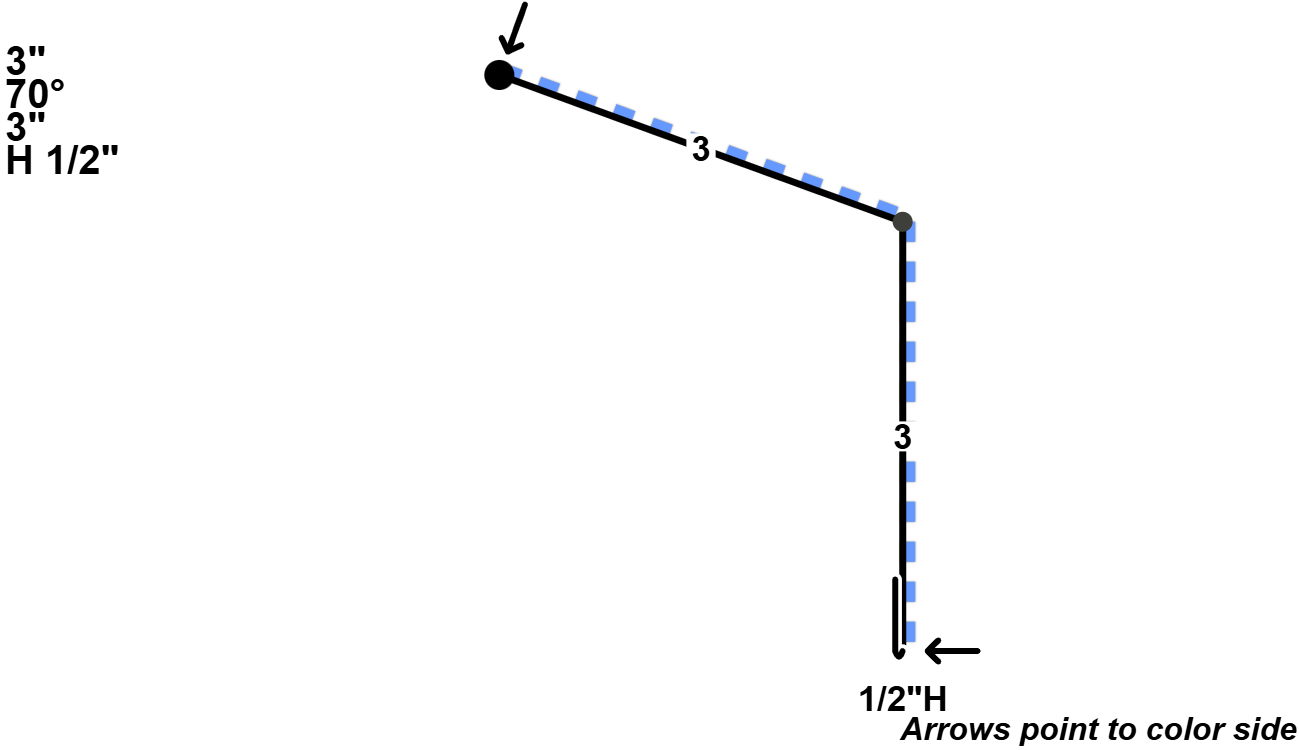

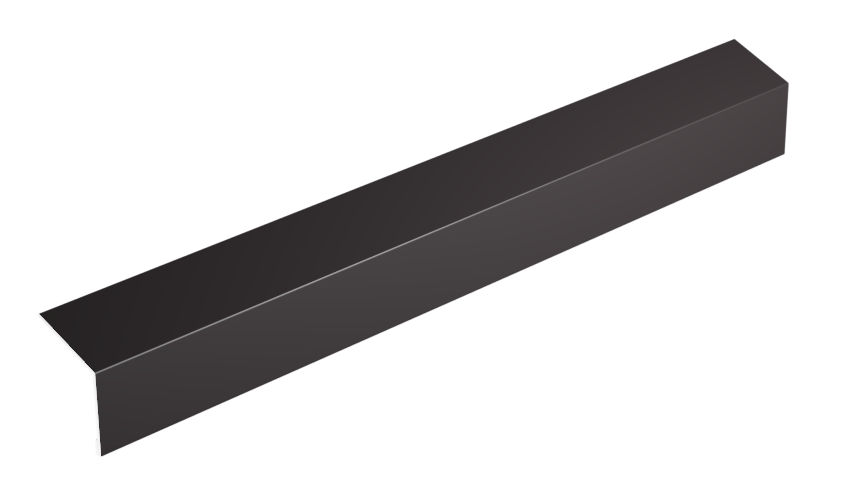

Eave

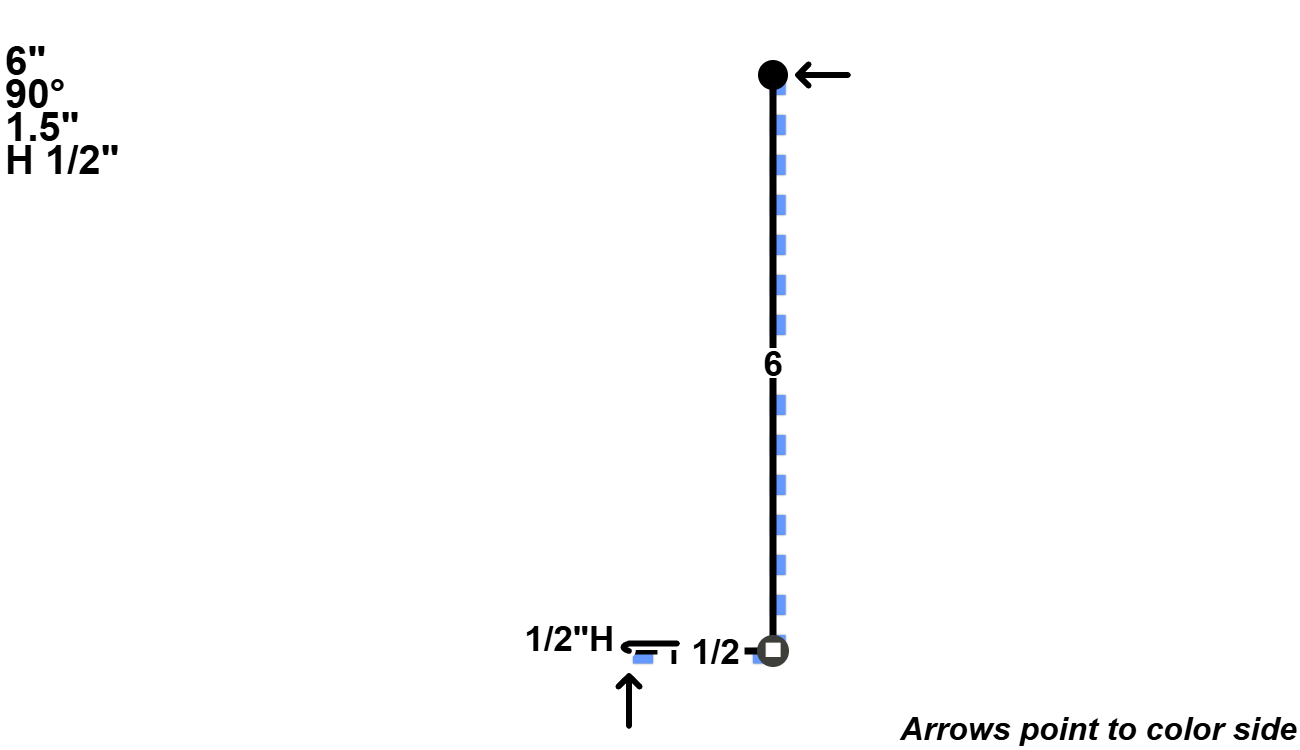

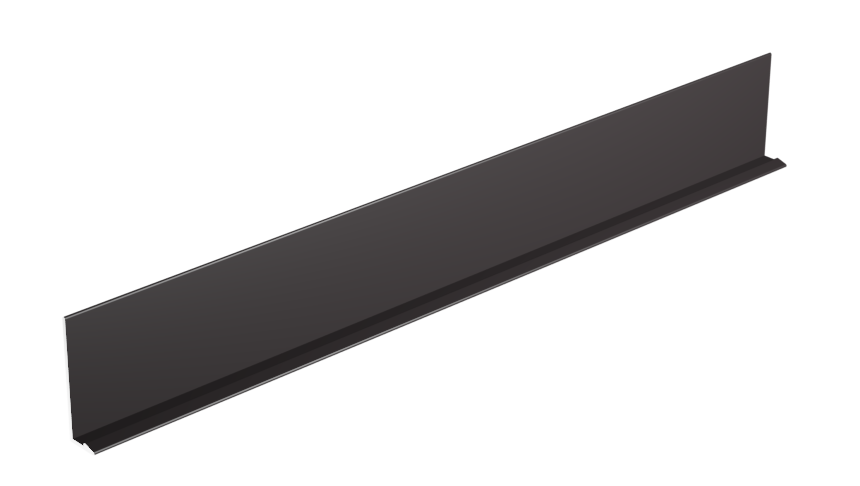

6" Facia

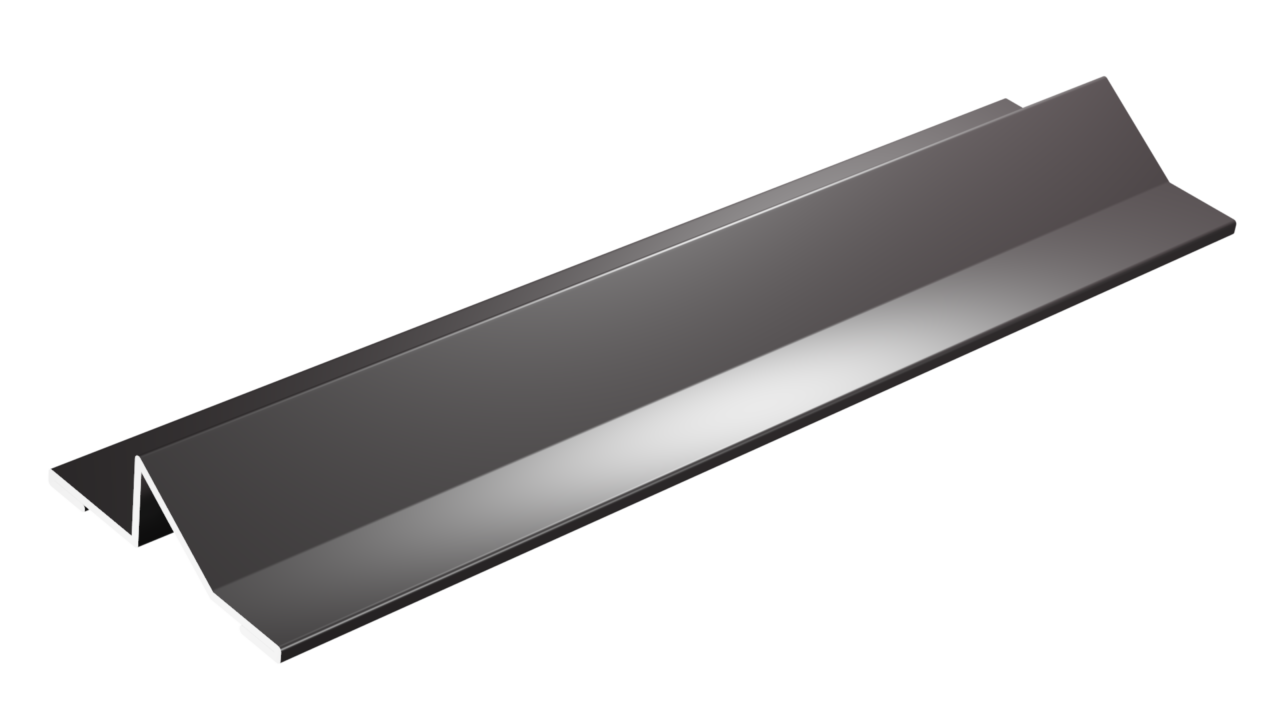

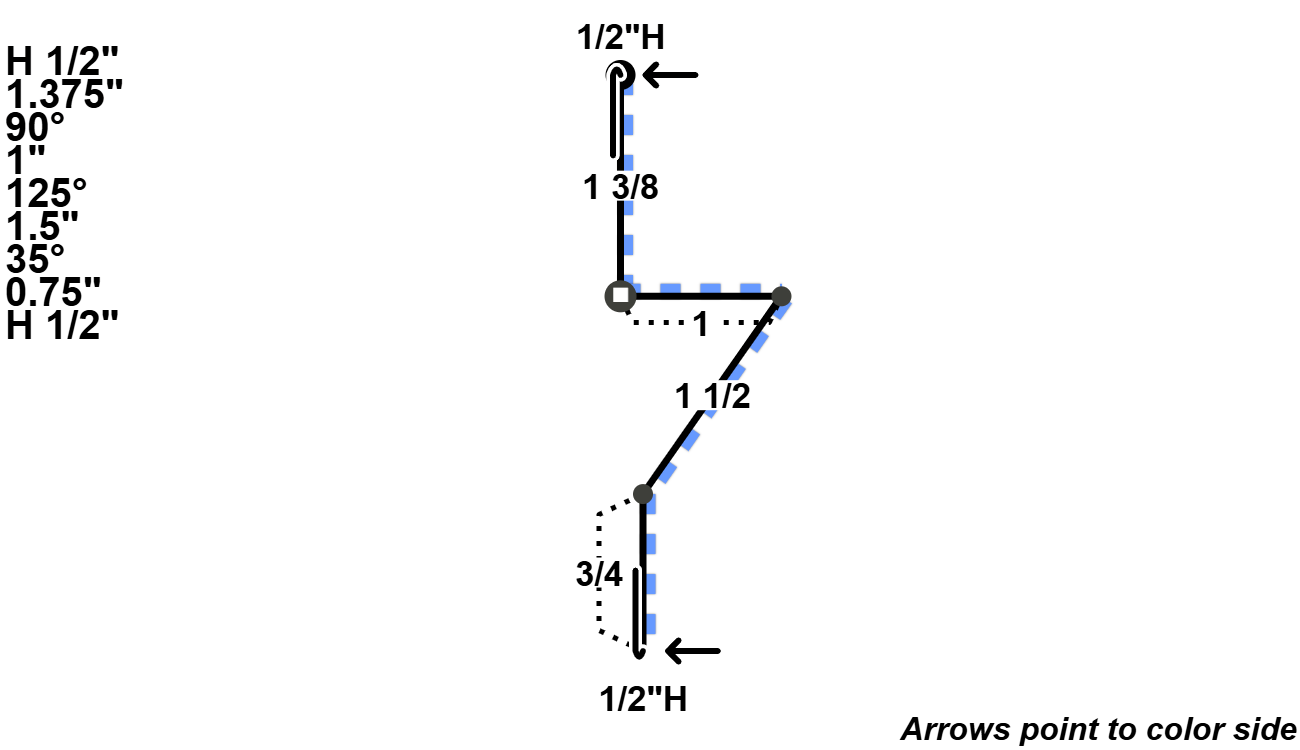

Ice Guard

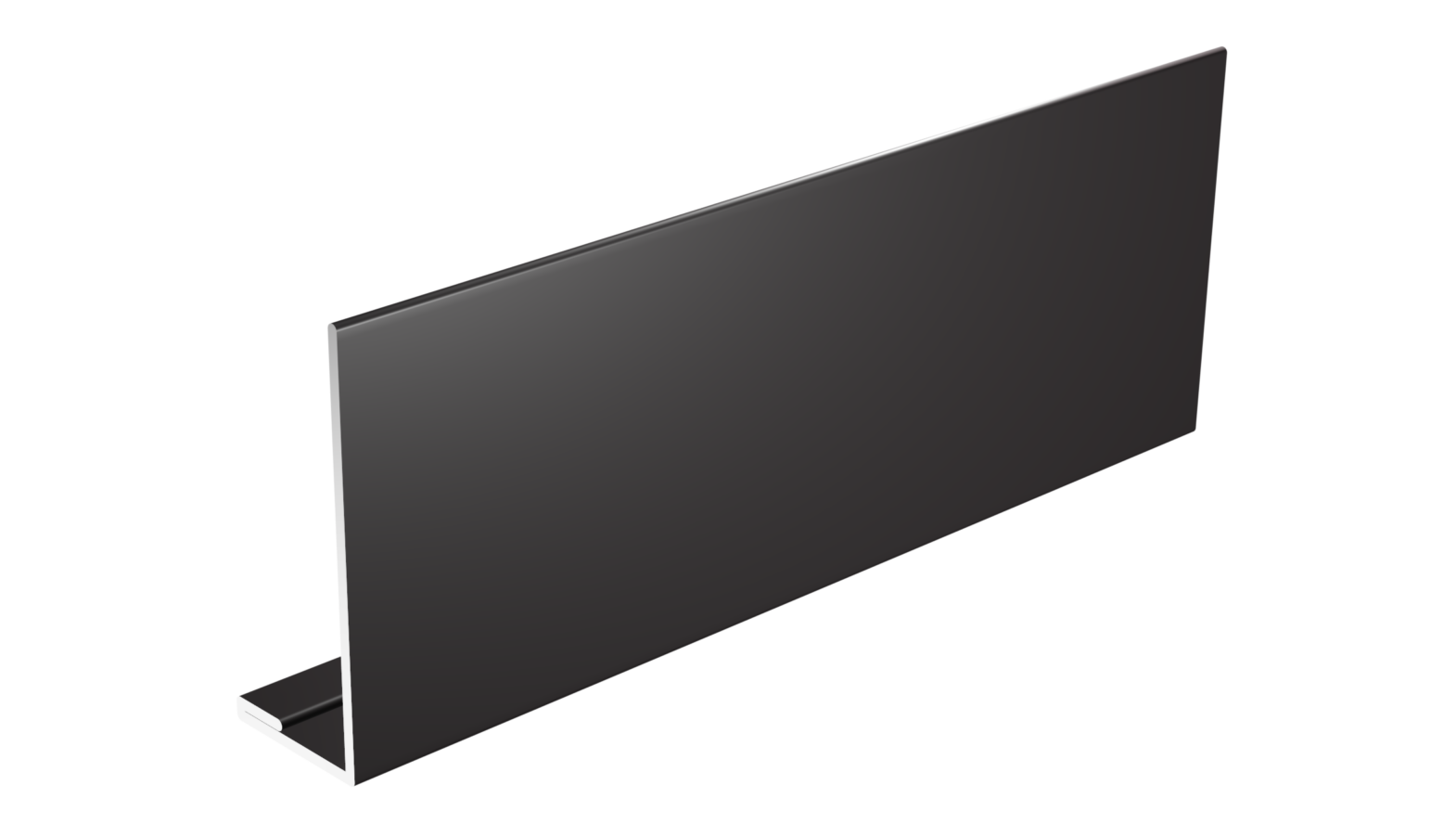

4" Facia
Double Angle
Corner
• Minimum 3/12 roof pitch required
• Also available in 26 gauge
• 45′ maximum length
Hide Measurements
Show Measurements
Hide 3D Drawings
Show 3D Drawings
Residential Panel
“S” panel with standing seam and “B” panel with board & batten – Components and Profiles

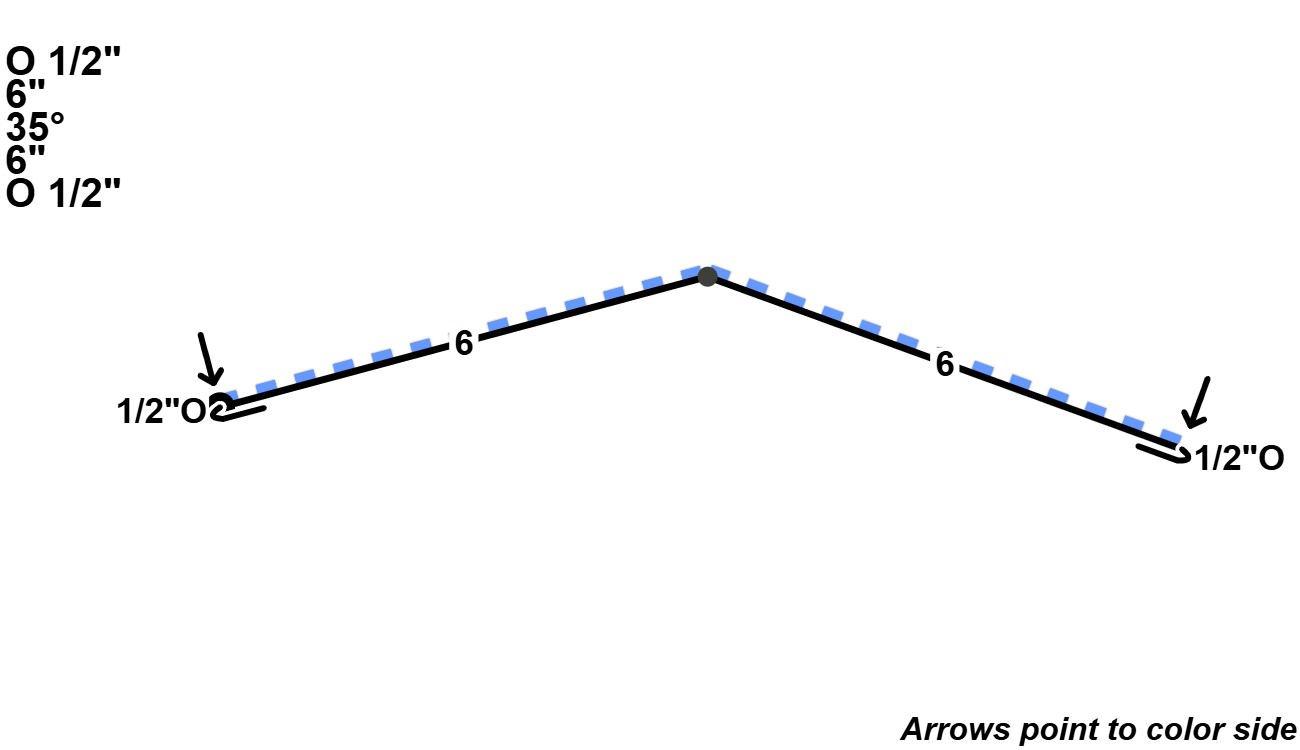

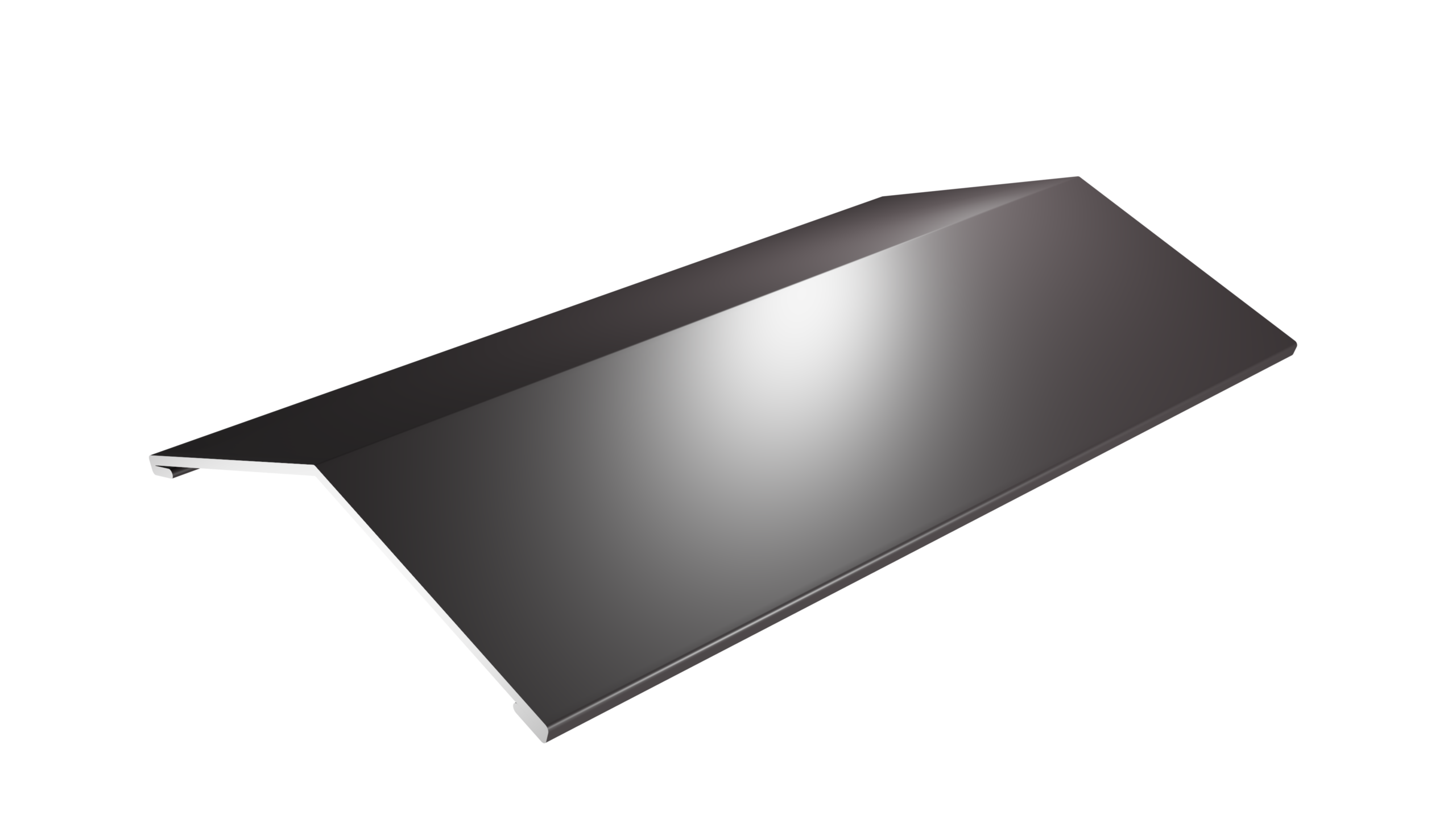

Standing Seam Ridge Cap

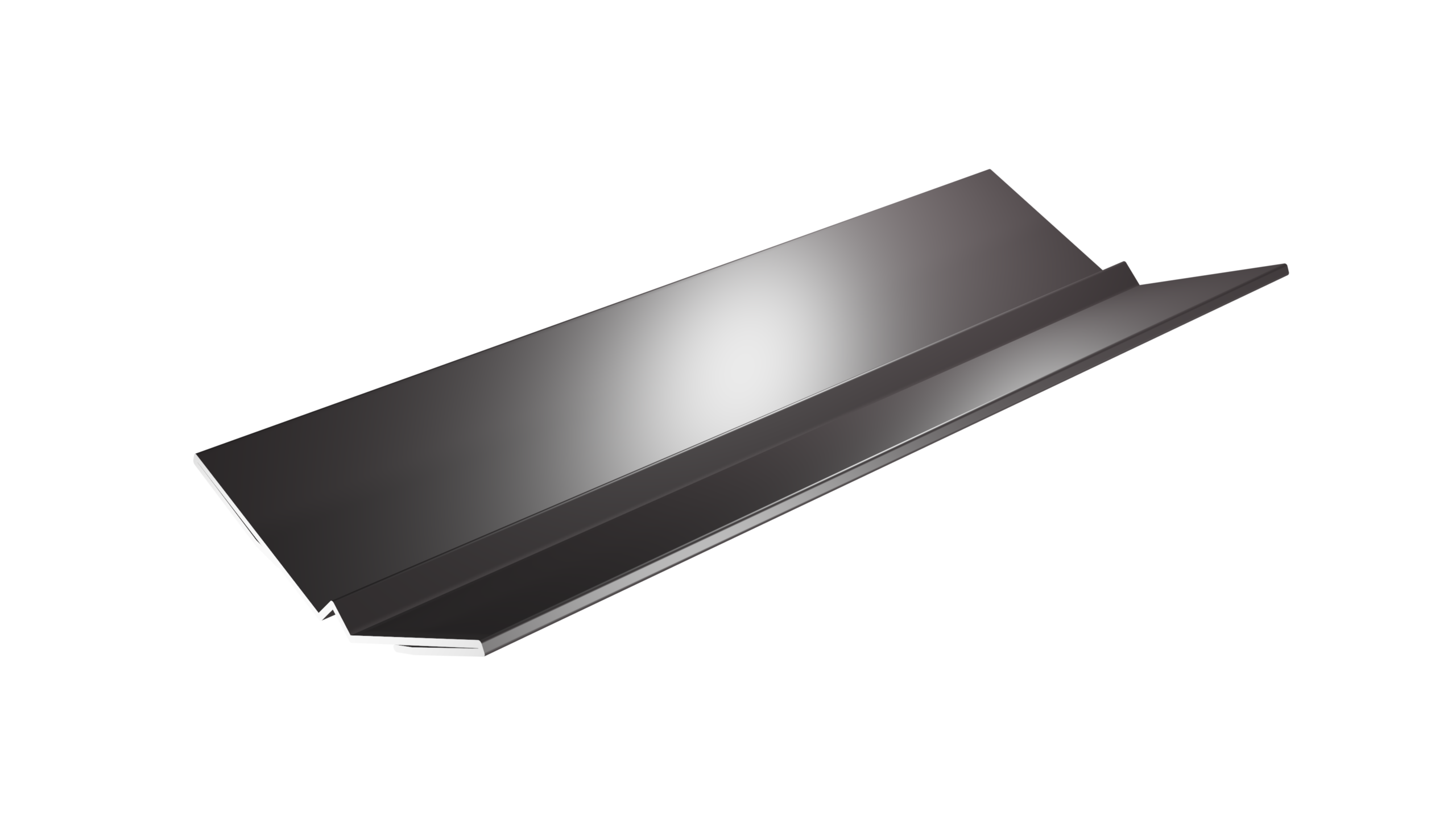

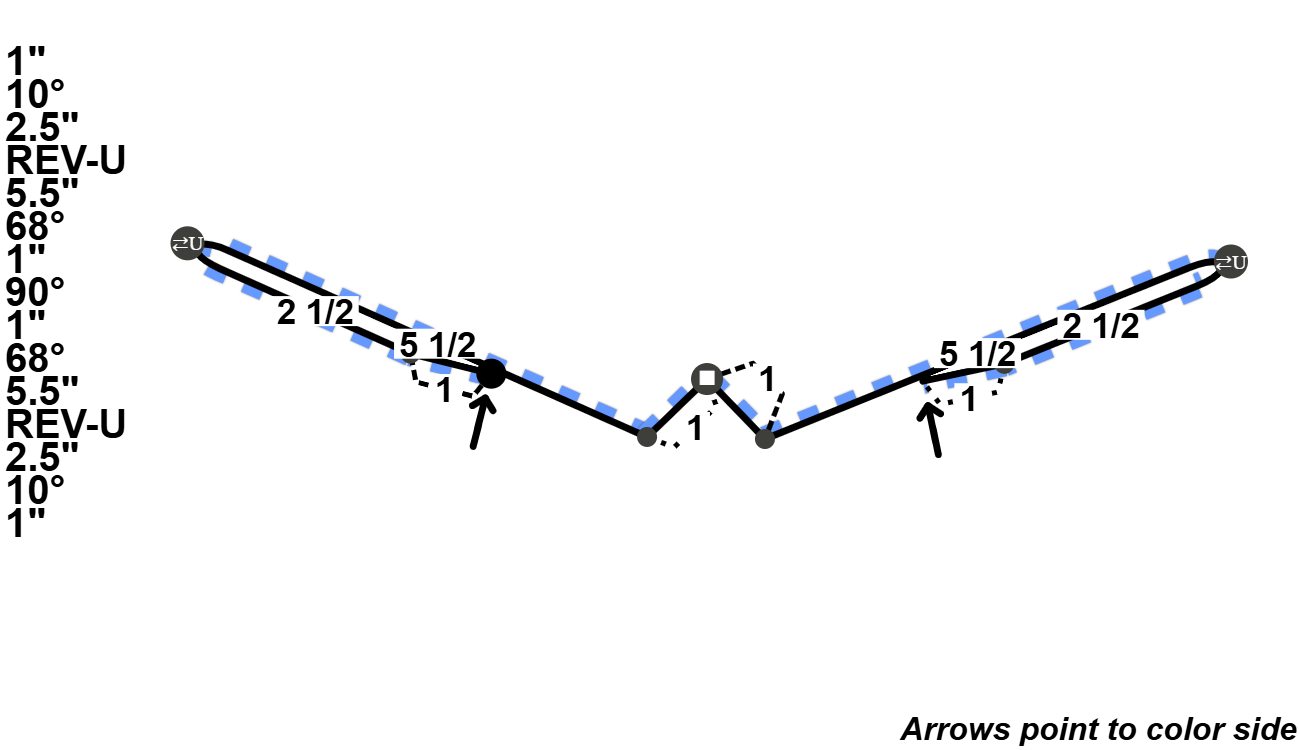

Standing Seam "W" Valley

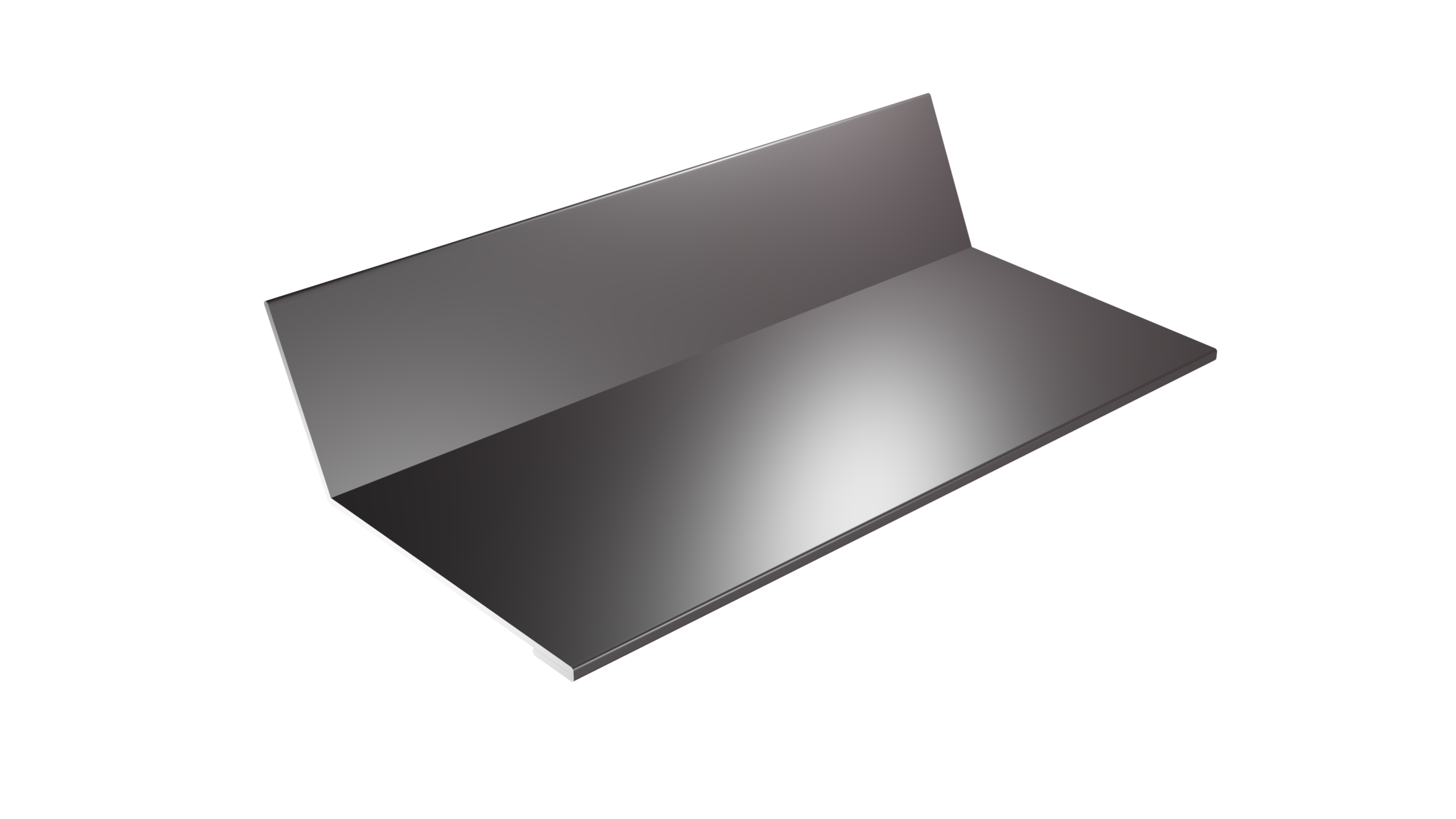

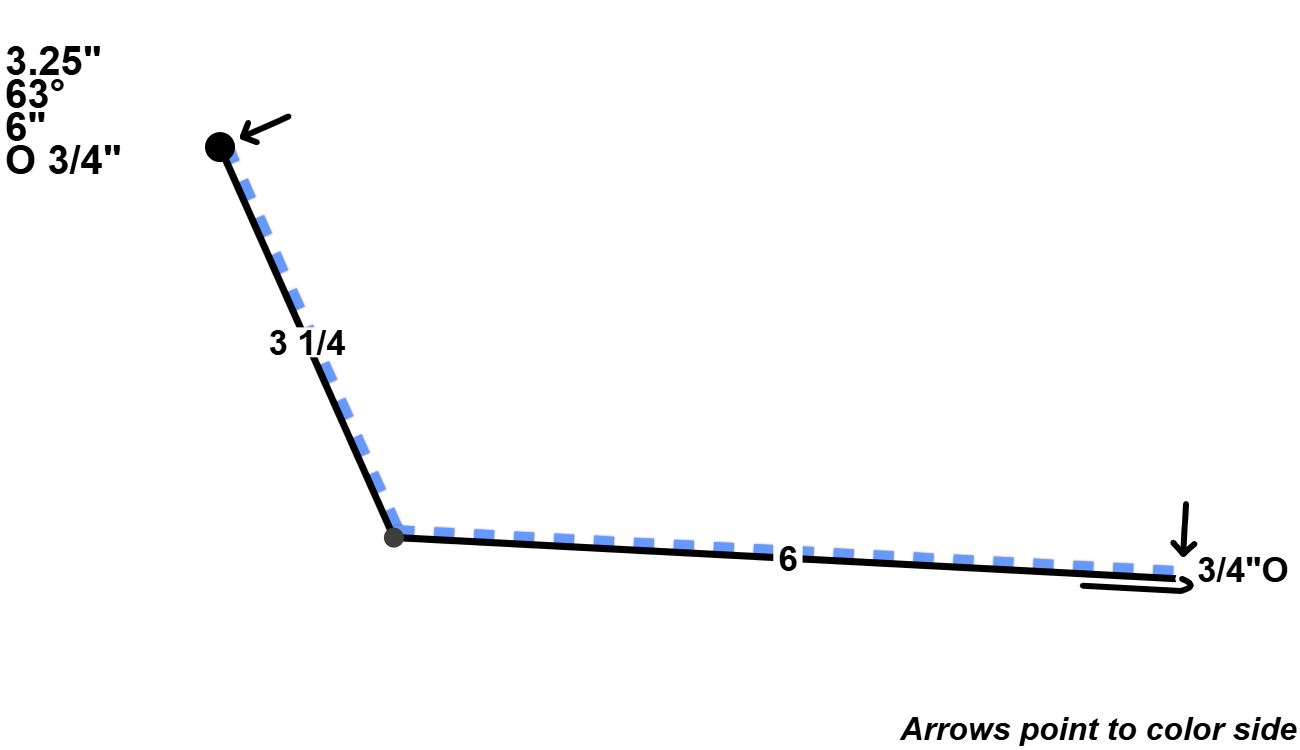

Standing Seam End Wall

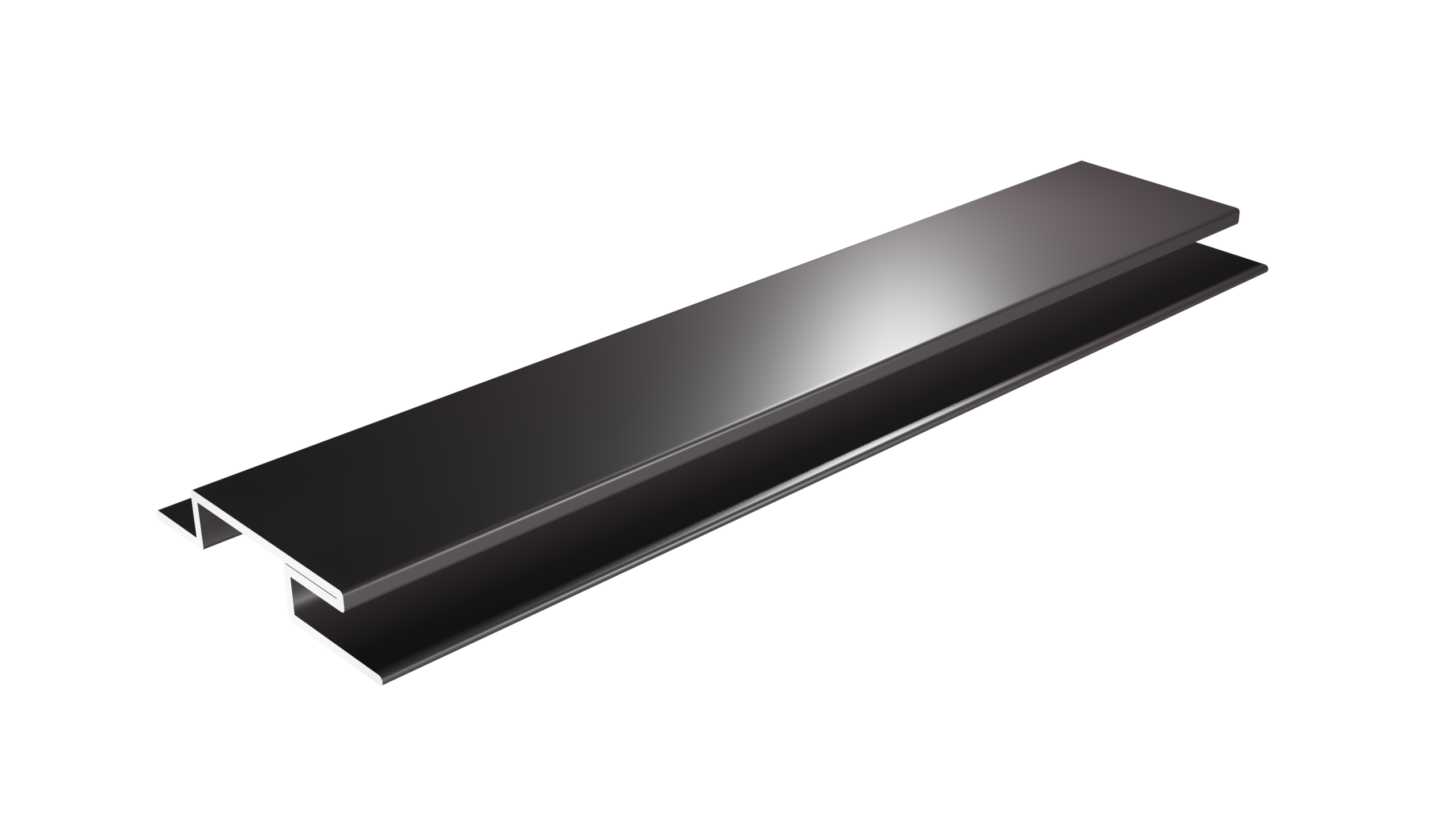

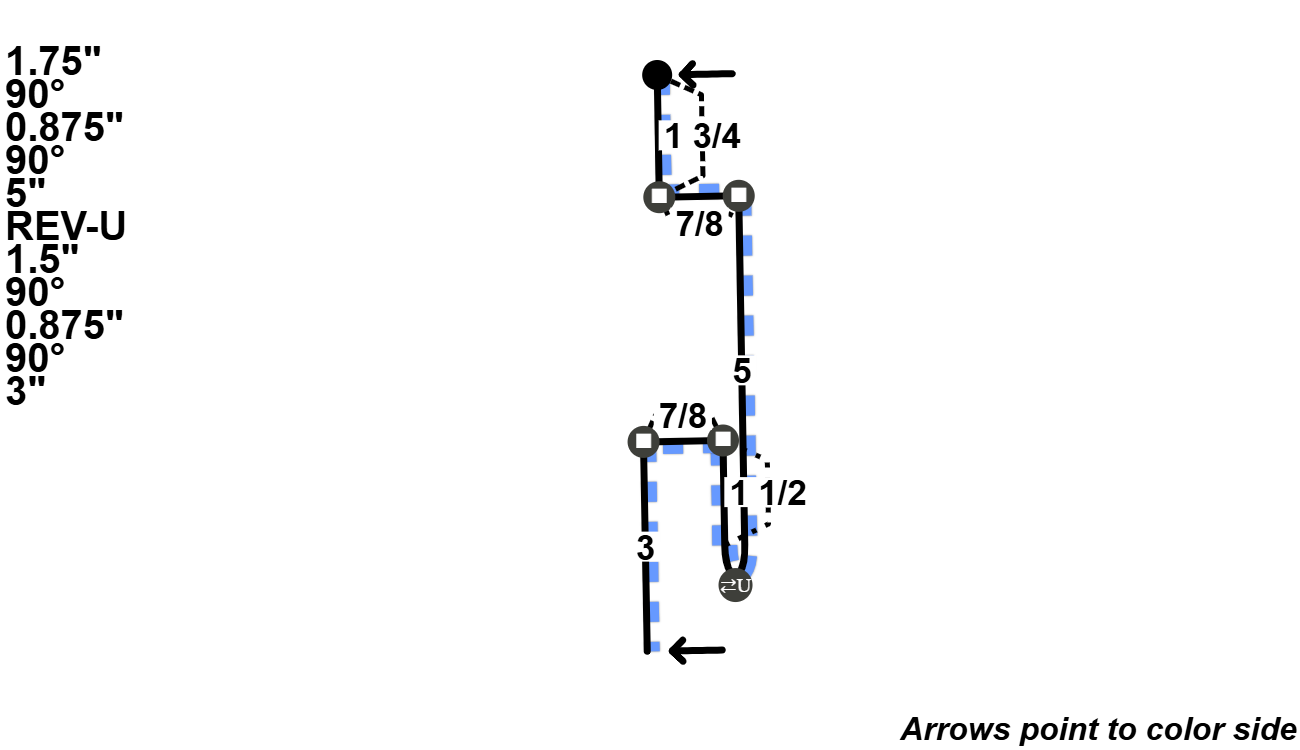

Board & Batten Gable Transition

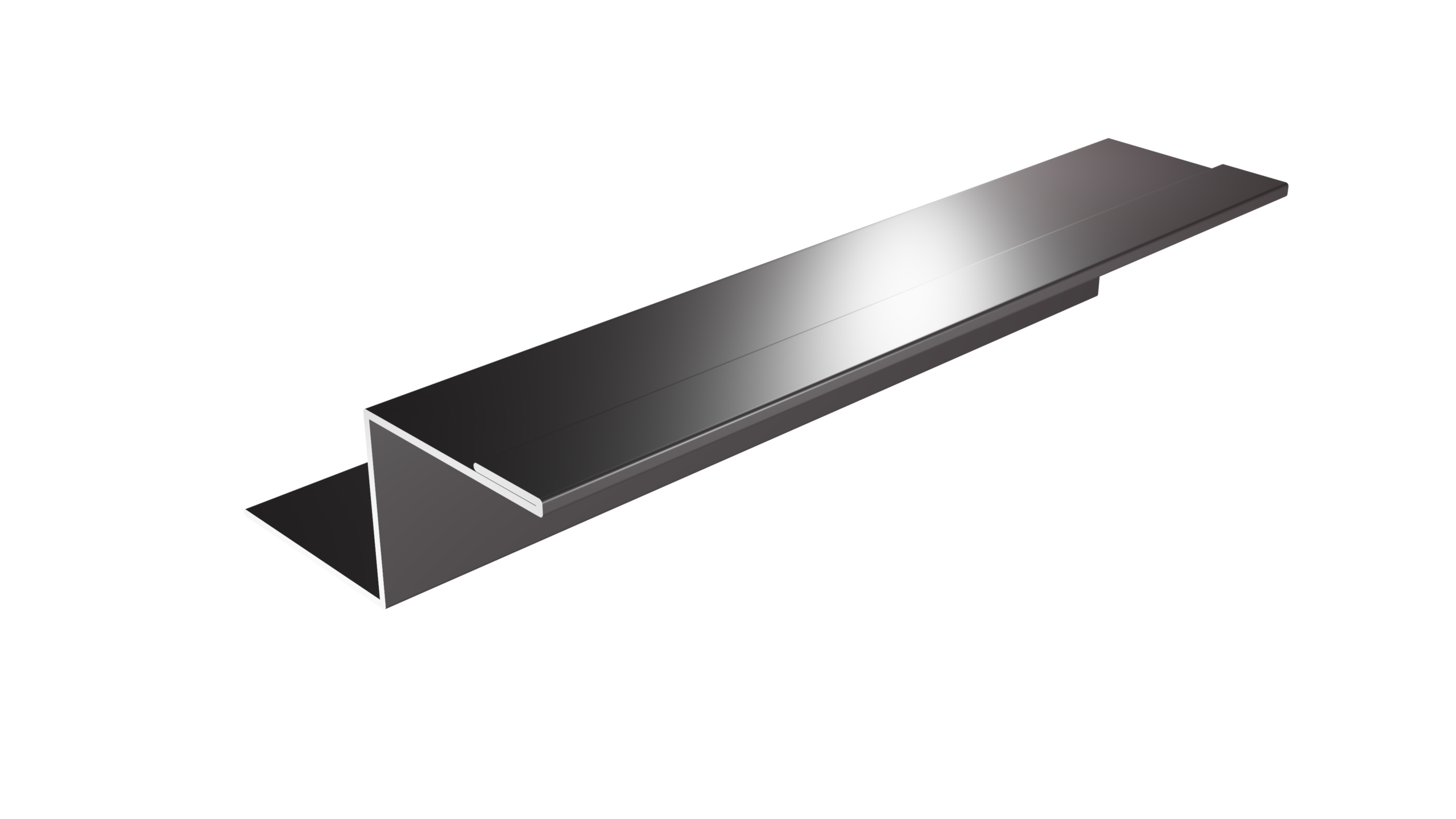

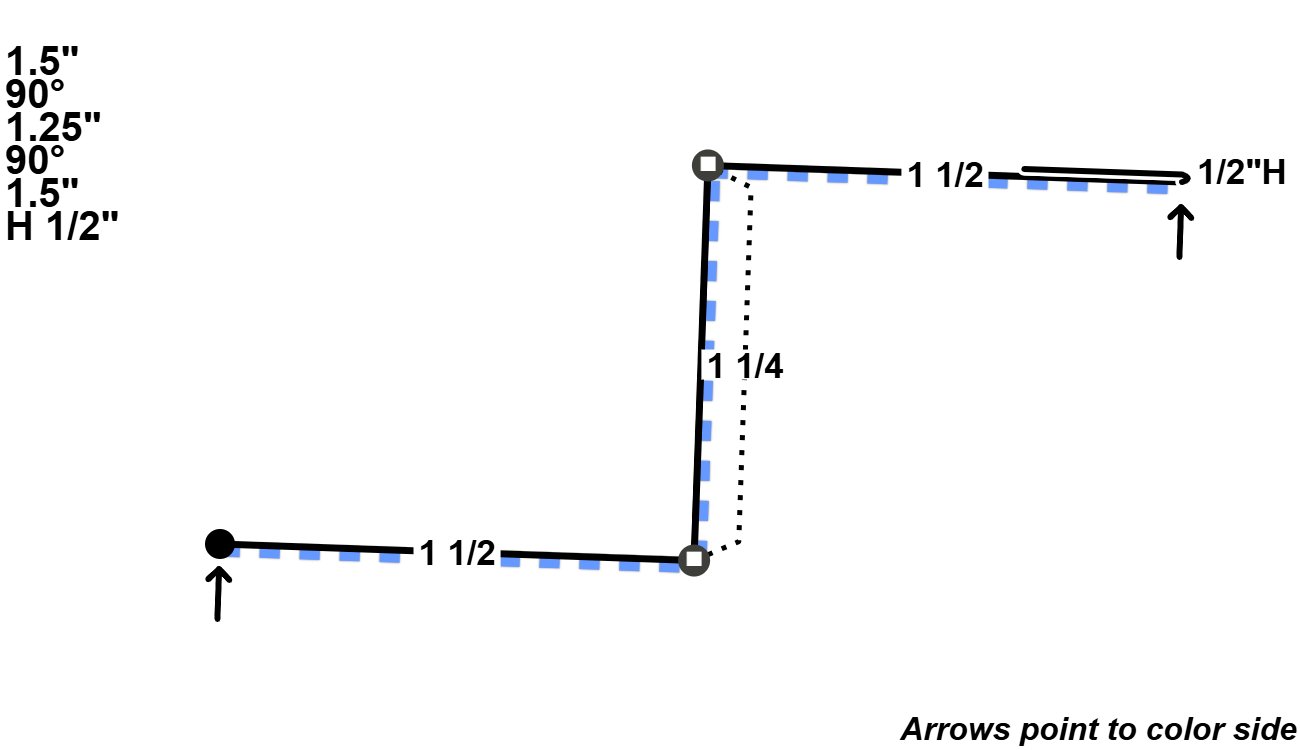

Standing Seam "Z" Bar

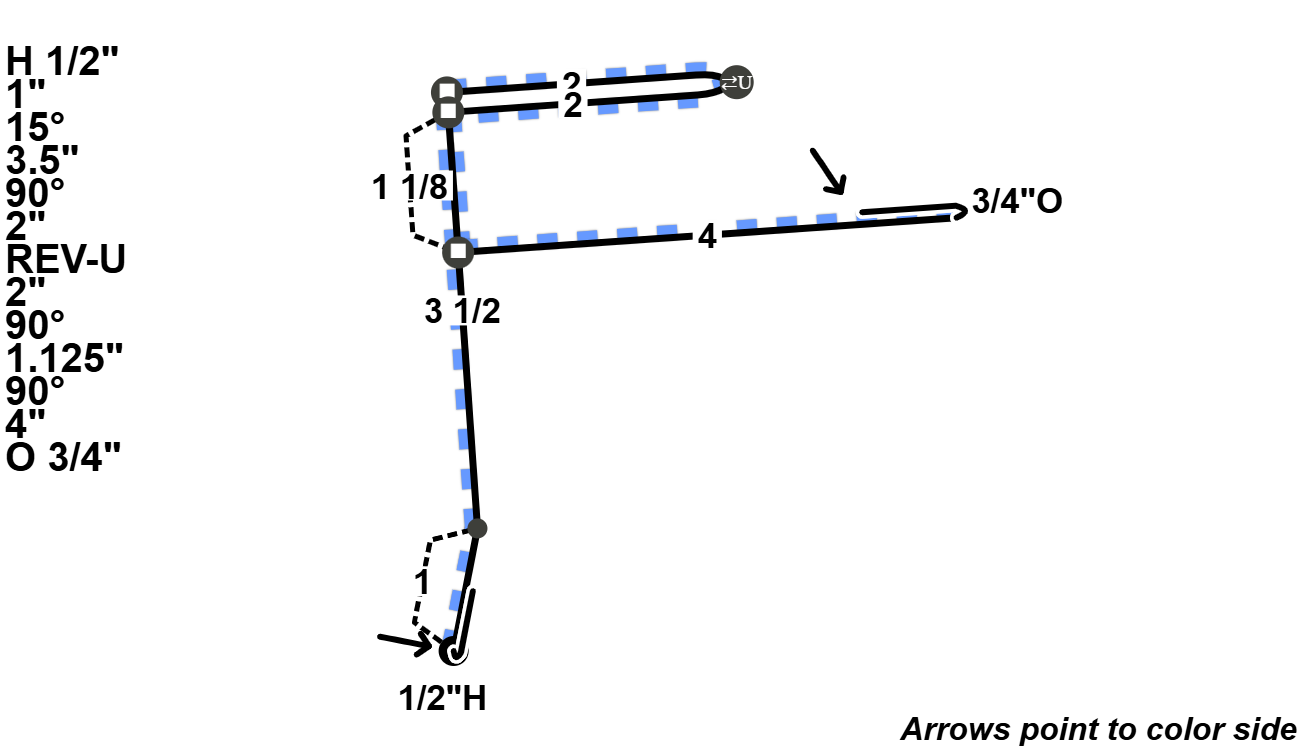

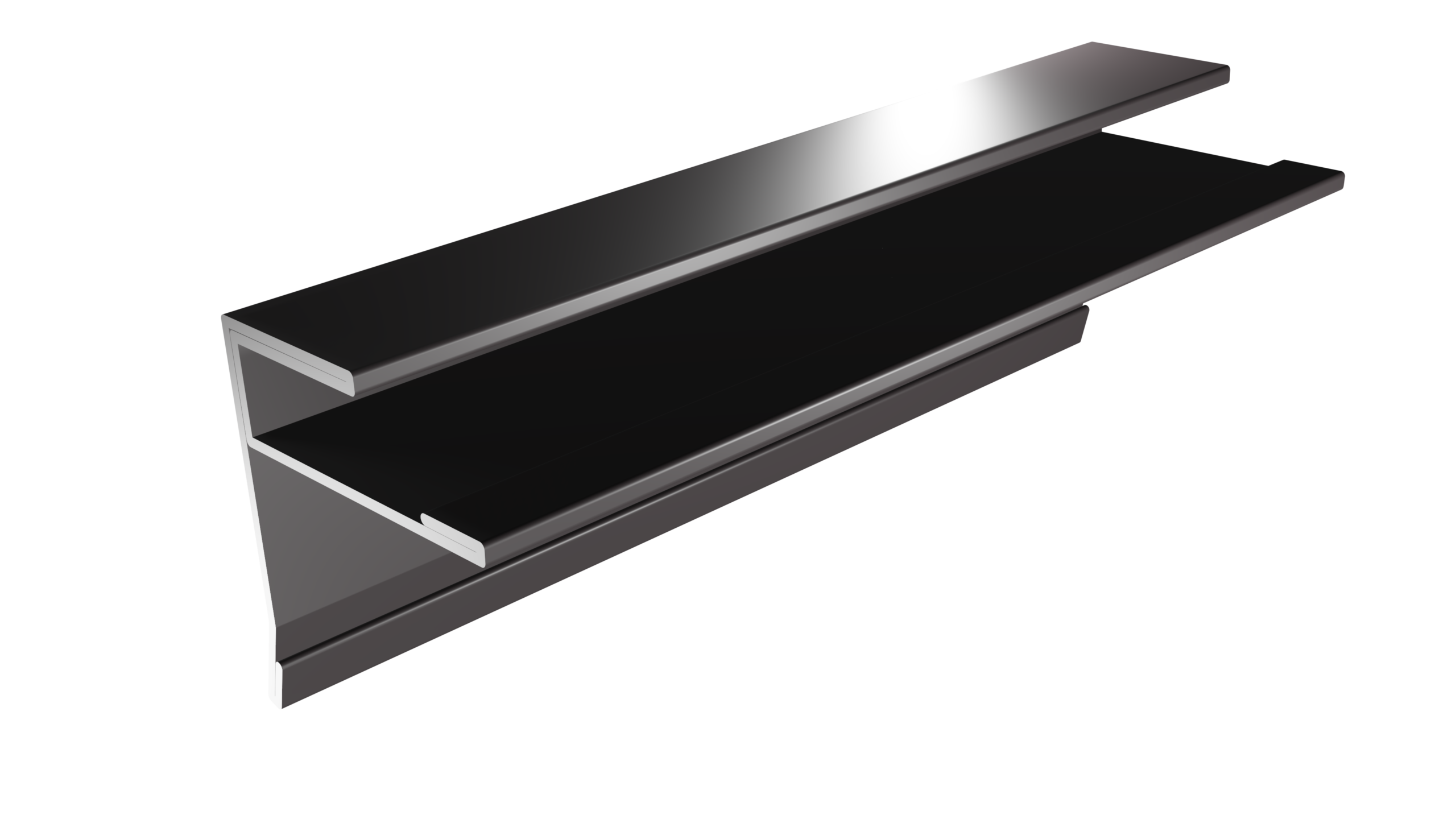

Standing Seam Rake

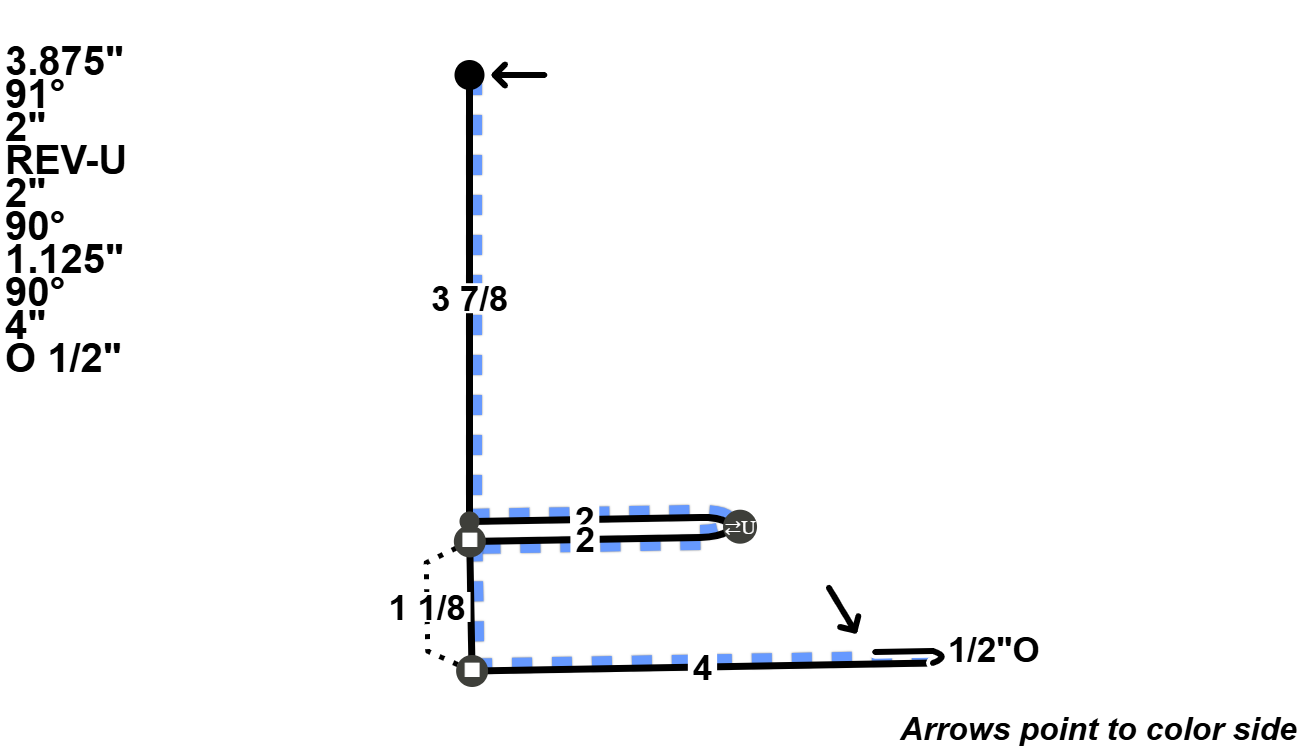

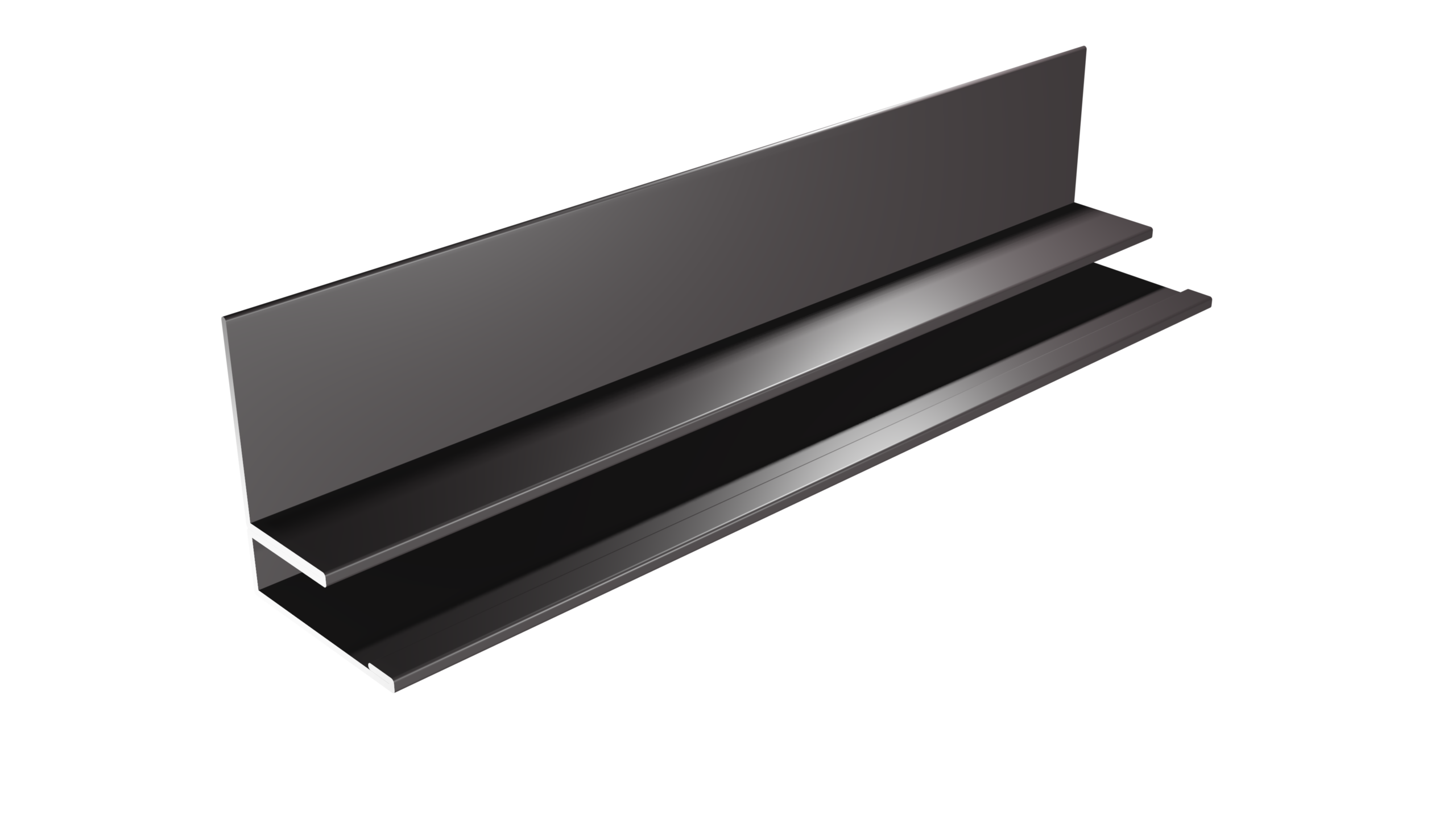

Standing Seam Side Wall

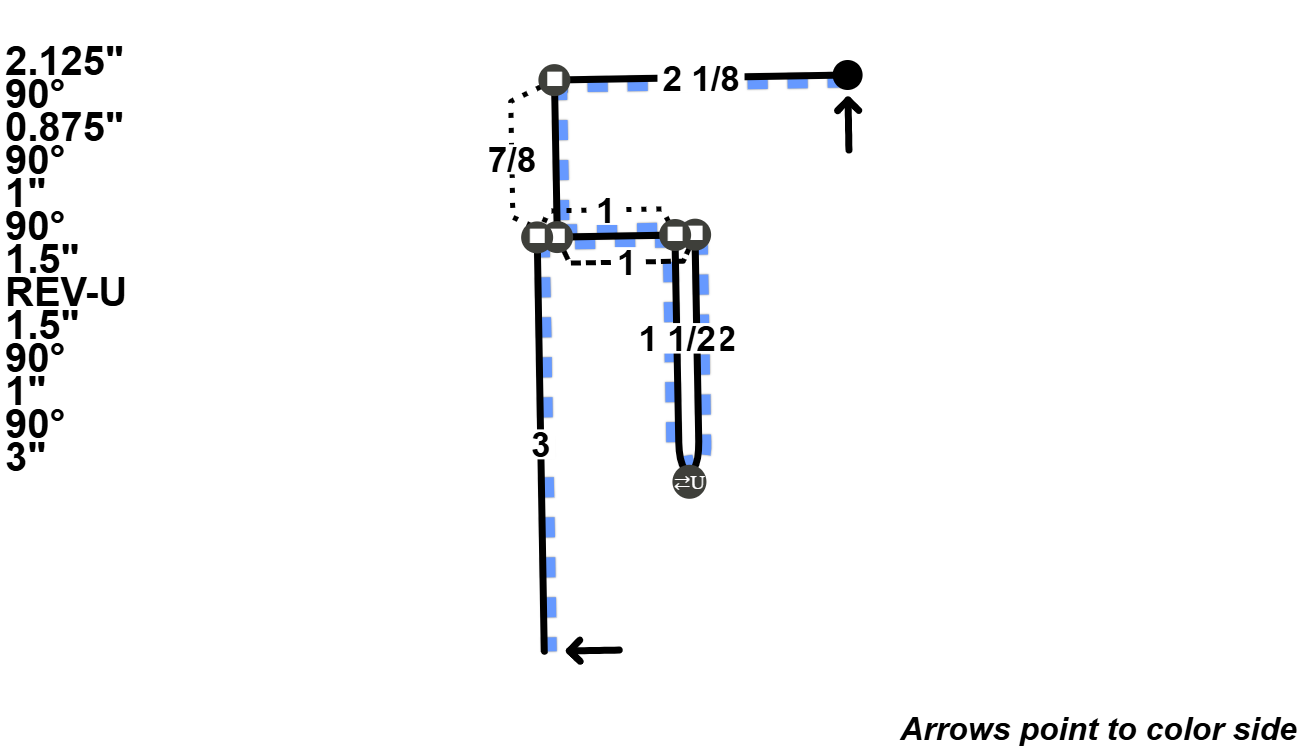

Board & Batten "F" and "J"

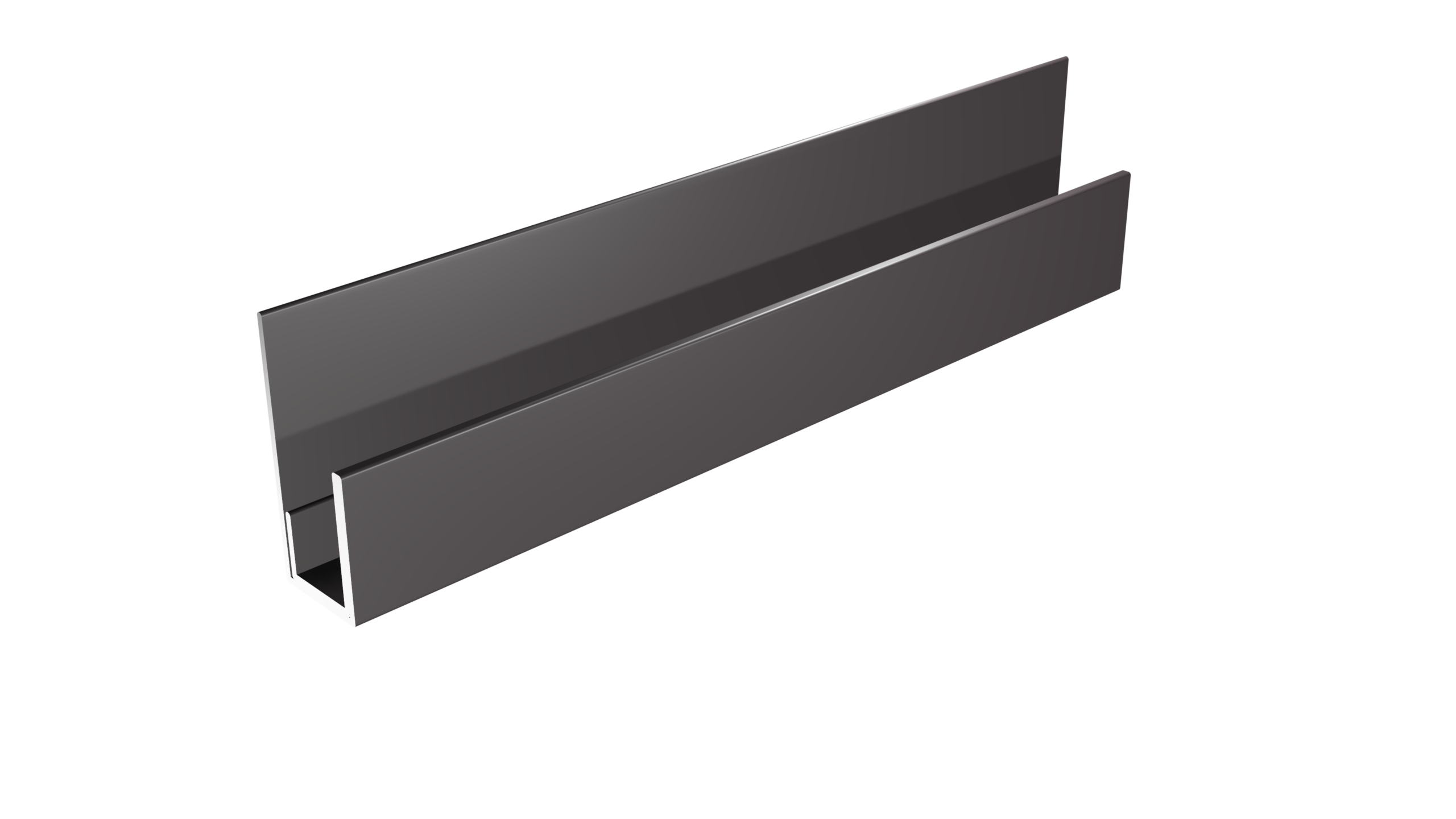

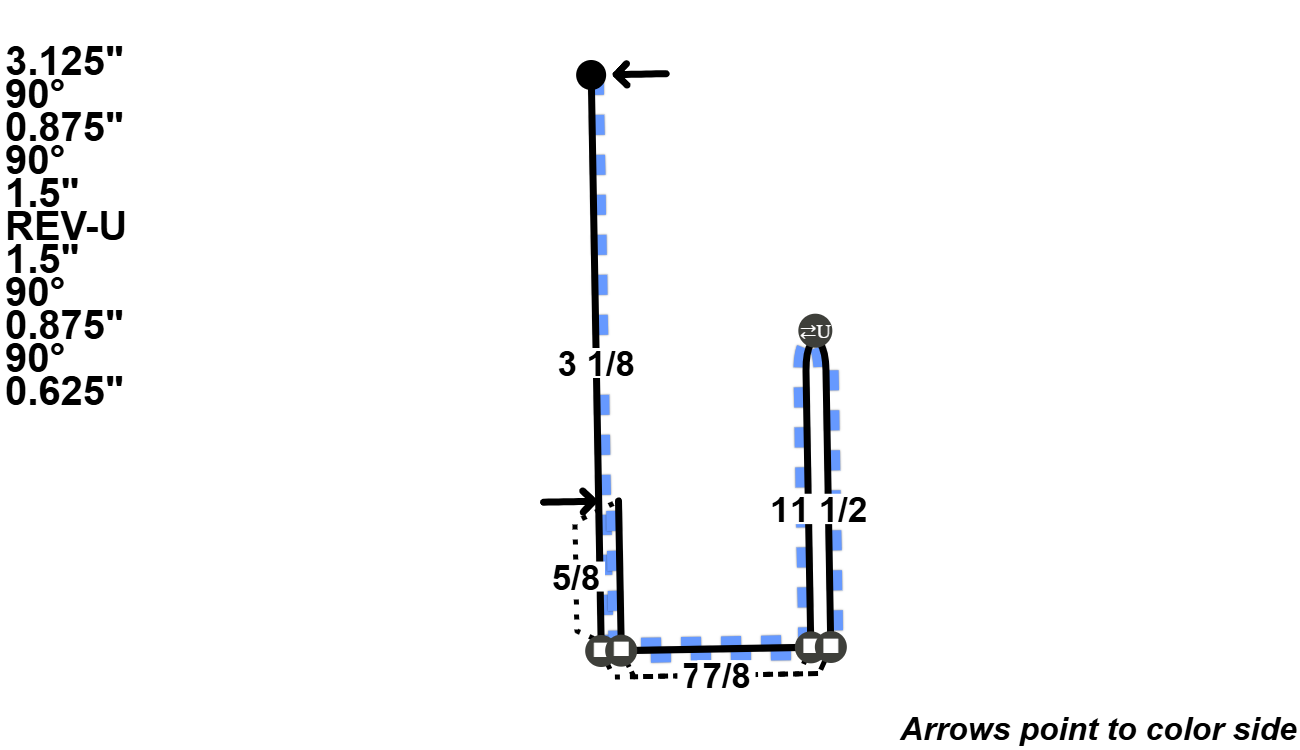

Board & Batten "J" Channel

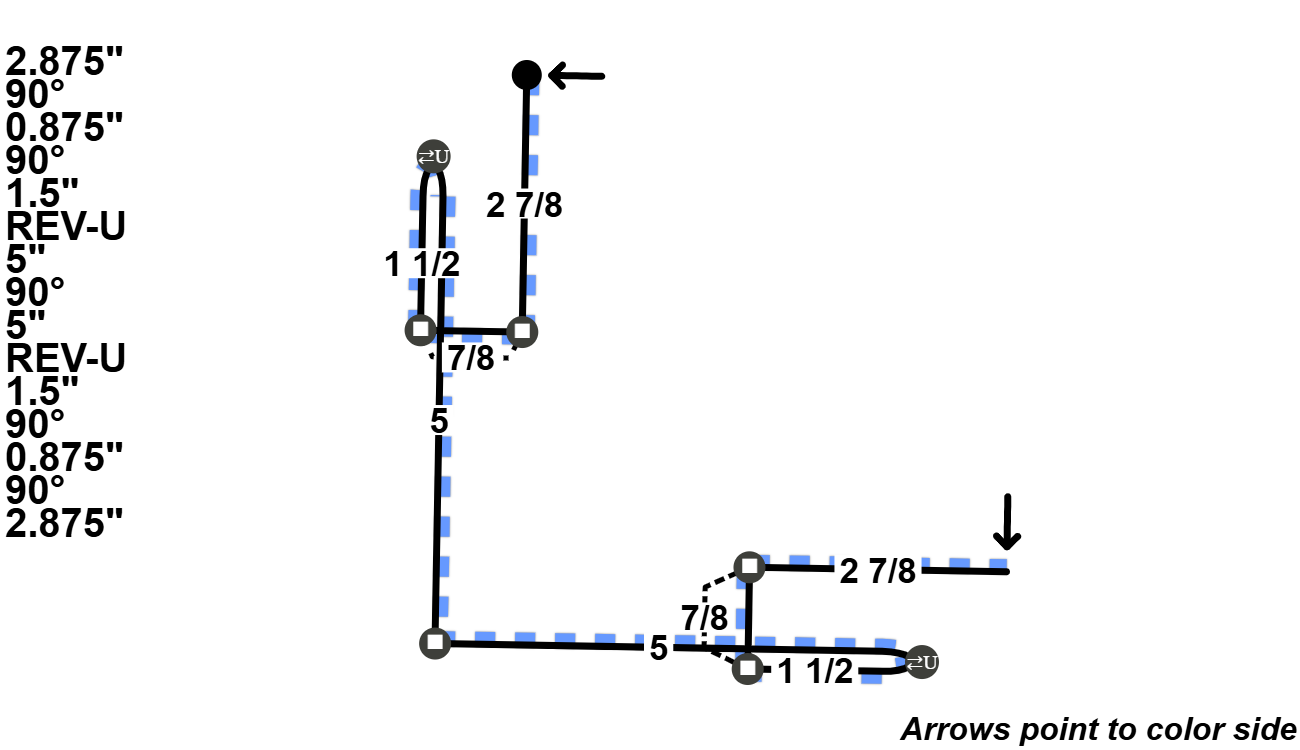

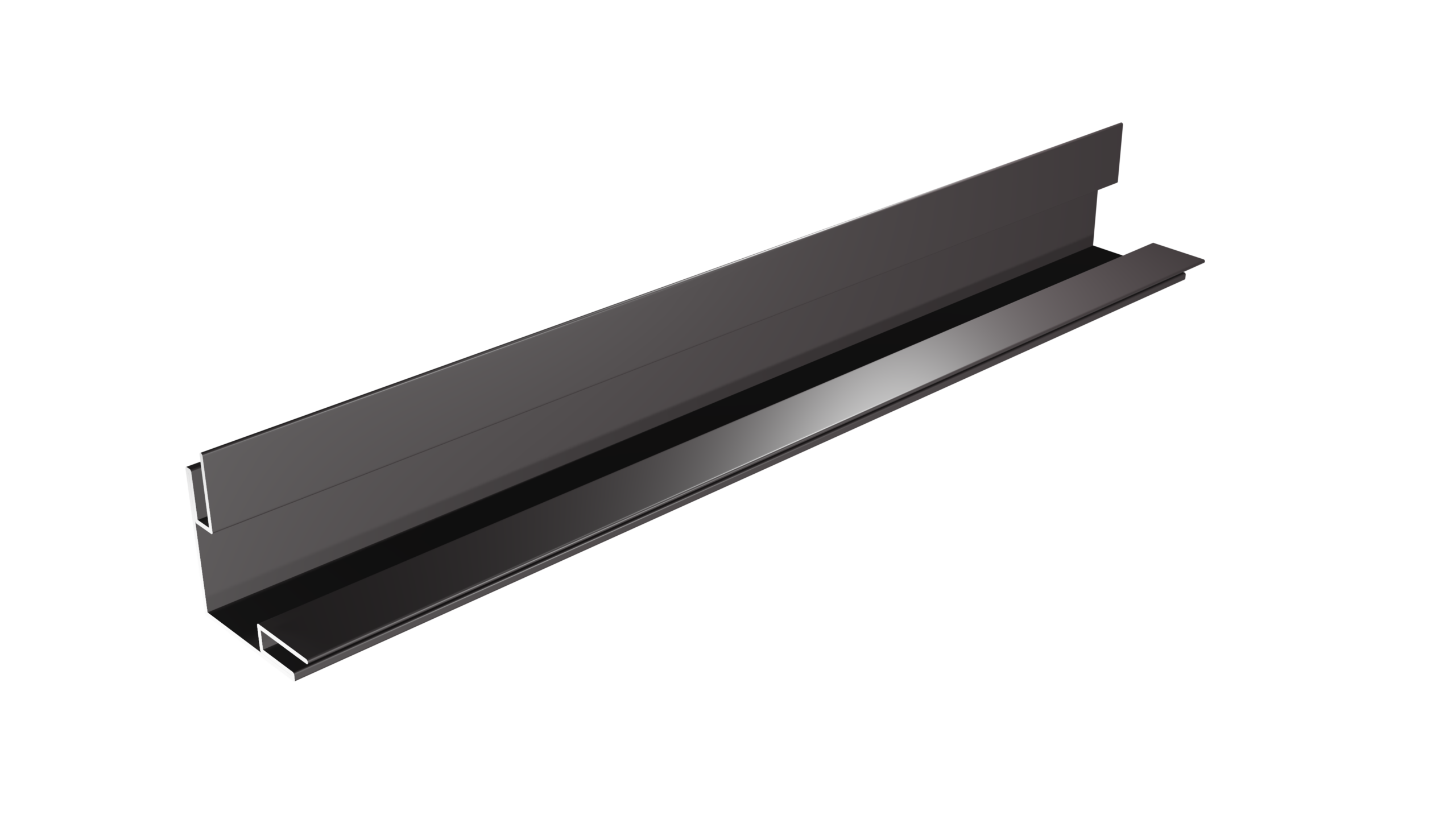

Board & Batten Outside Corner

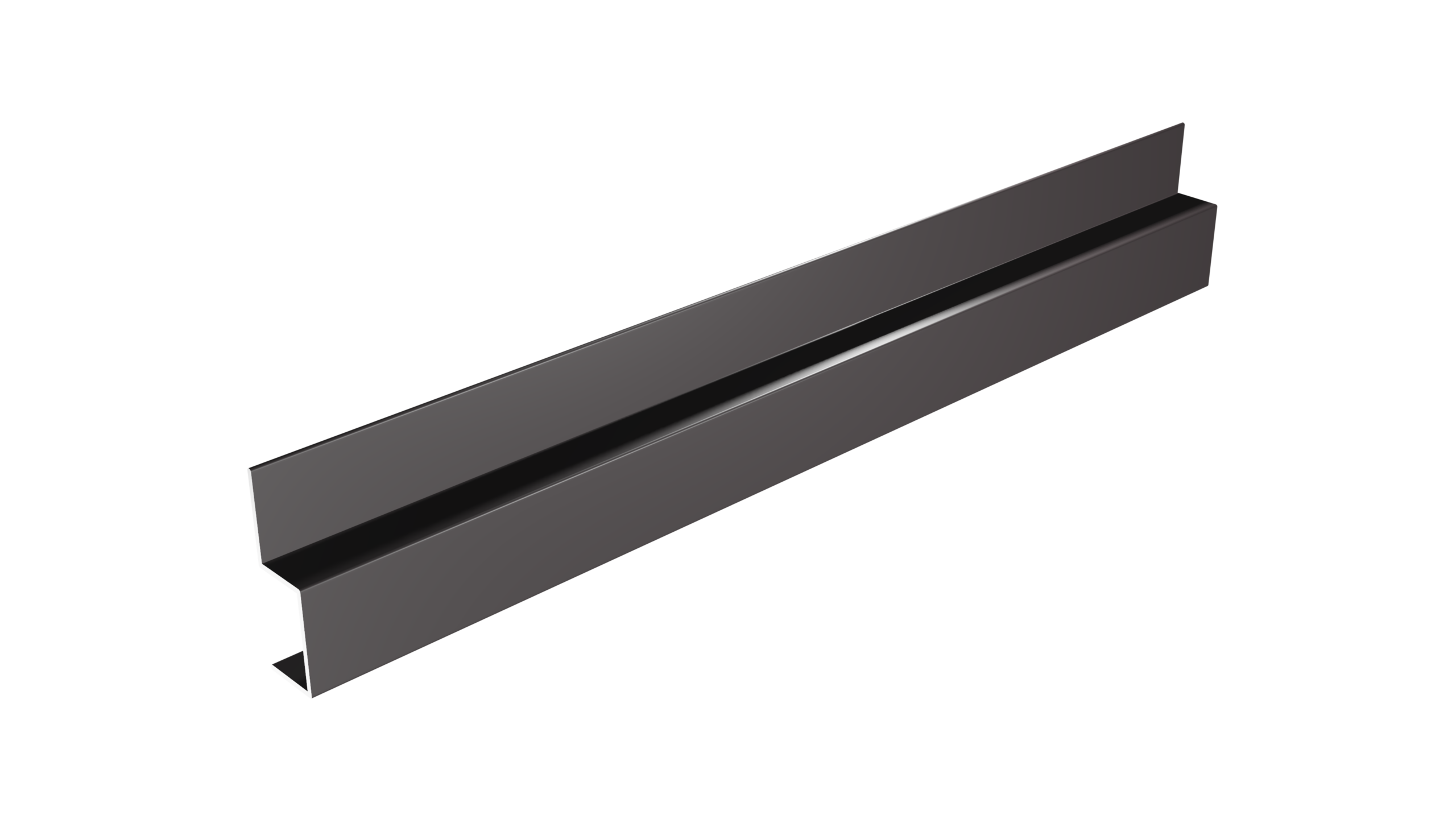

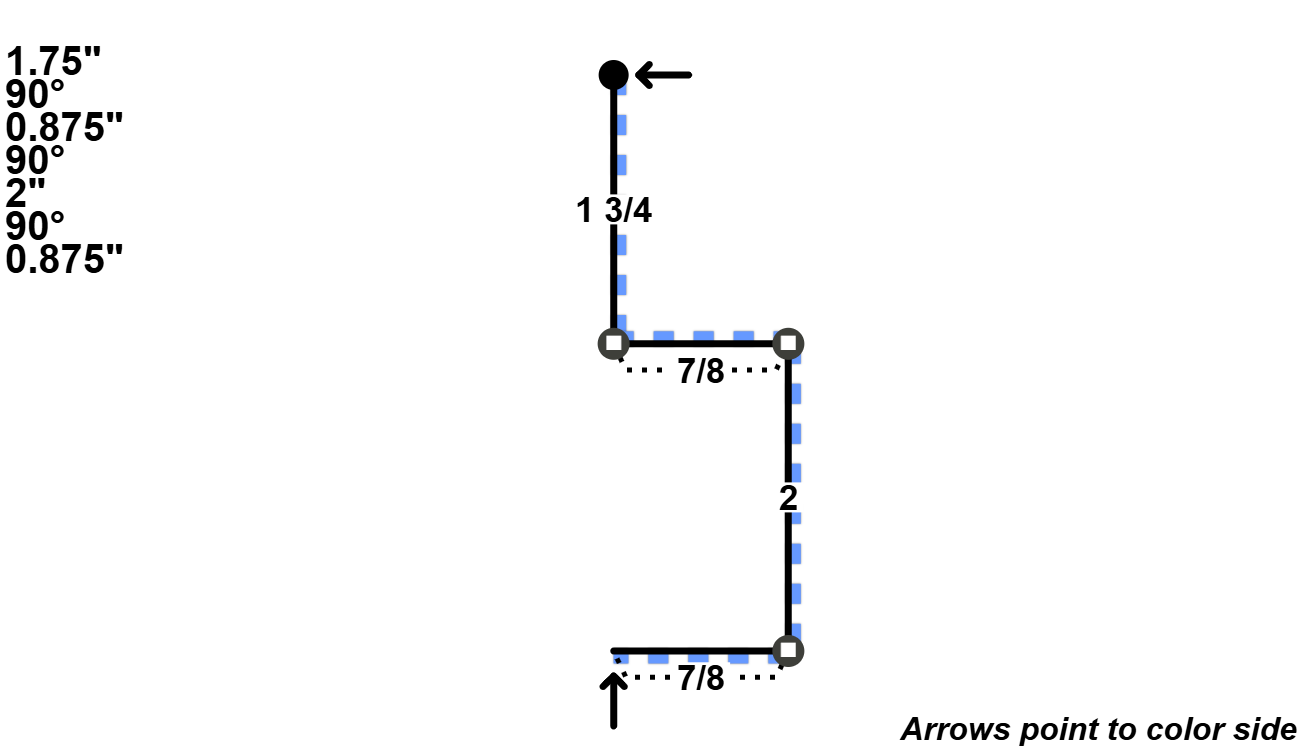

Board & Batten Base

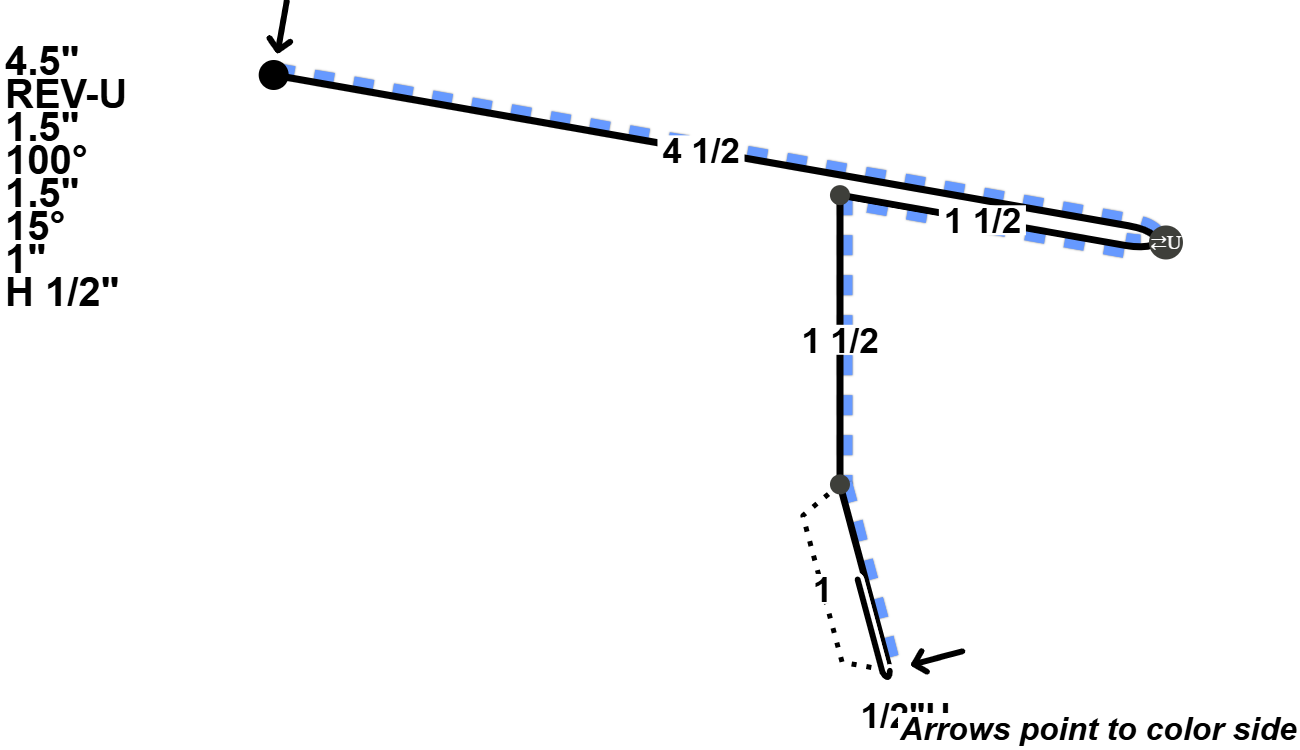

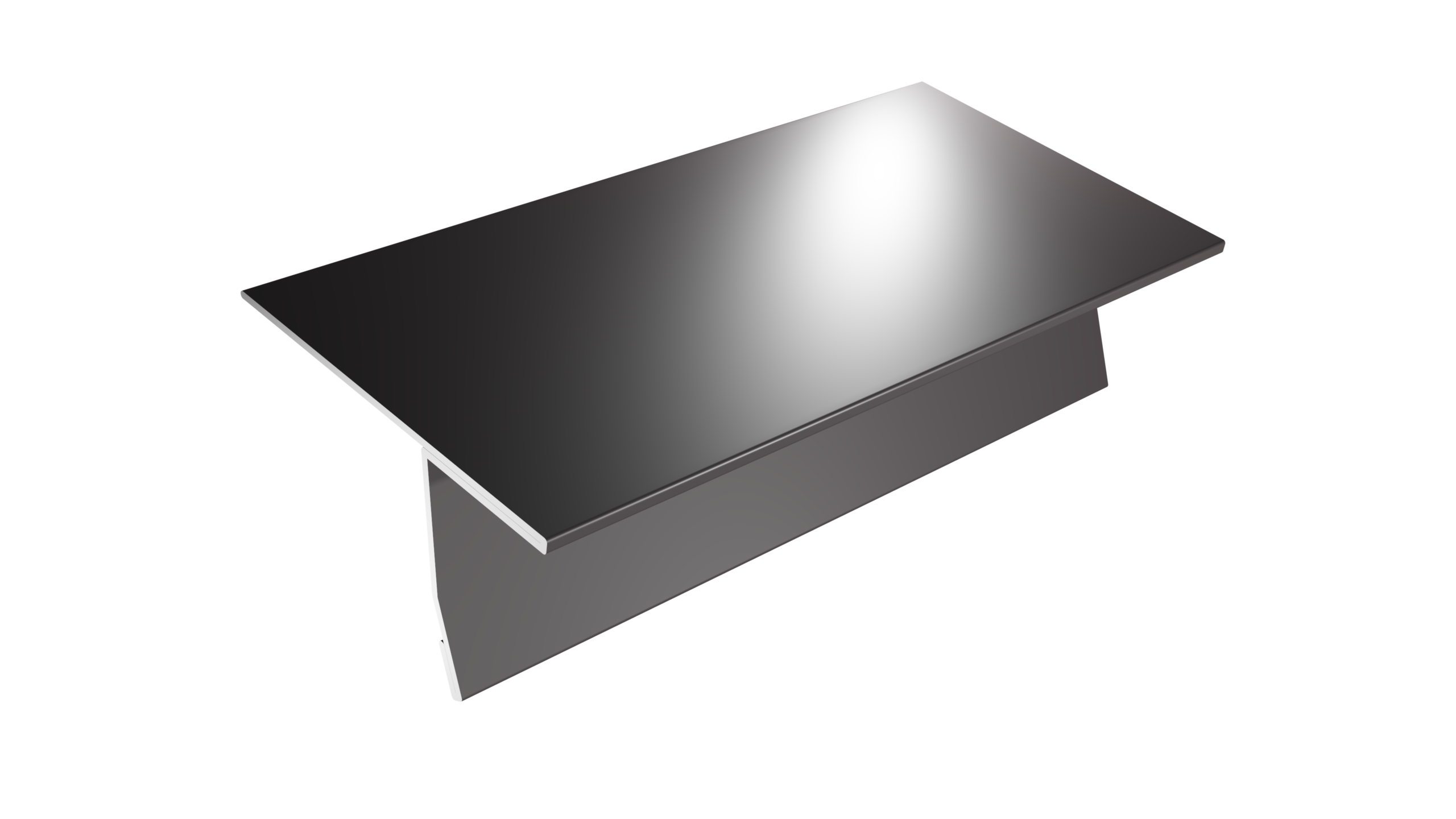

Standing Seam Drip Edge

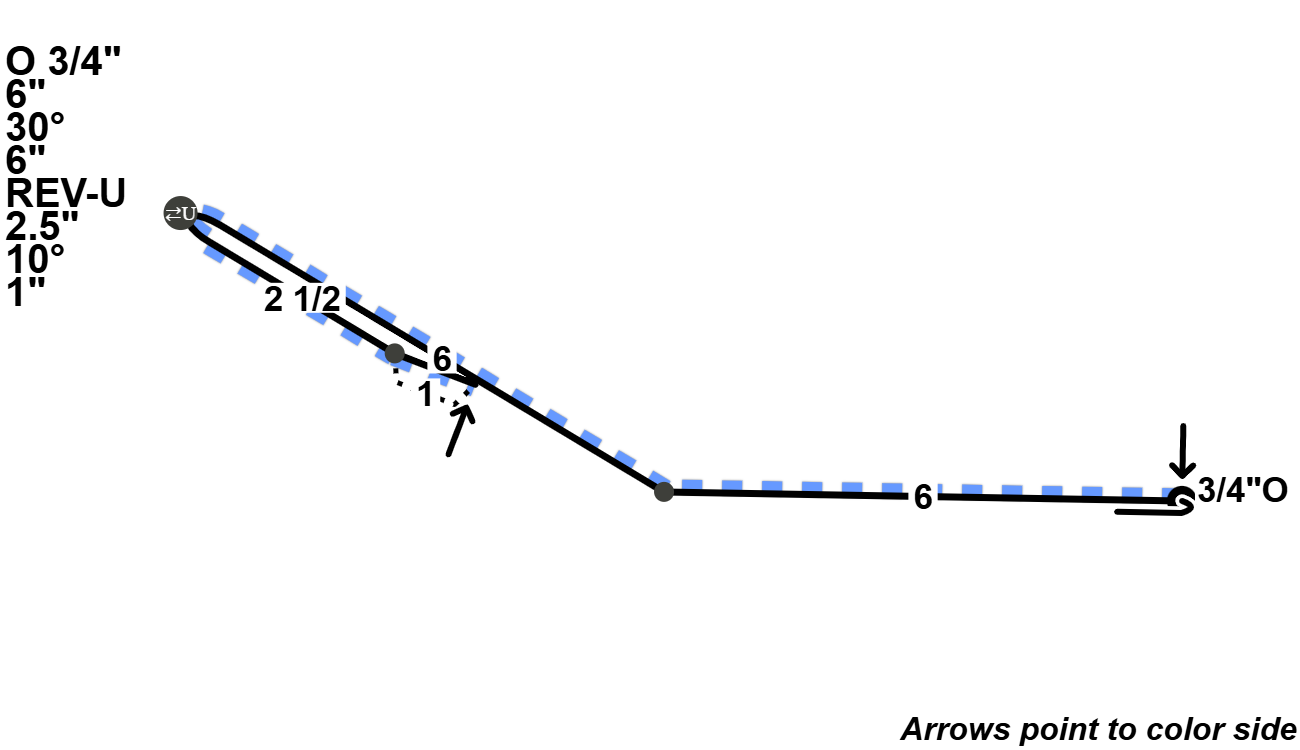

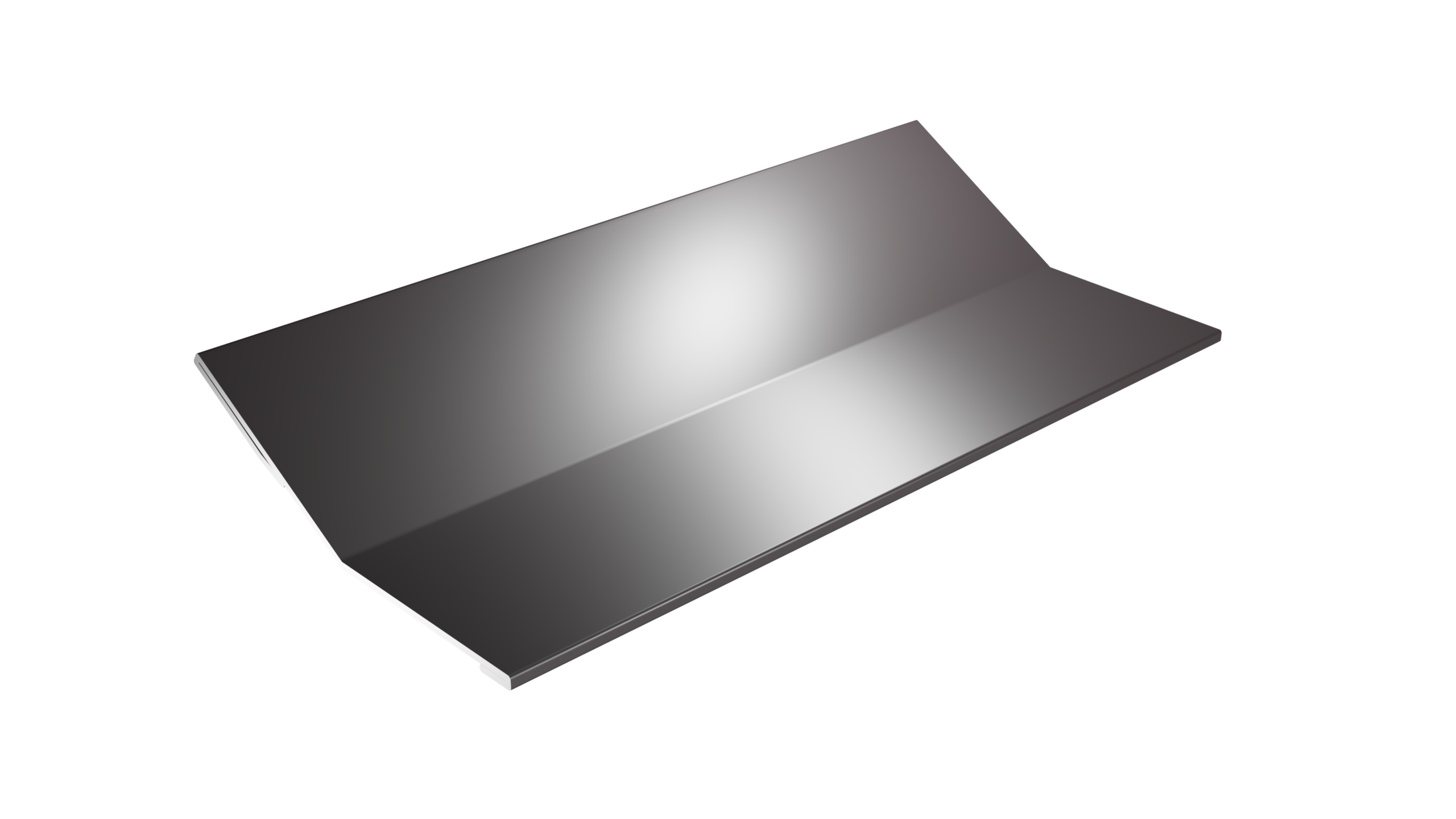

Standing Seam Transition

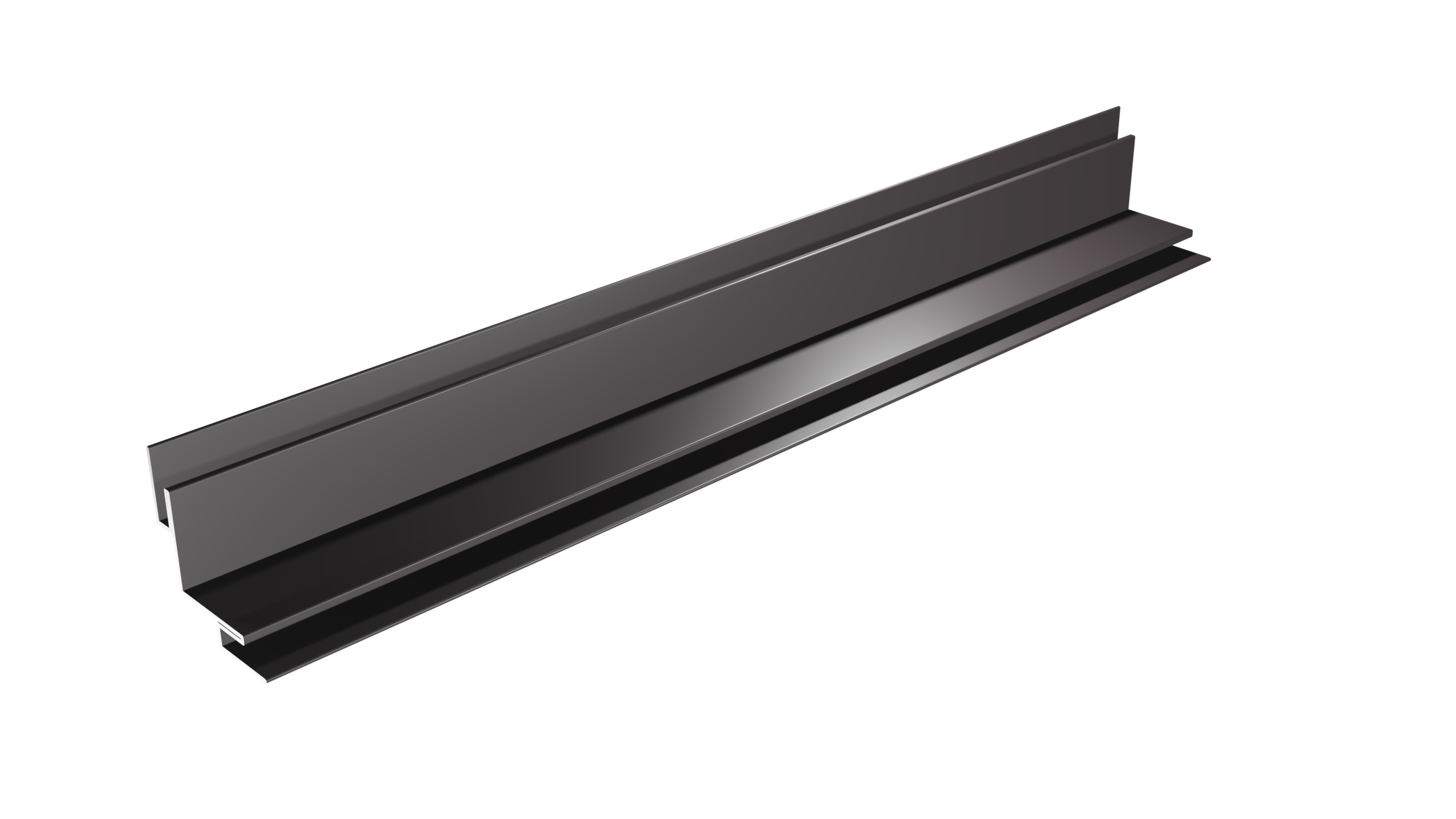

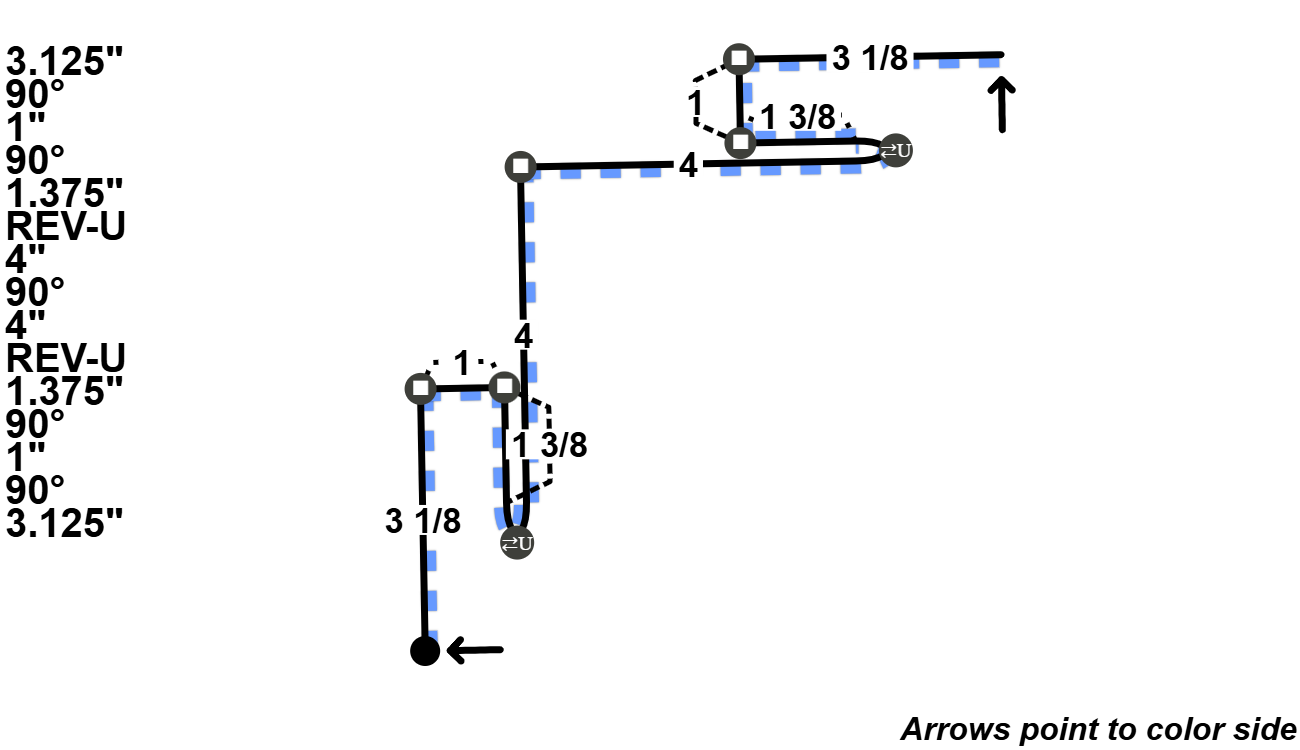

Board & Batten Inside Corner

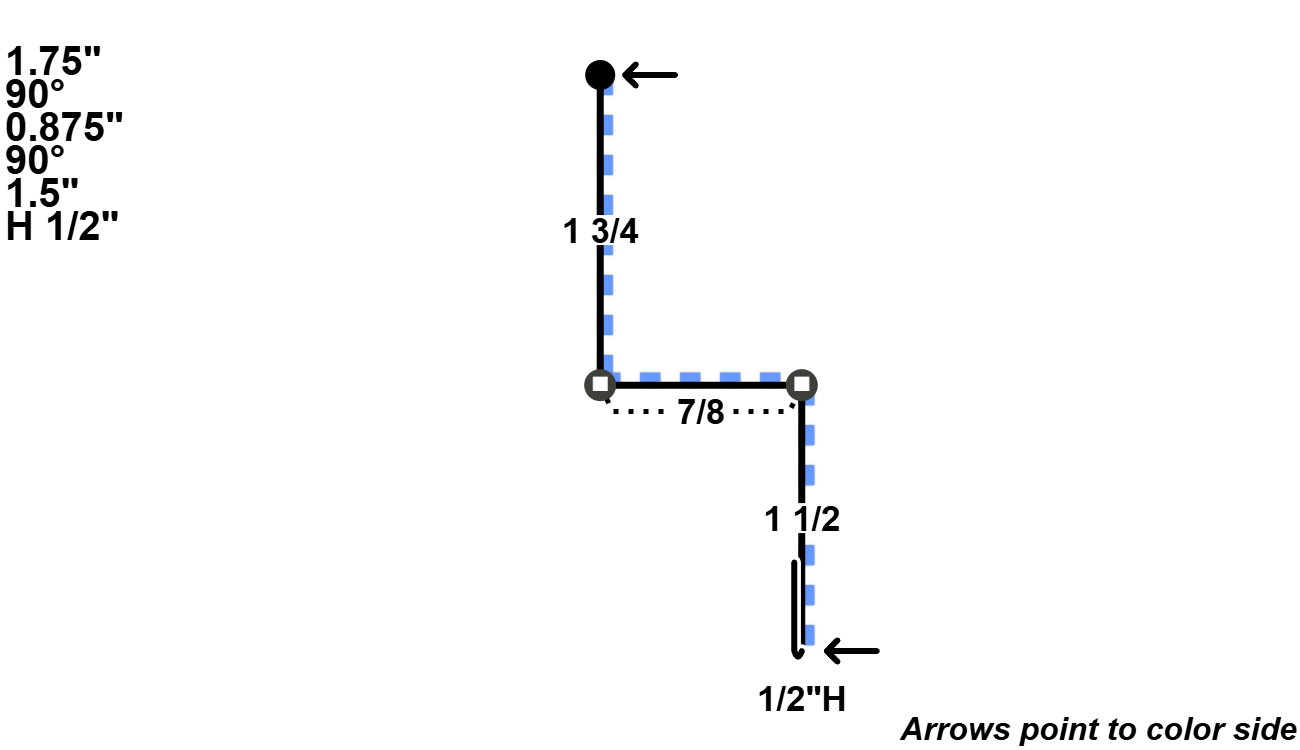

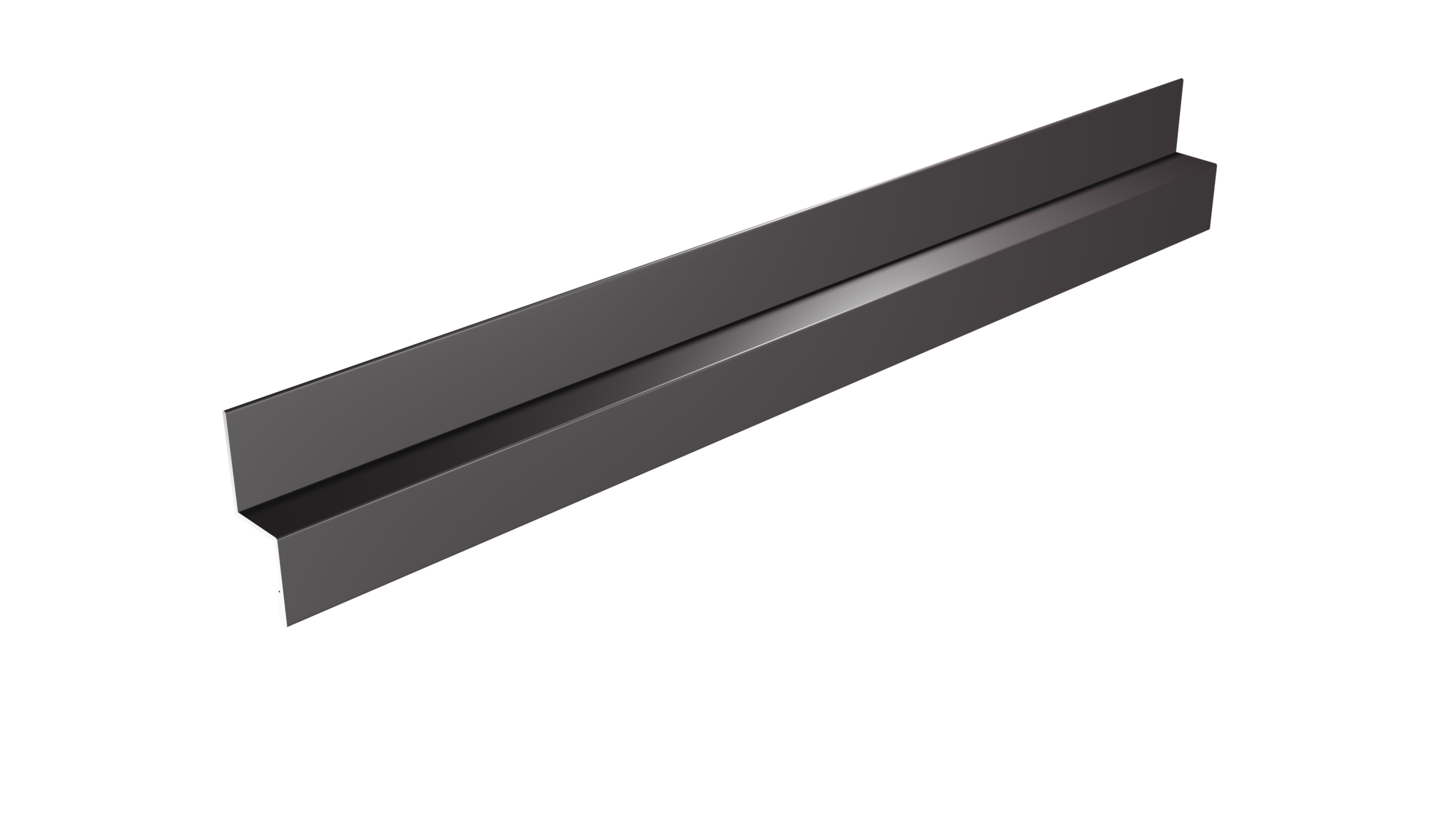

Board & Batten Double Angle

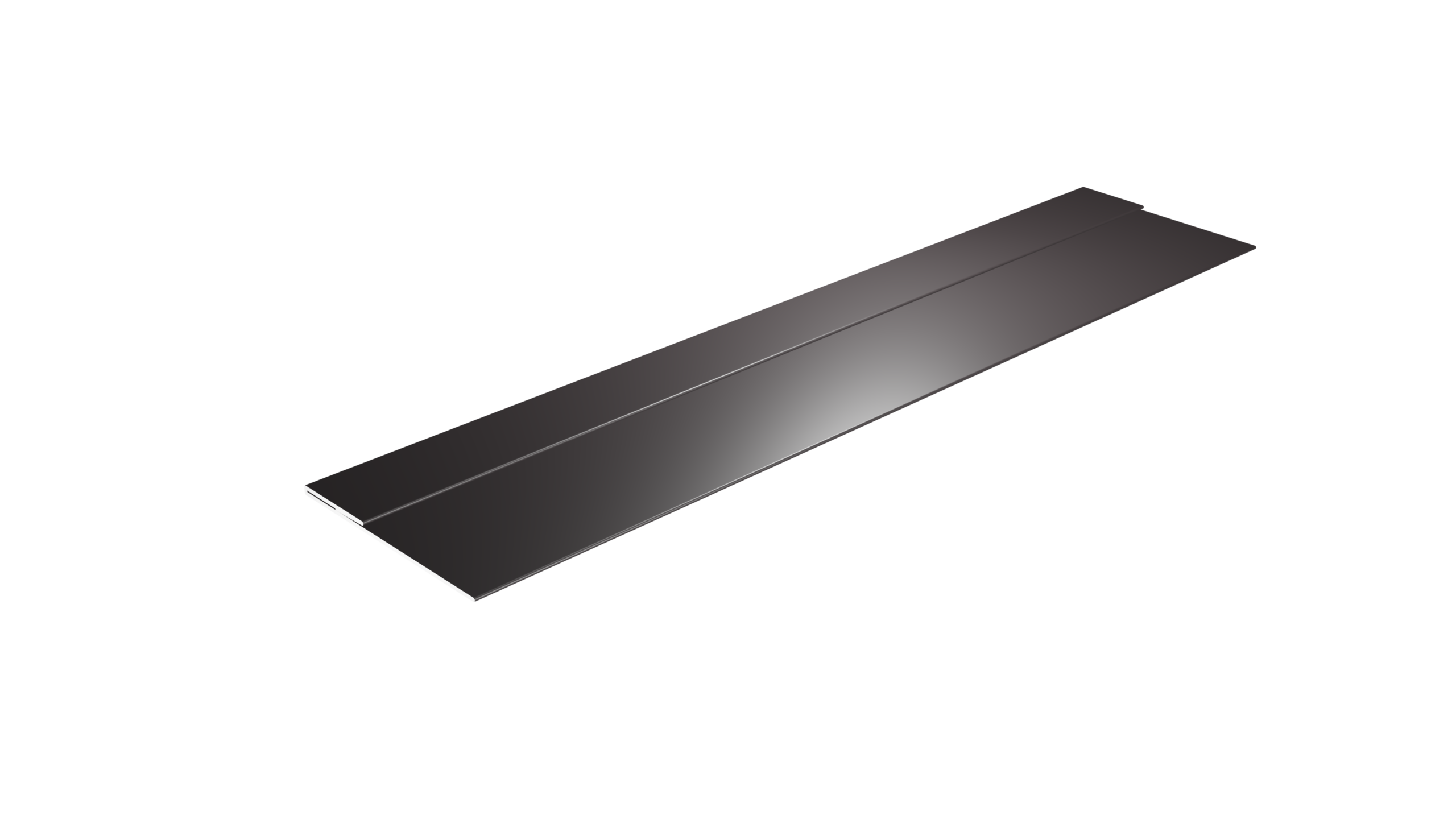

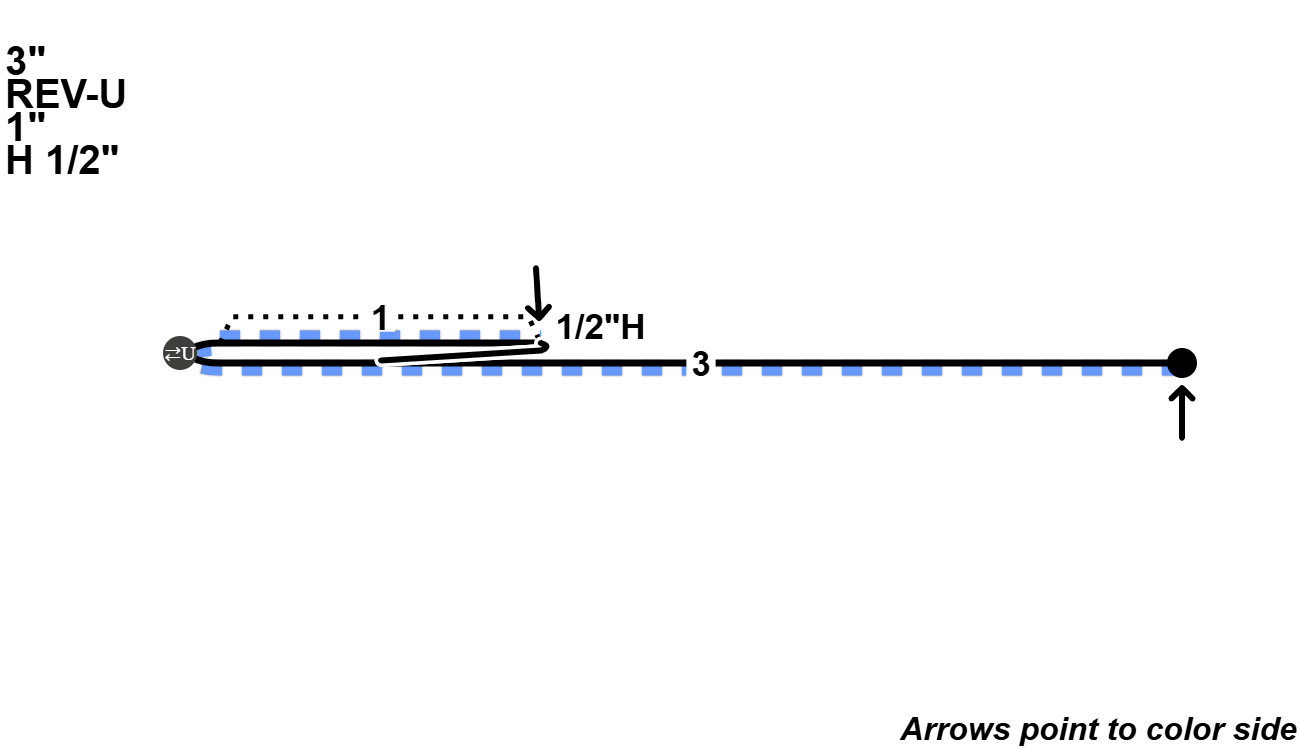

Board & Batten Hold Down Strip
• 26 gauge standard thickness
• Rib height .75″
• Panel width is 16″ coverage
• Nail strip panel shown
• Minimum 3/12 roof pitch required
• Solid decking is required, 5/8 minimum
• 35′ maximum length
Hide Measurements
Show Measurements
Hide 3D Drawings
Show 3D Drawings

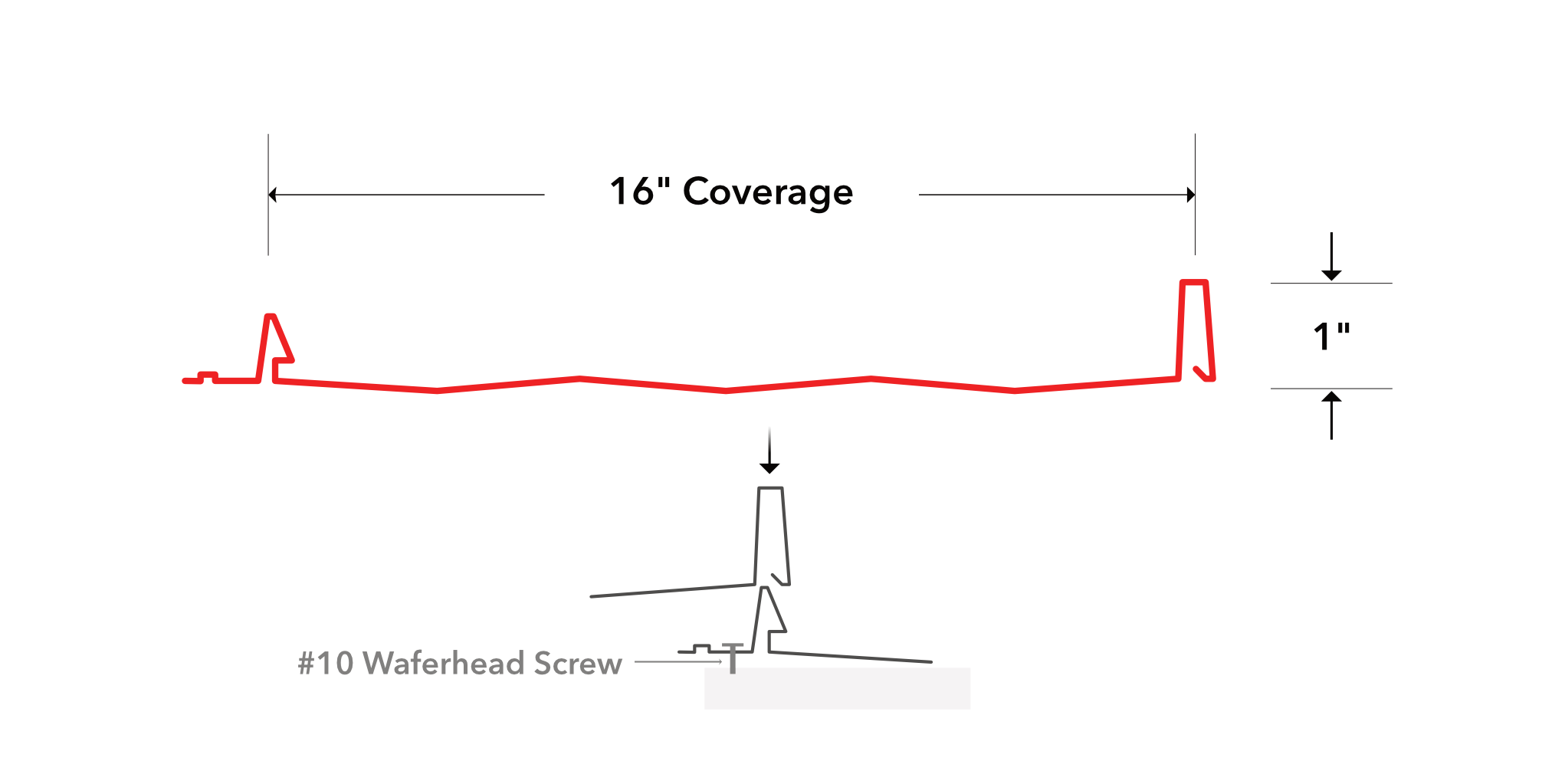

• Standard is 26 gauge.
• Rib height 1″.
• Panel width is 16″ coverage.
• Nail strip panel shown.
• Minimum 3/12 roof pitch required.
• Solid decking is required, 5/8 minimum.
• 35′ maximum length.
Hide Measurements
Show Measurements
Hide 3D Drawings
Show 3D Drawings
Commercial Panel

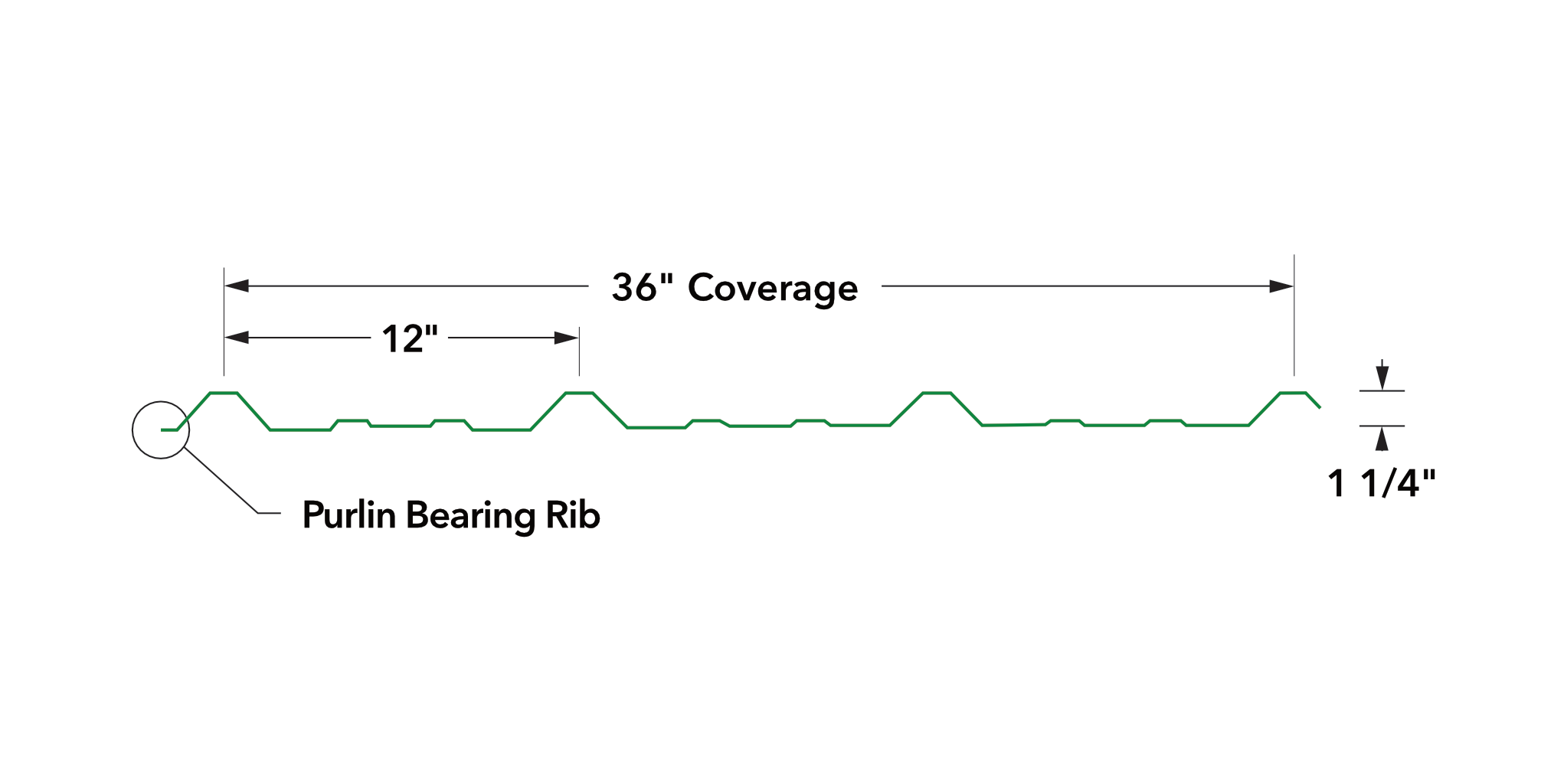

“R” panel with commercial rib – Components and Profiles

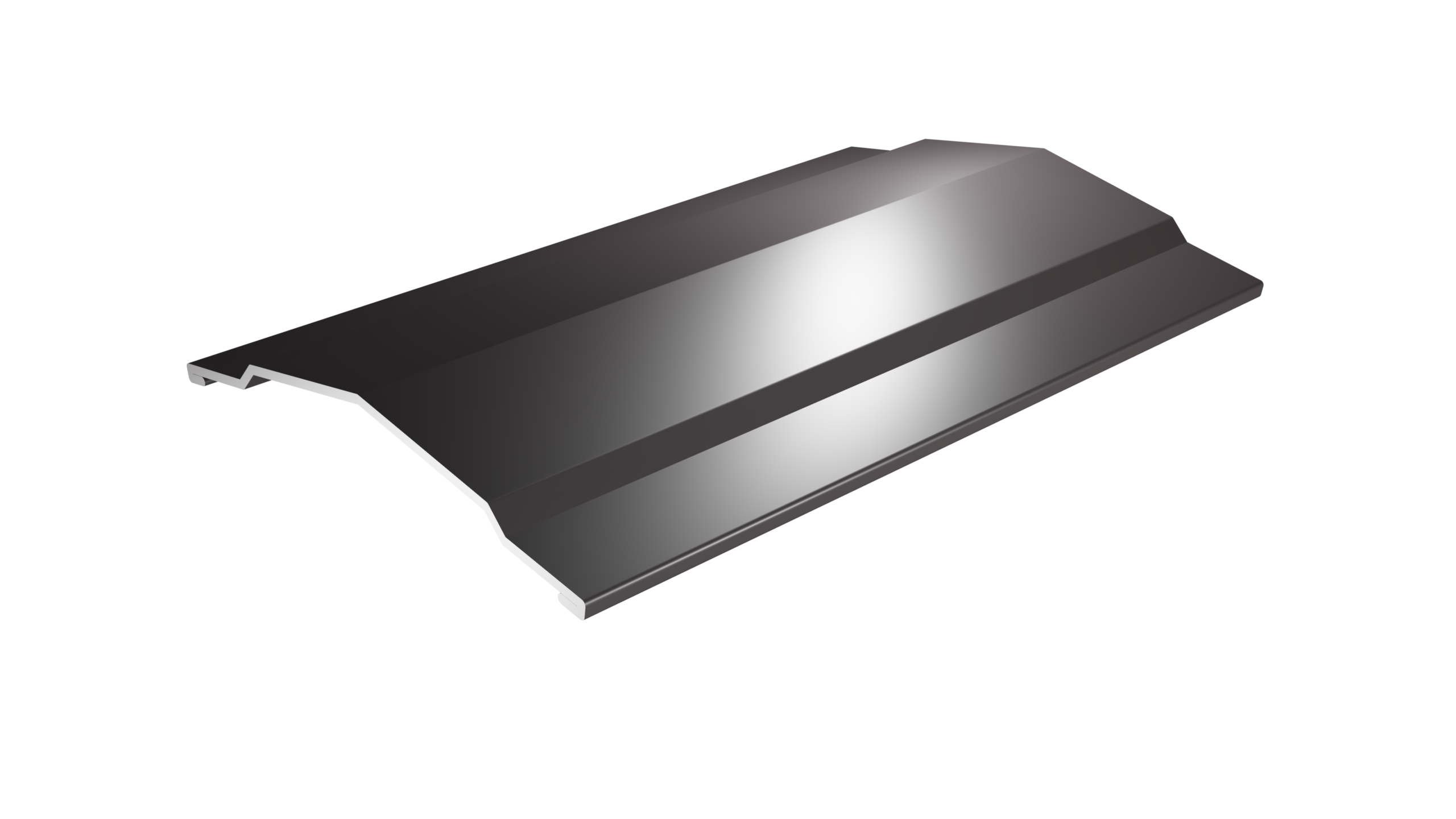

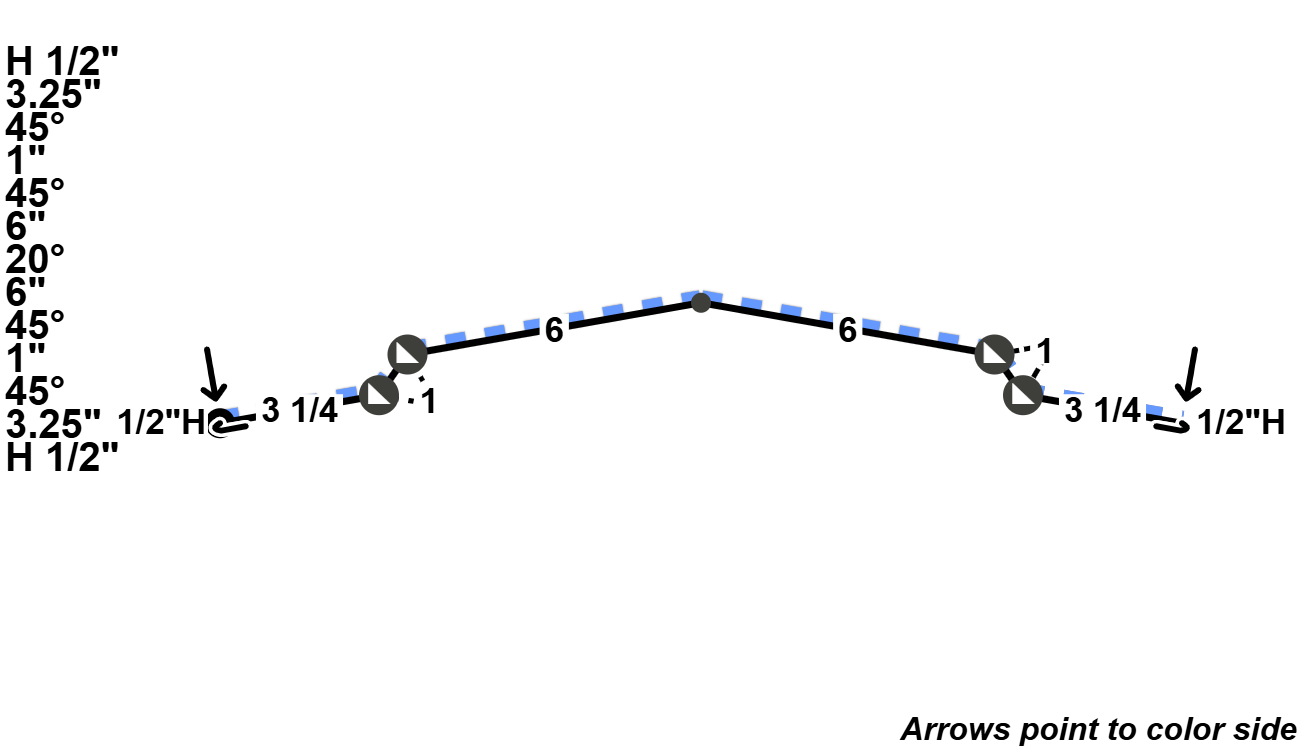

Commercial Ridge Cap

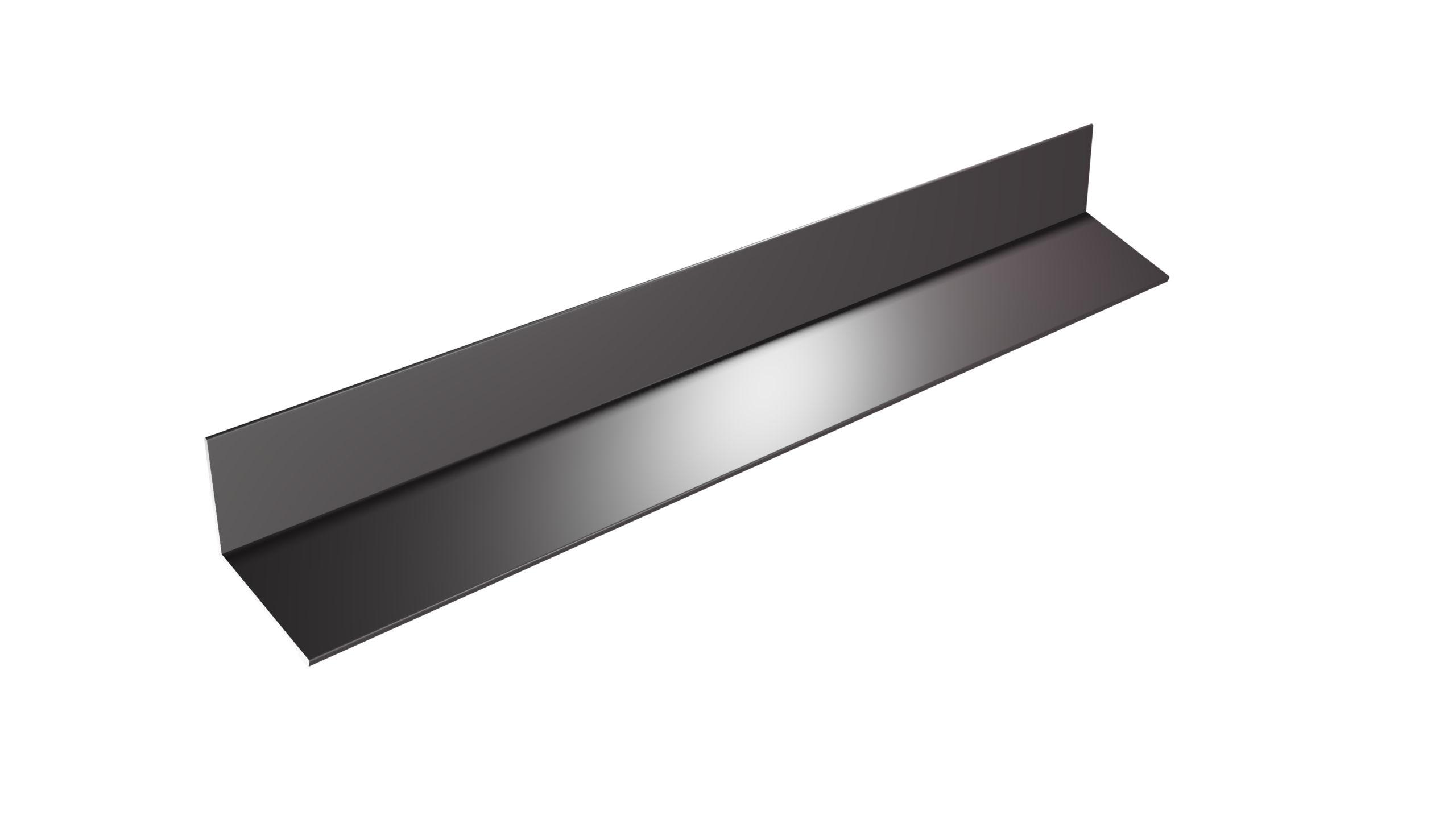

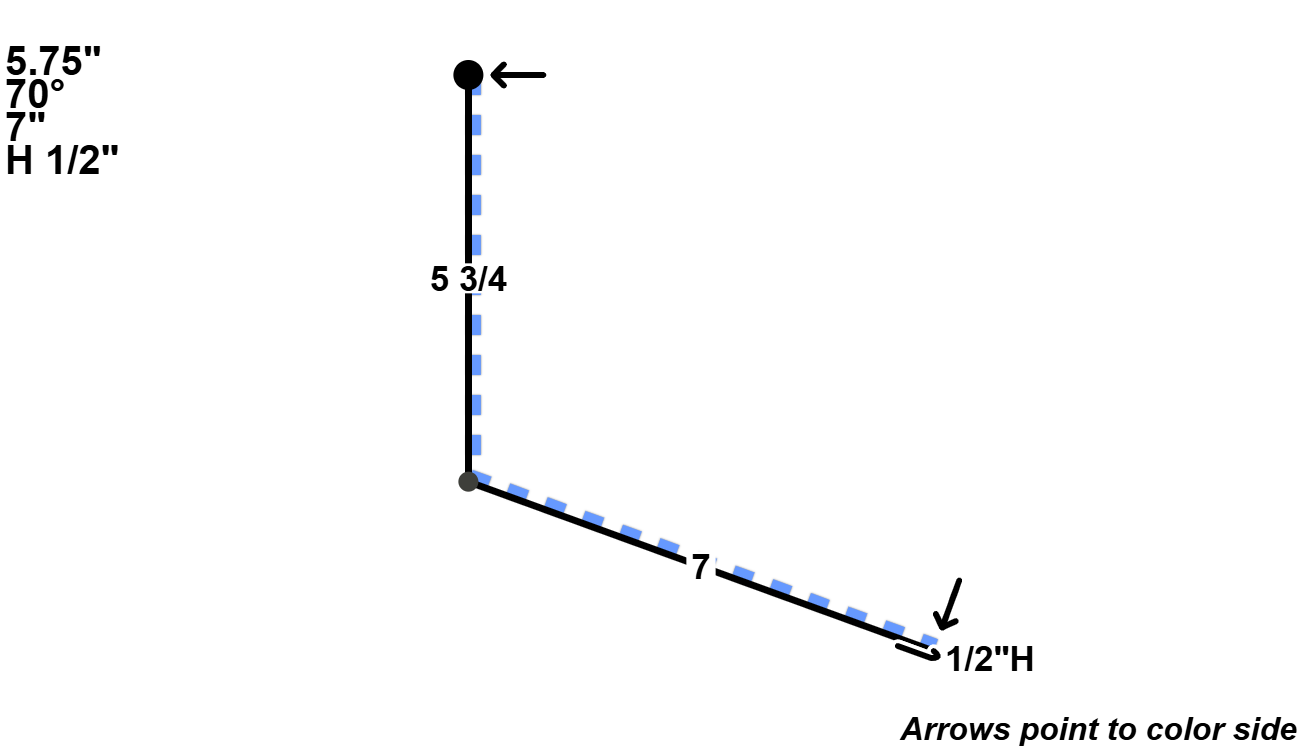

Commercial End Wall Flashing

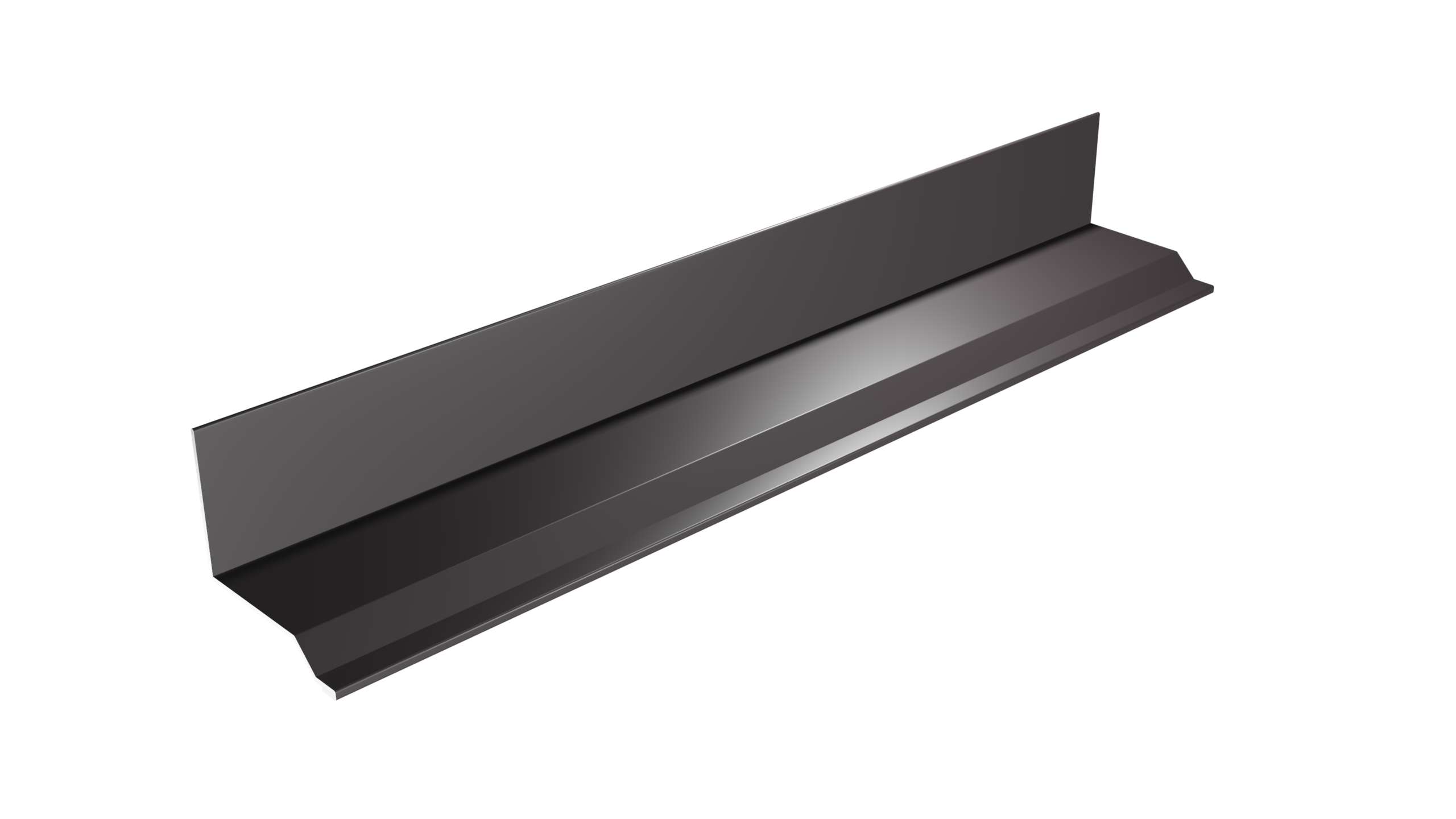

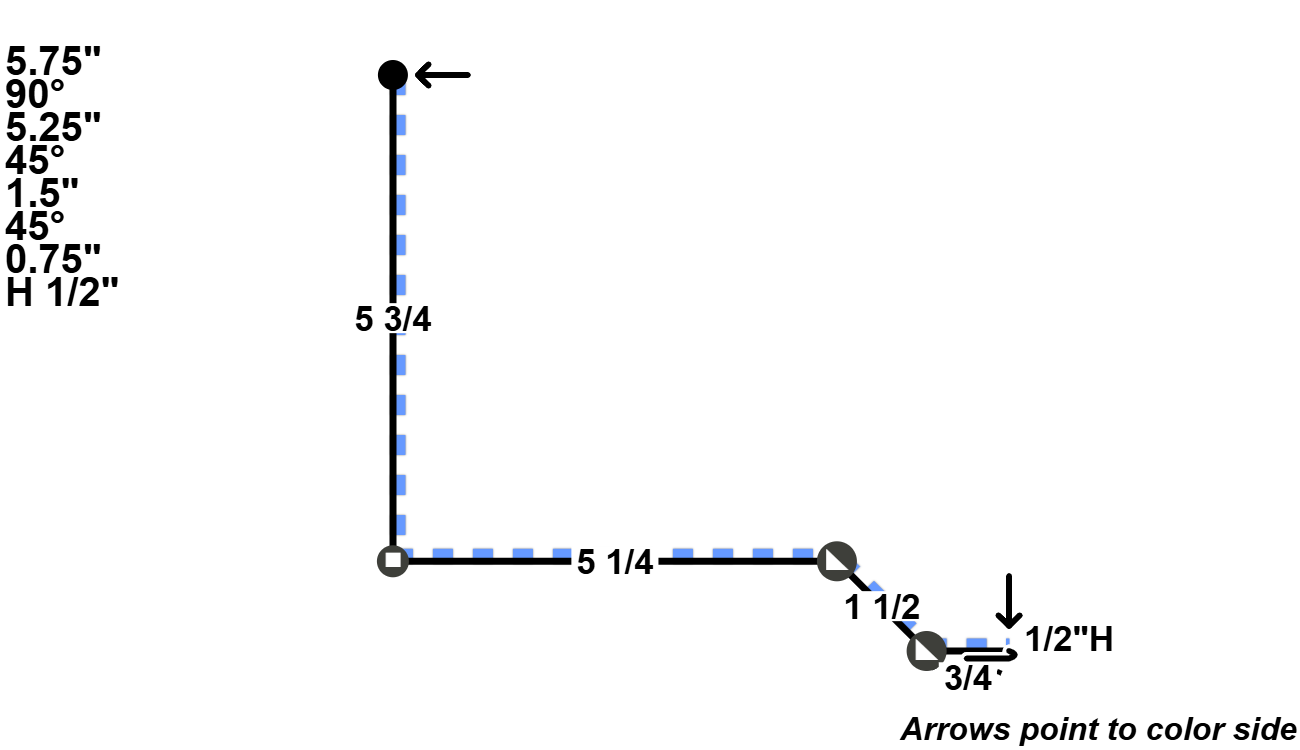

Commercial Side Wall Flashing

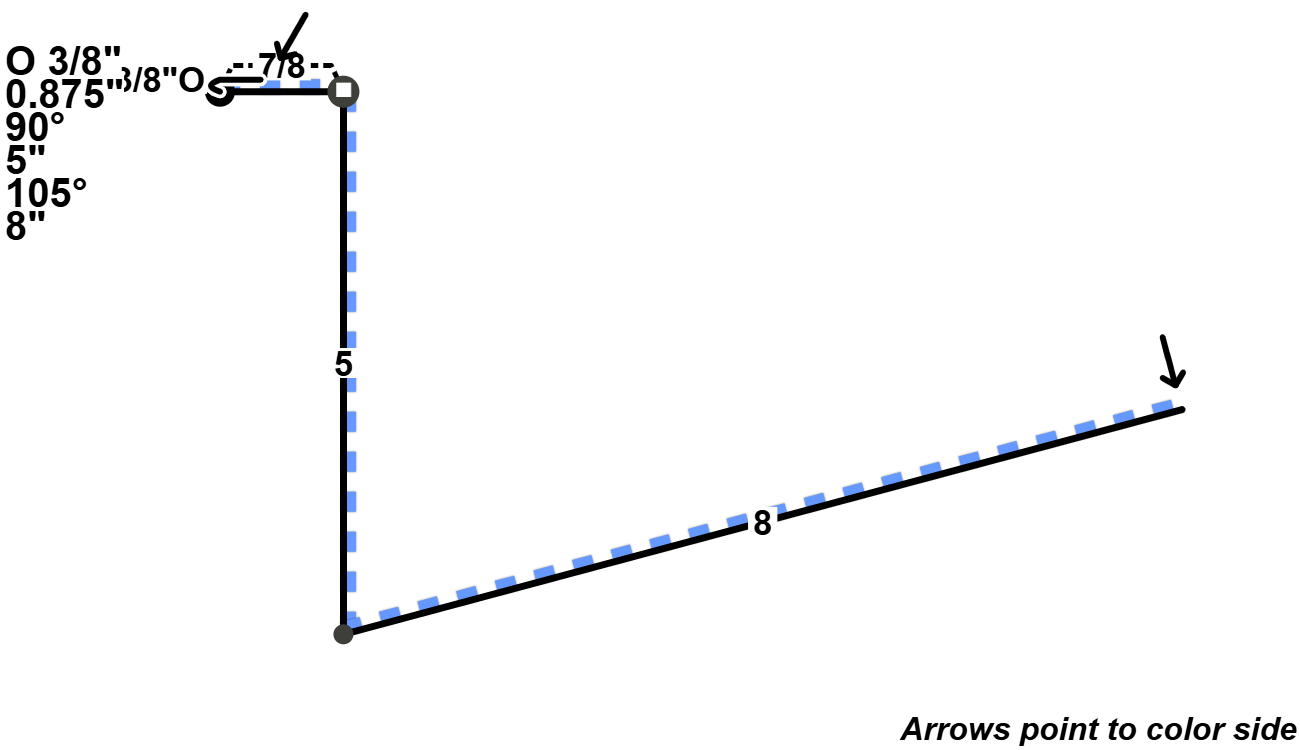

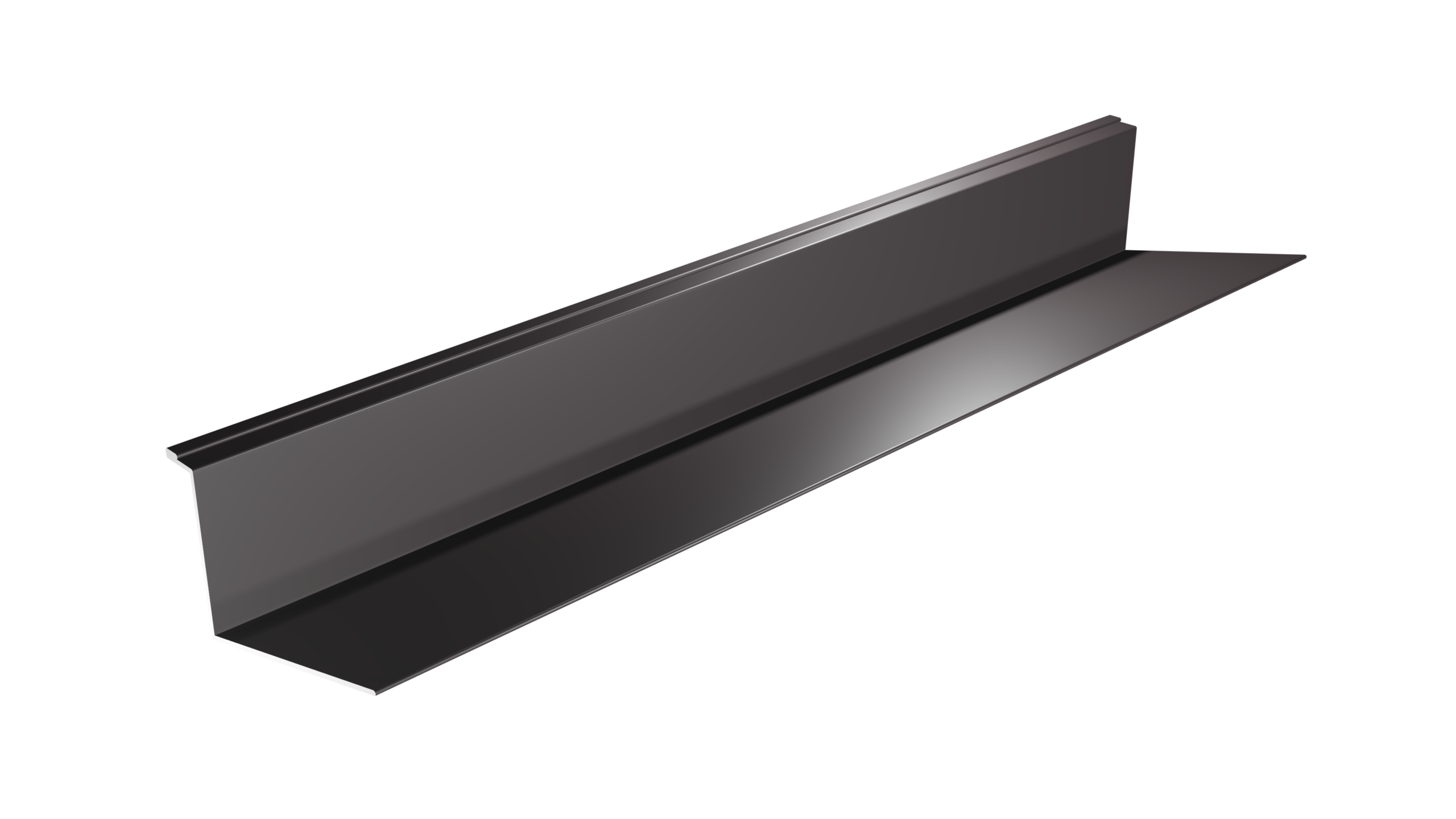

Commercial Chimney Top Flashing

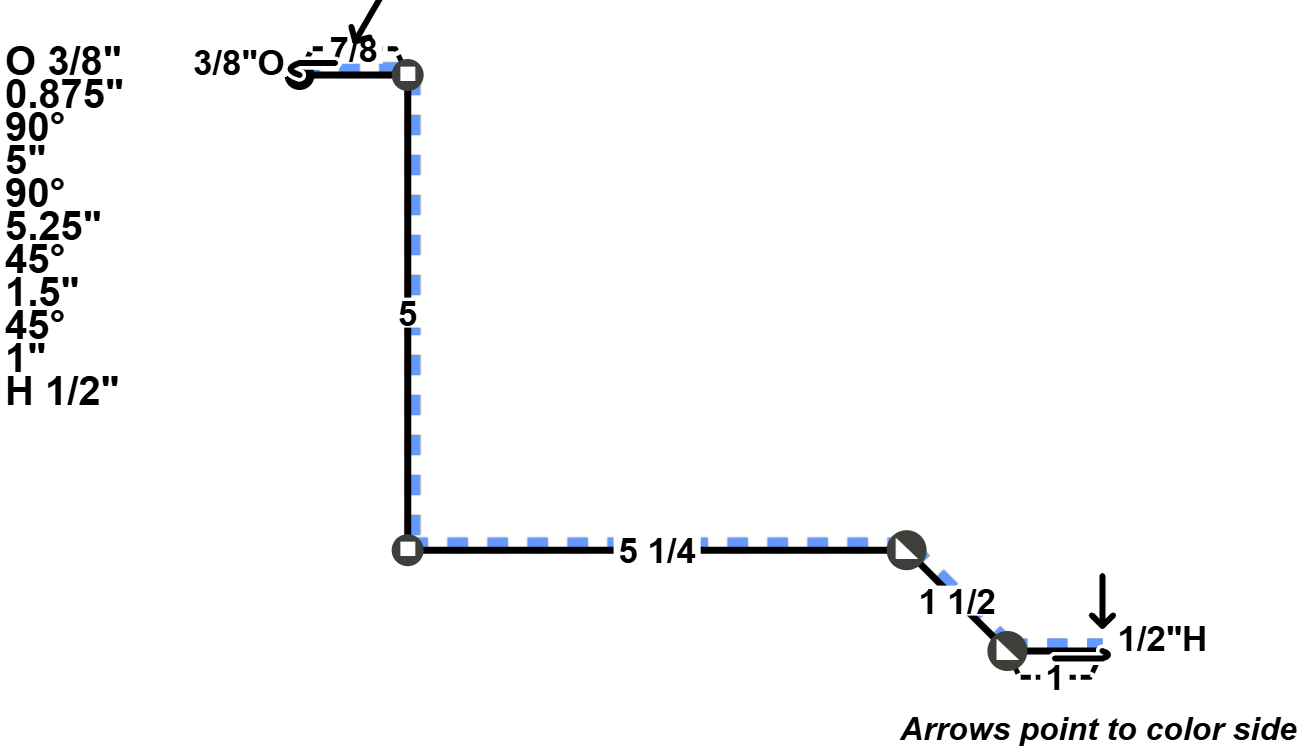

Commercial Chimney Side Wall Flashing

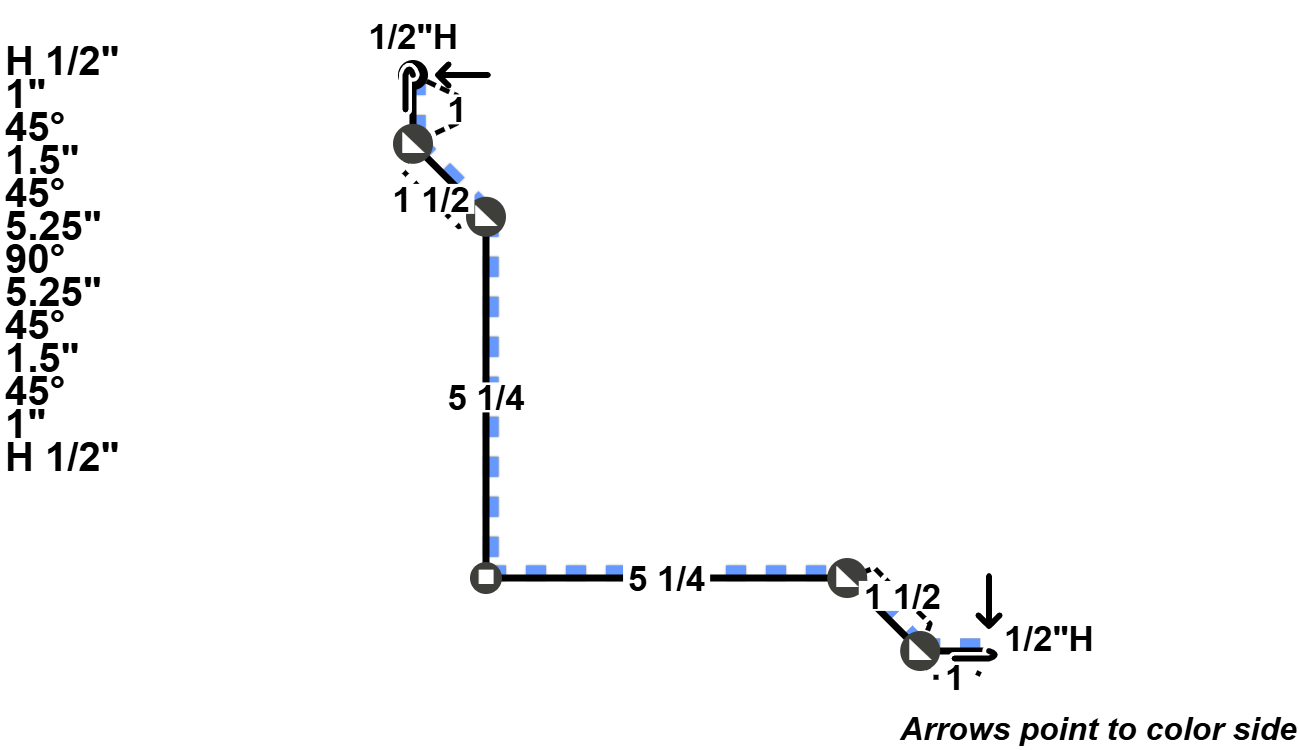

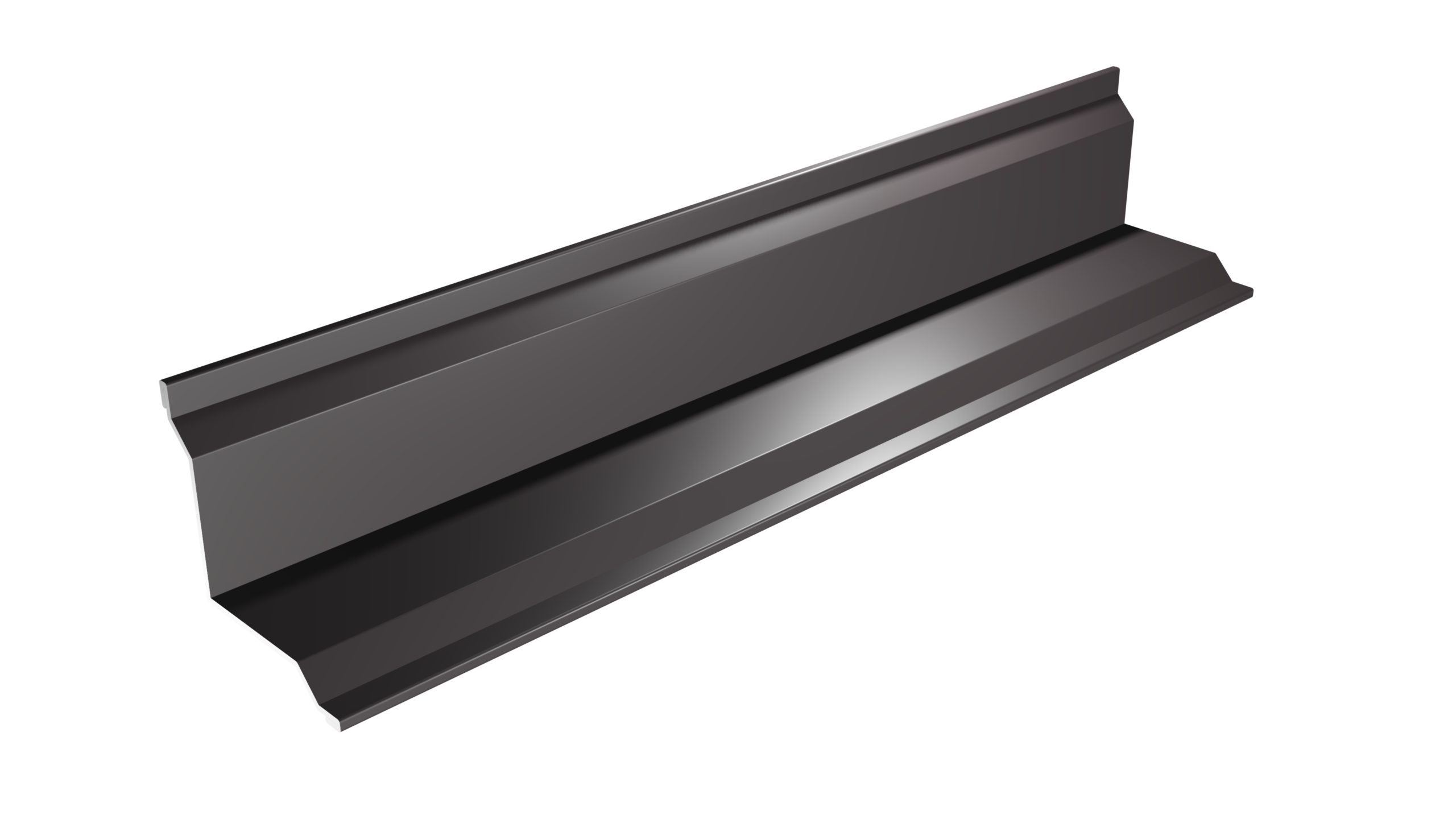

Commercial Inside Corner

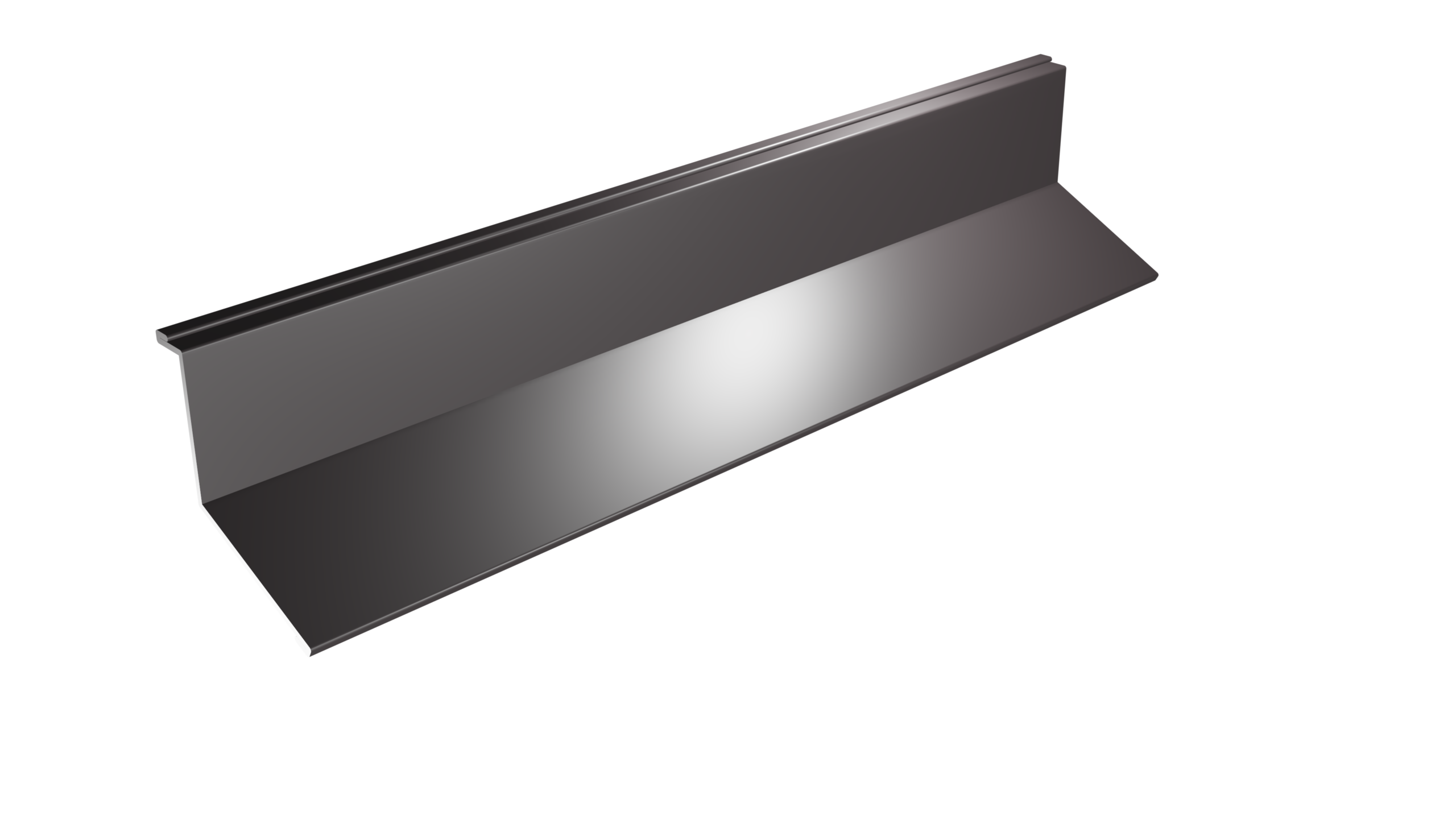

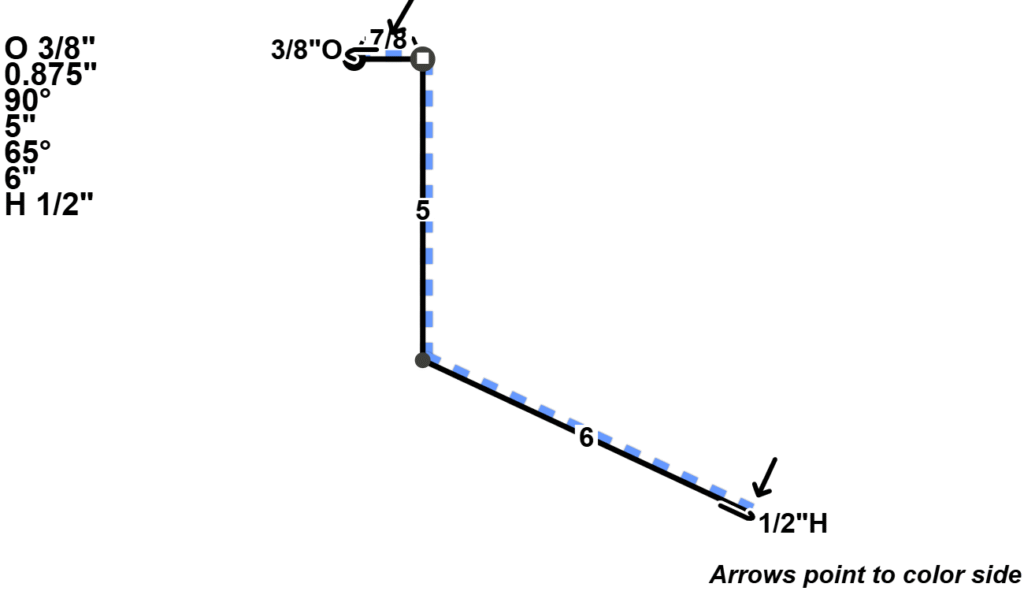

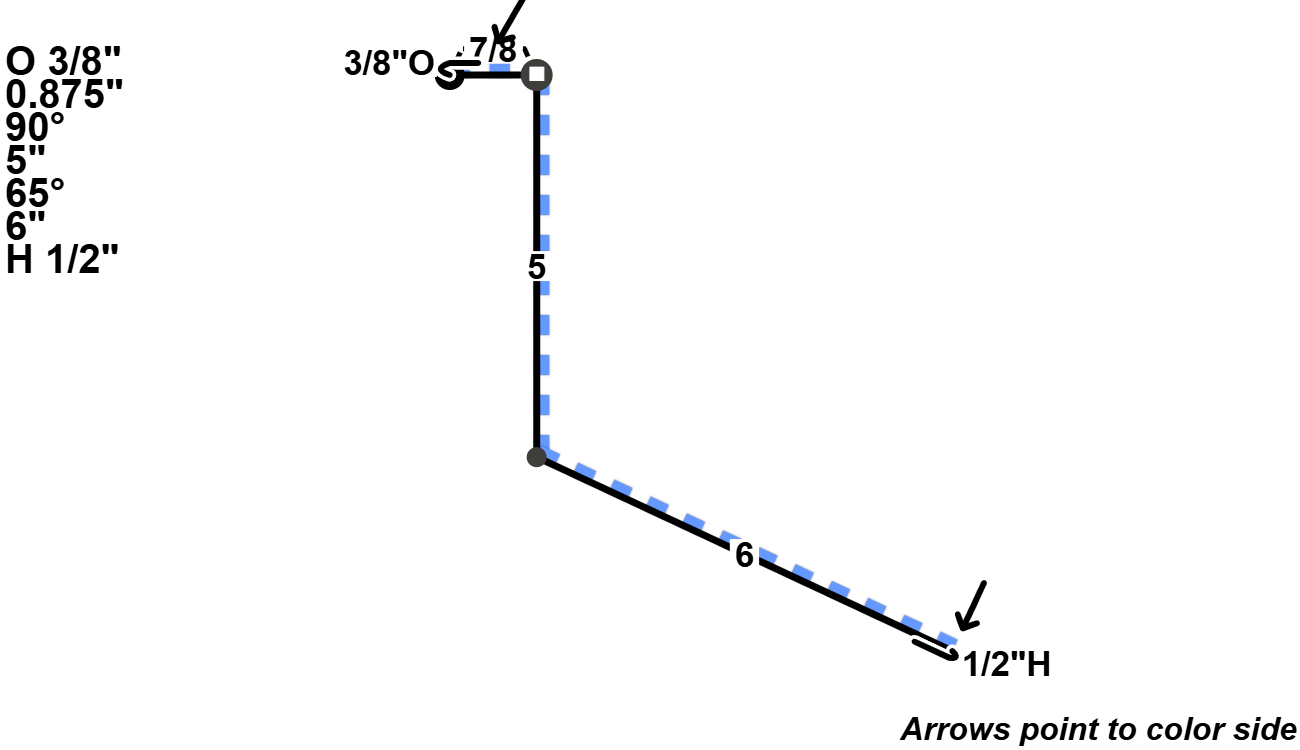

Commercial Chimney Bottom Flashing

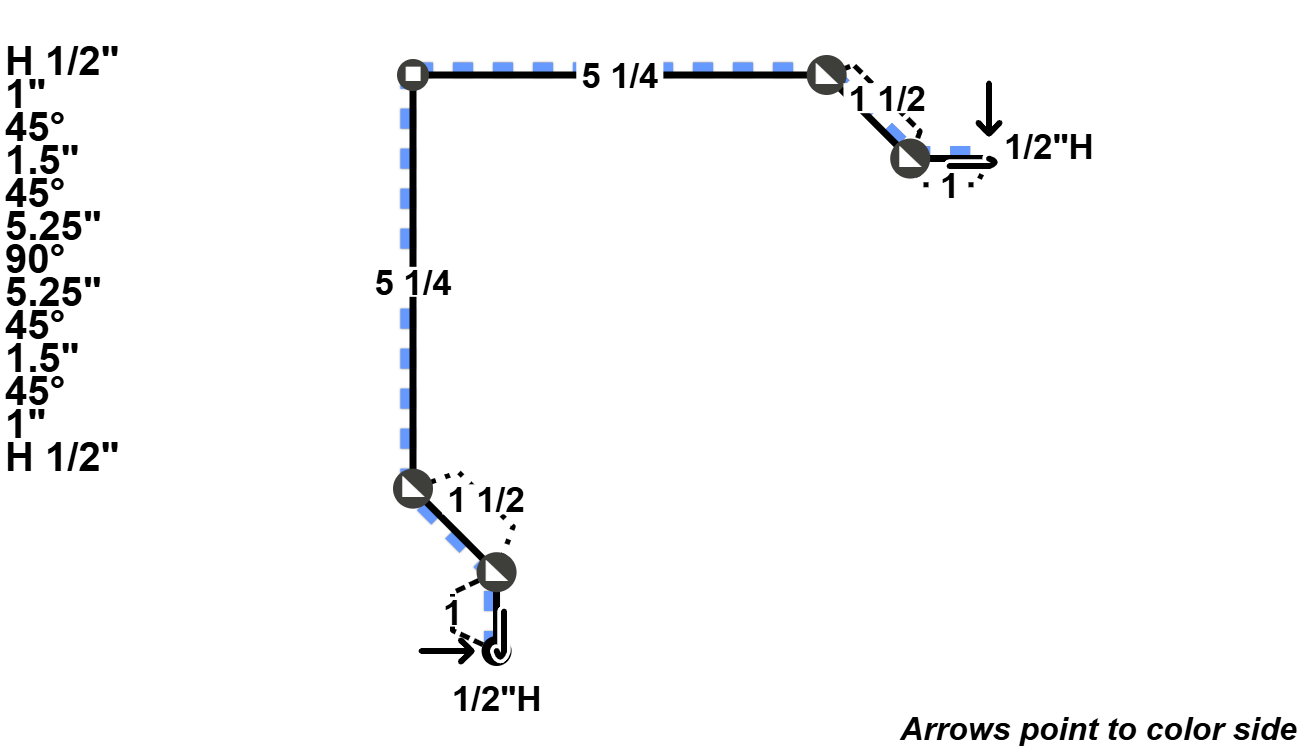

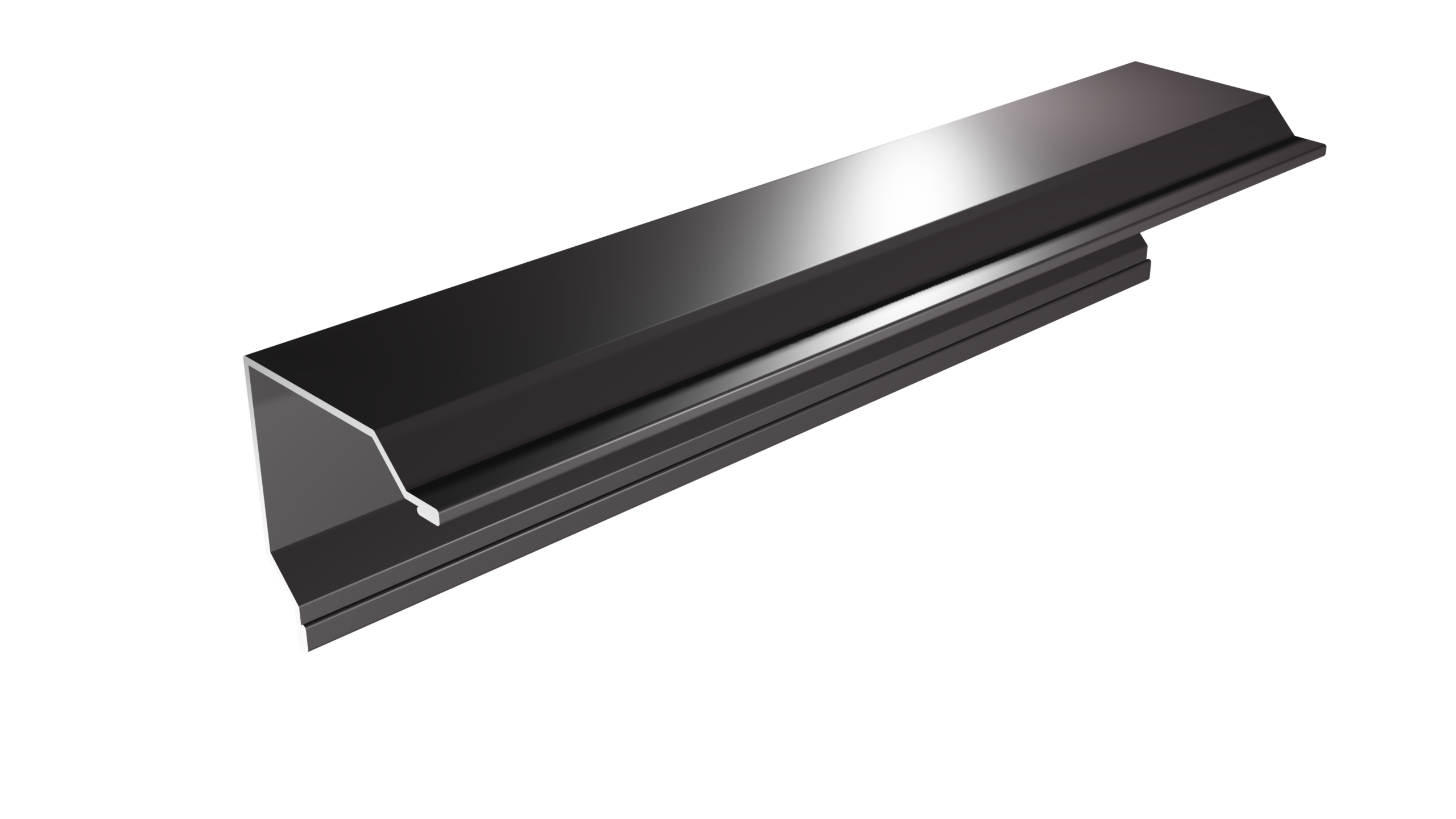

Commercial Rake And Corner

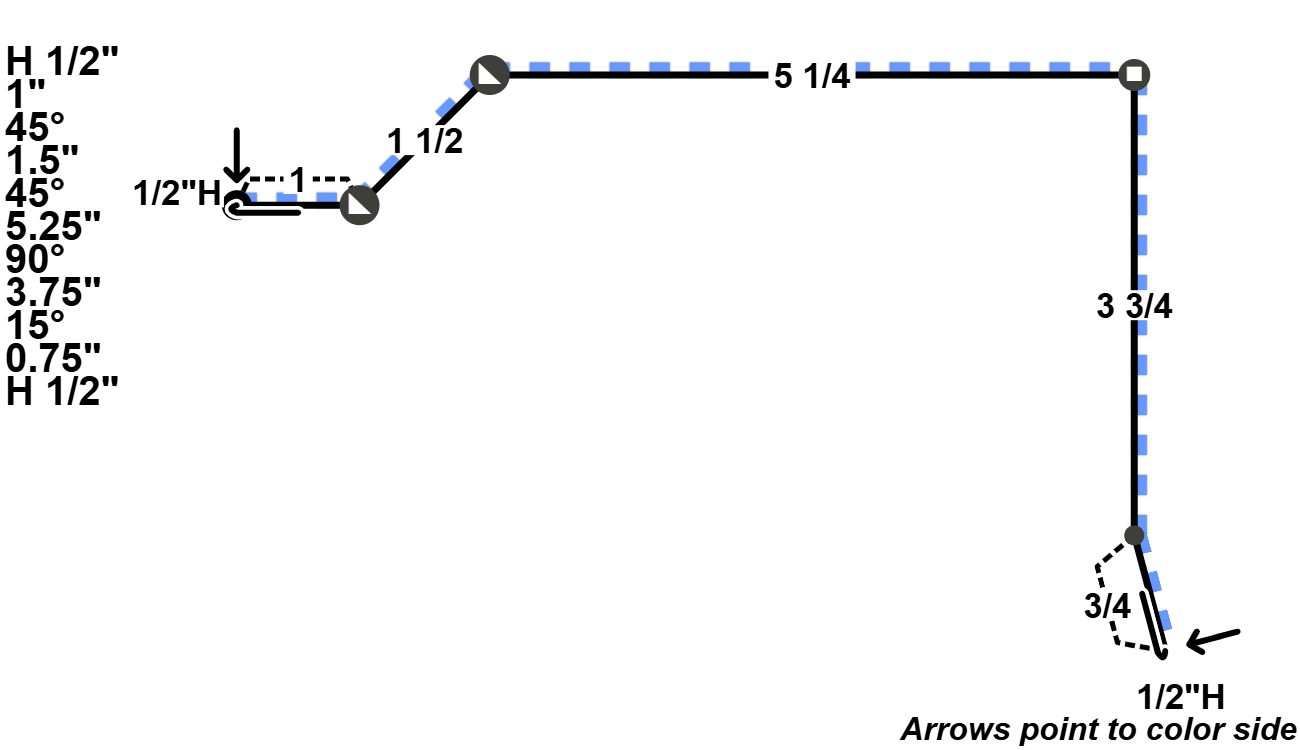

Commercial (Residential Style) Rake

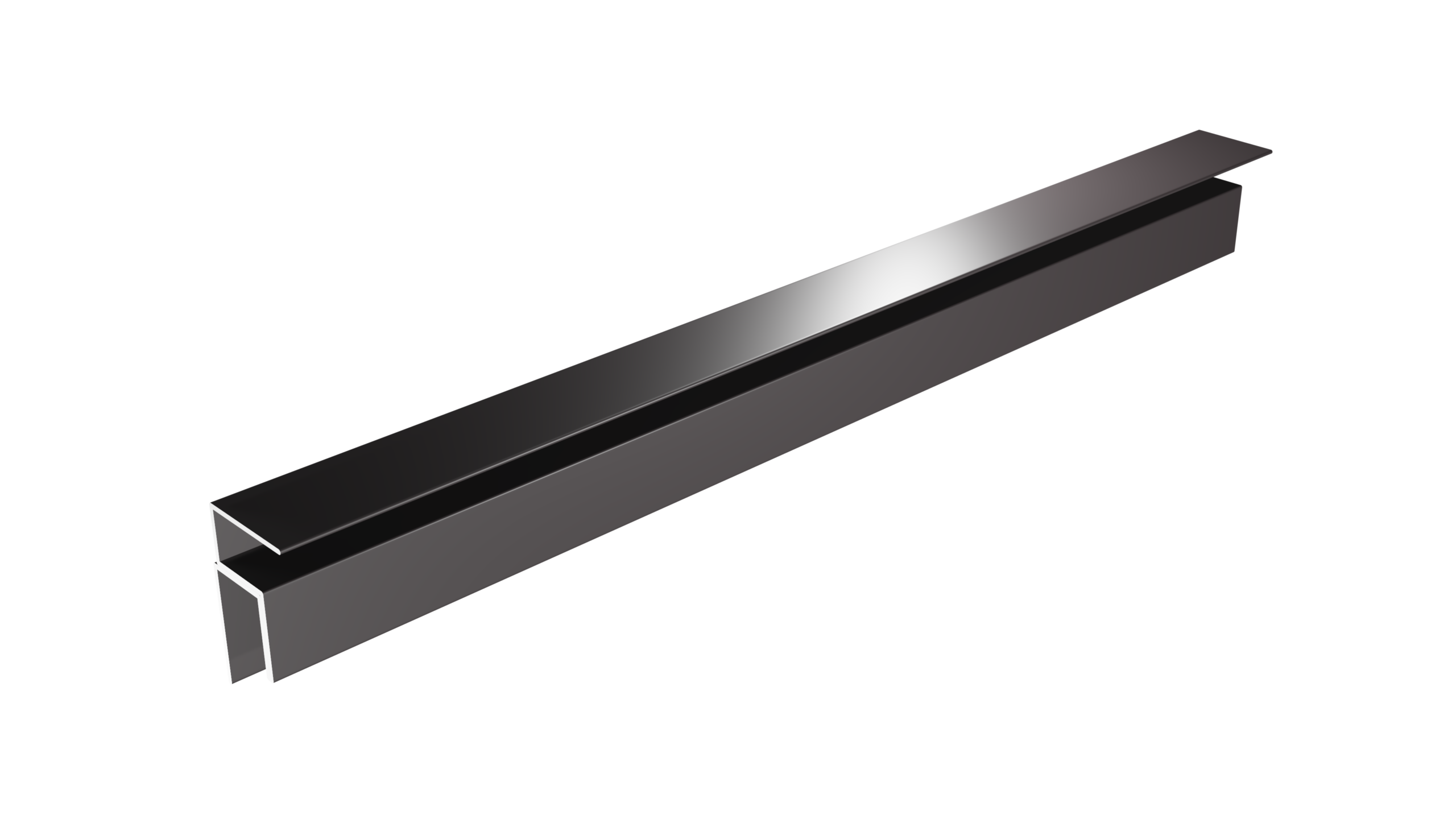

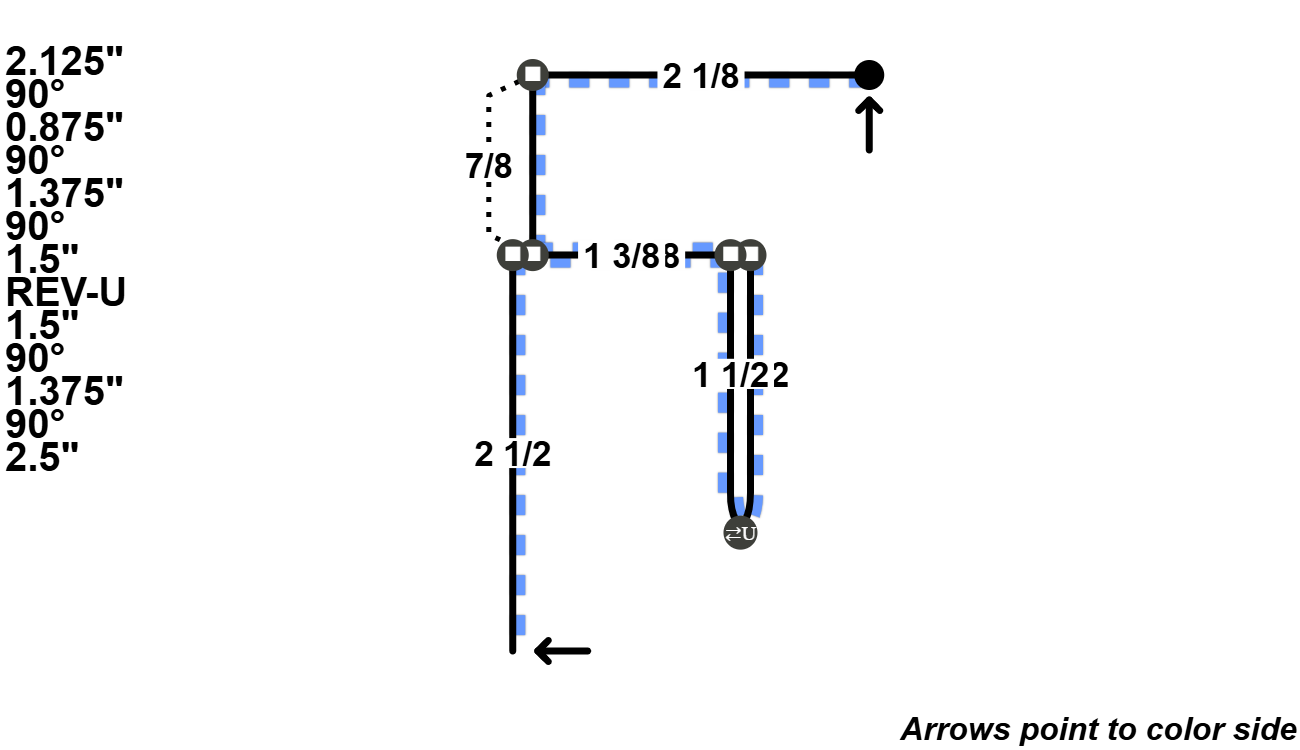

Commercial "F" and "J" Channel

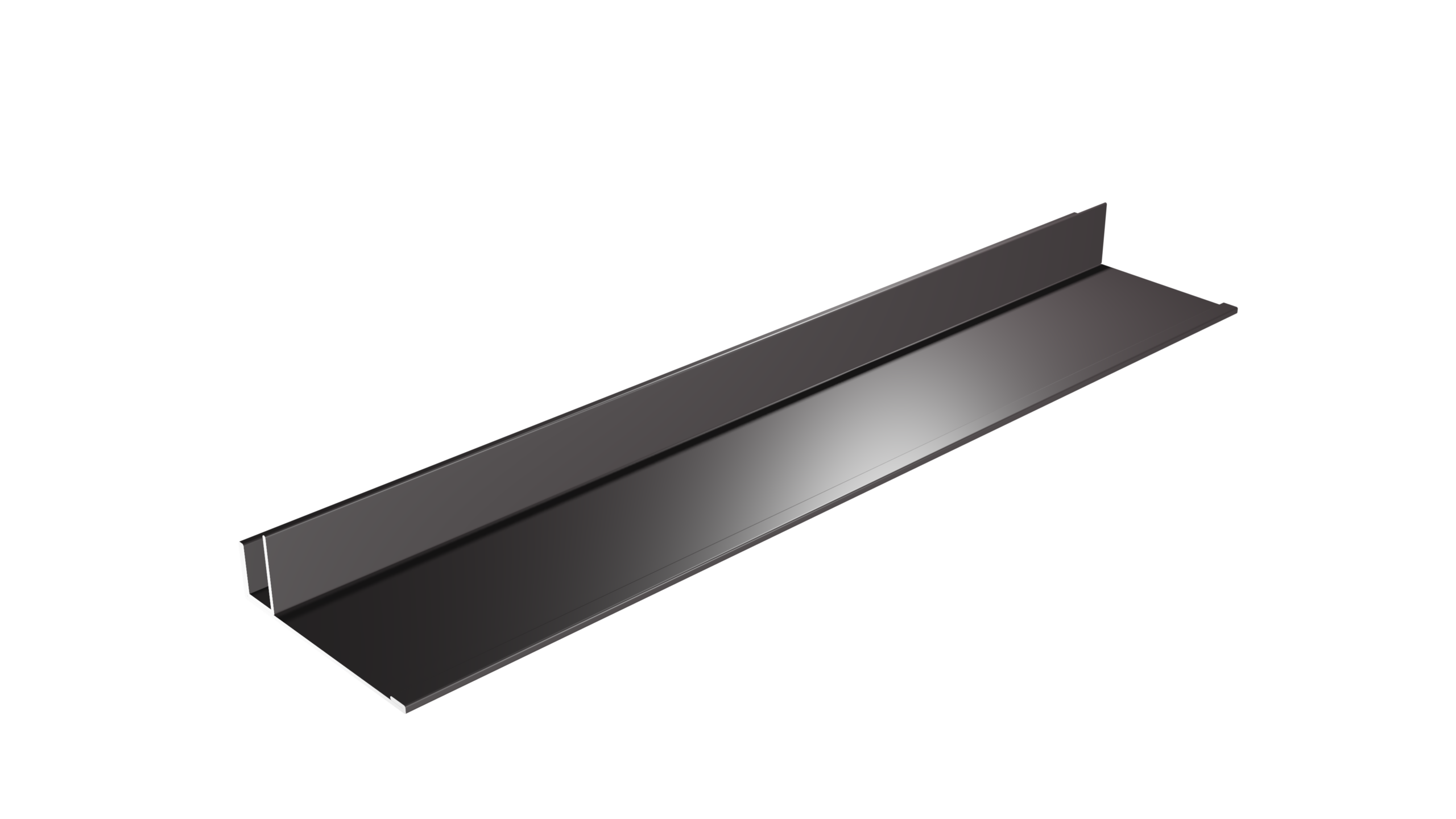

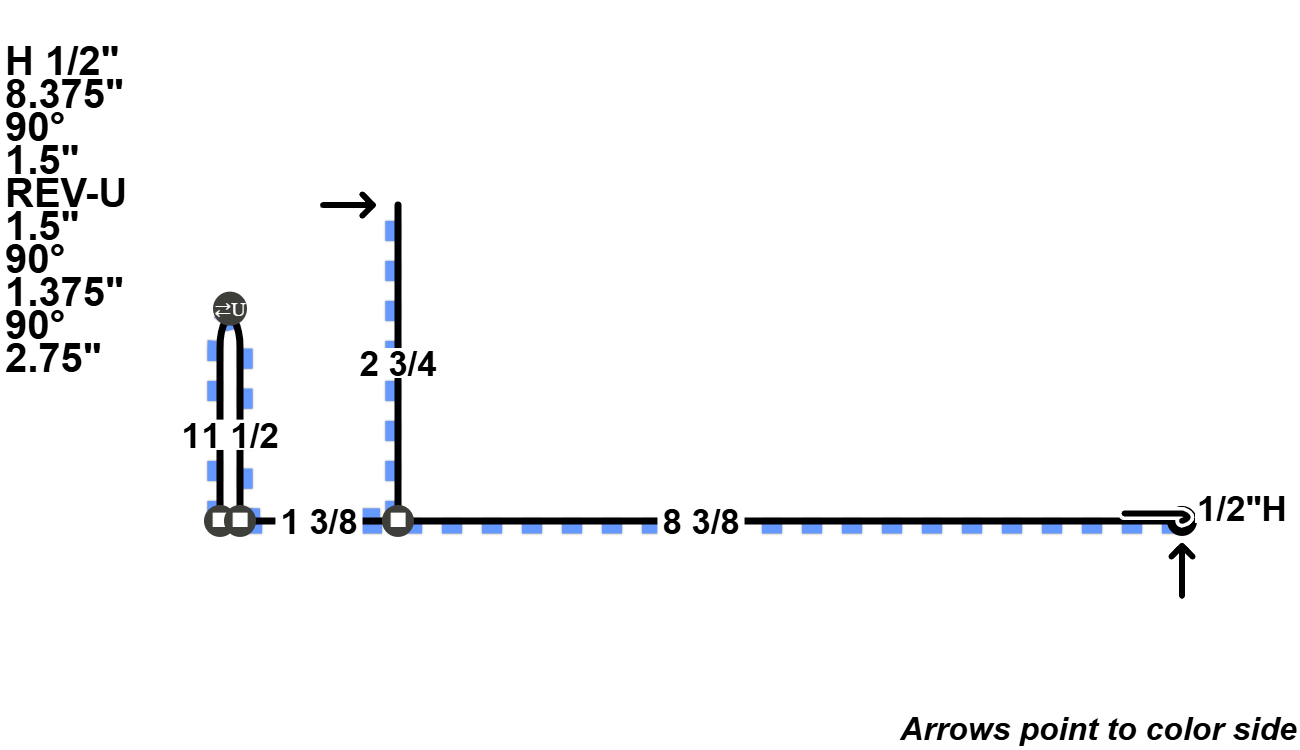

Commercial Overhead Door

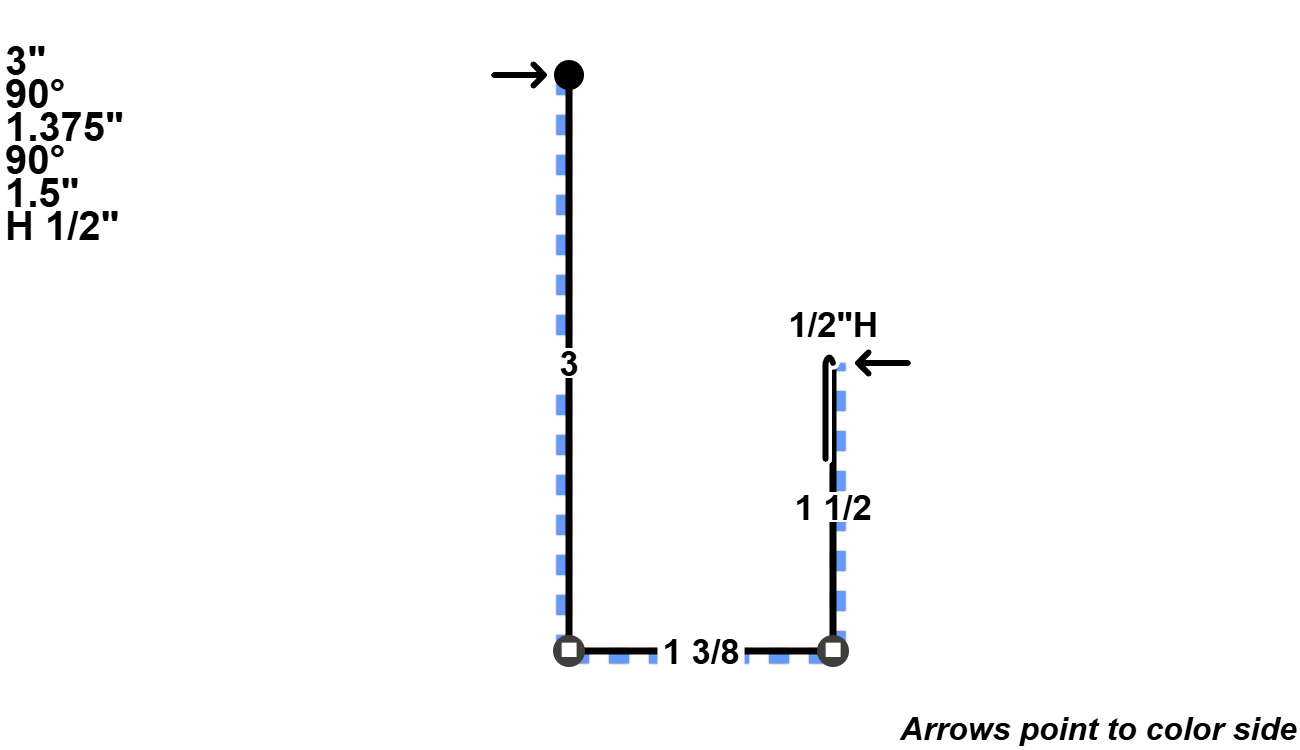

Commercial "J" Channel

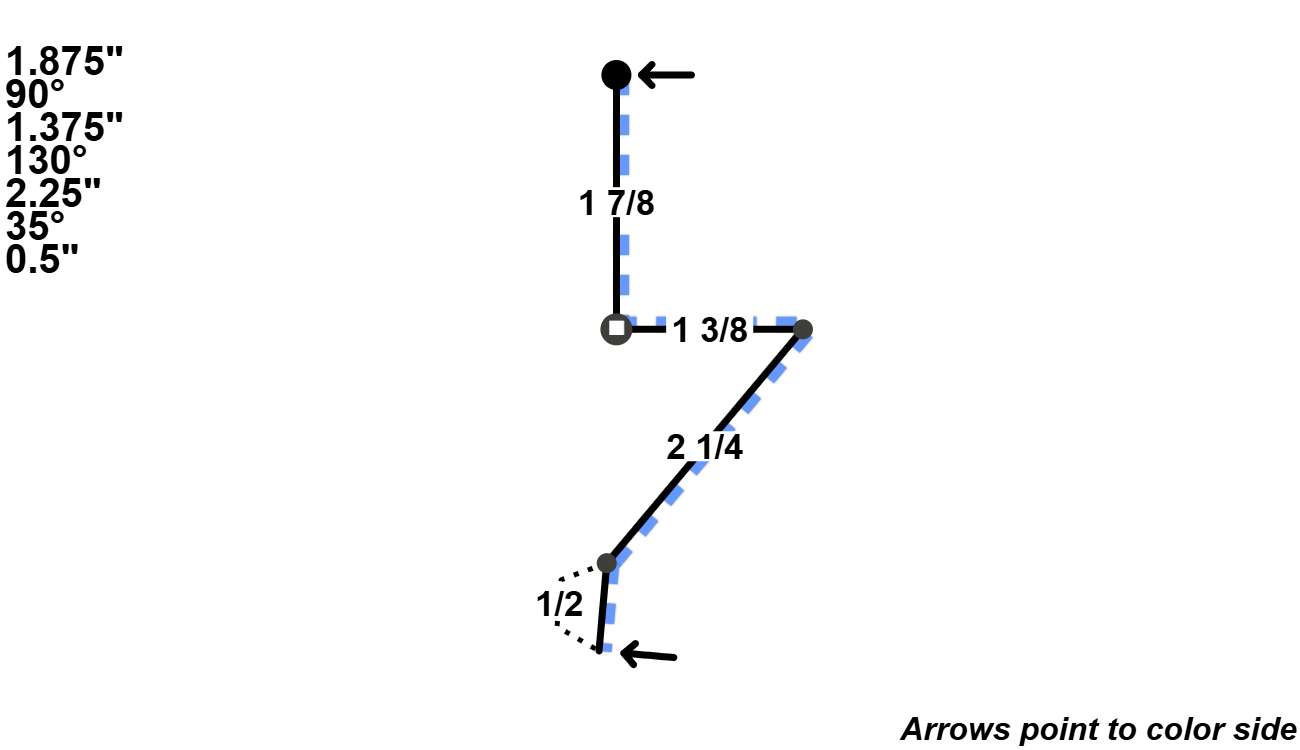

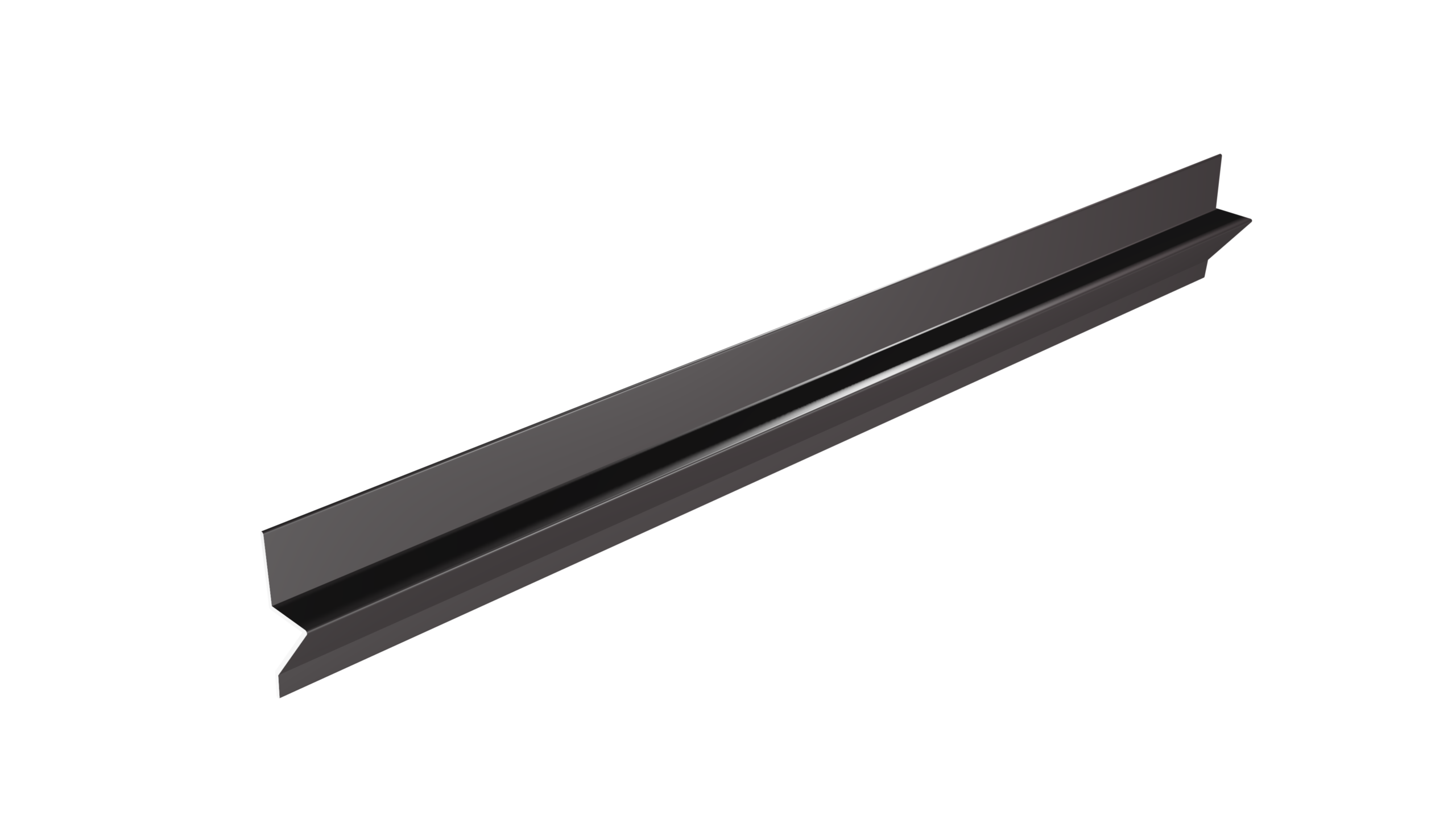

Commercial Rat Guard

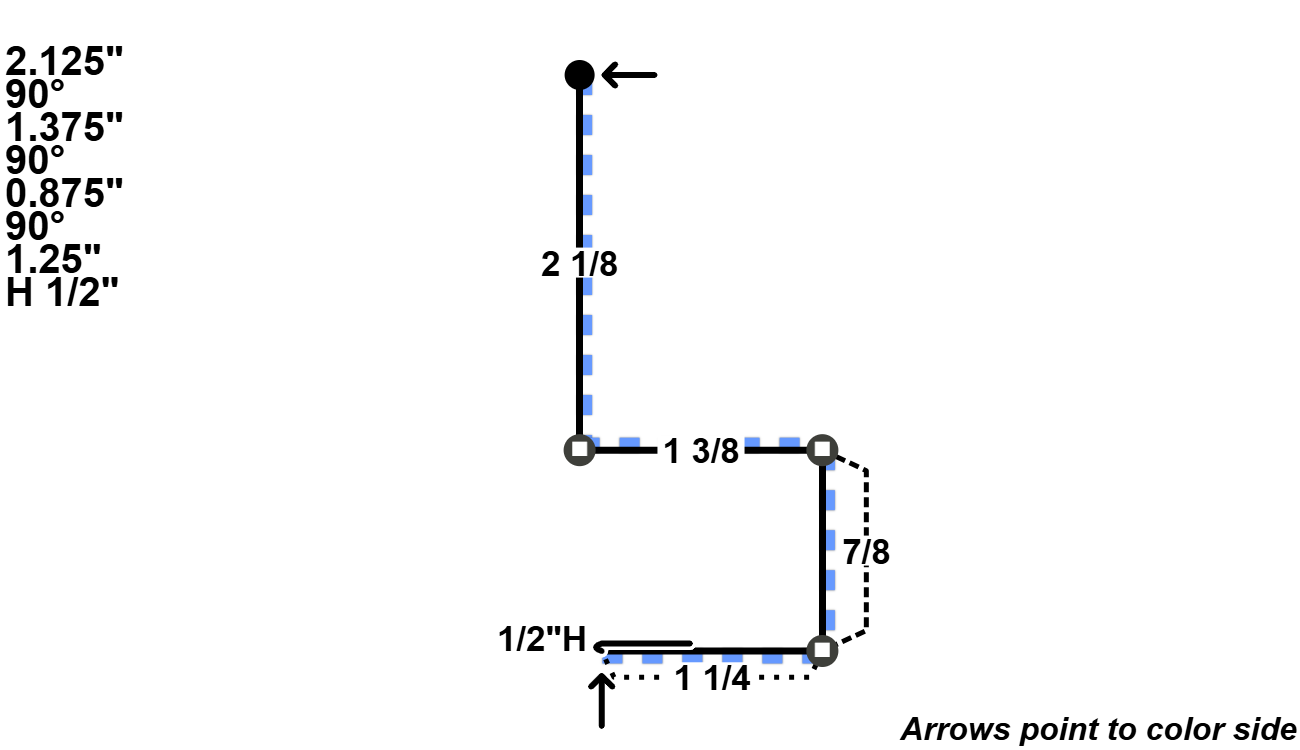

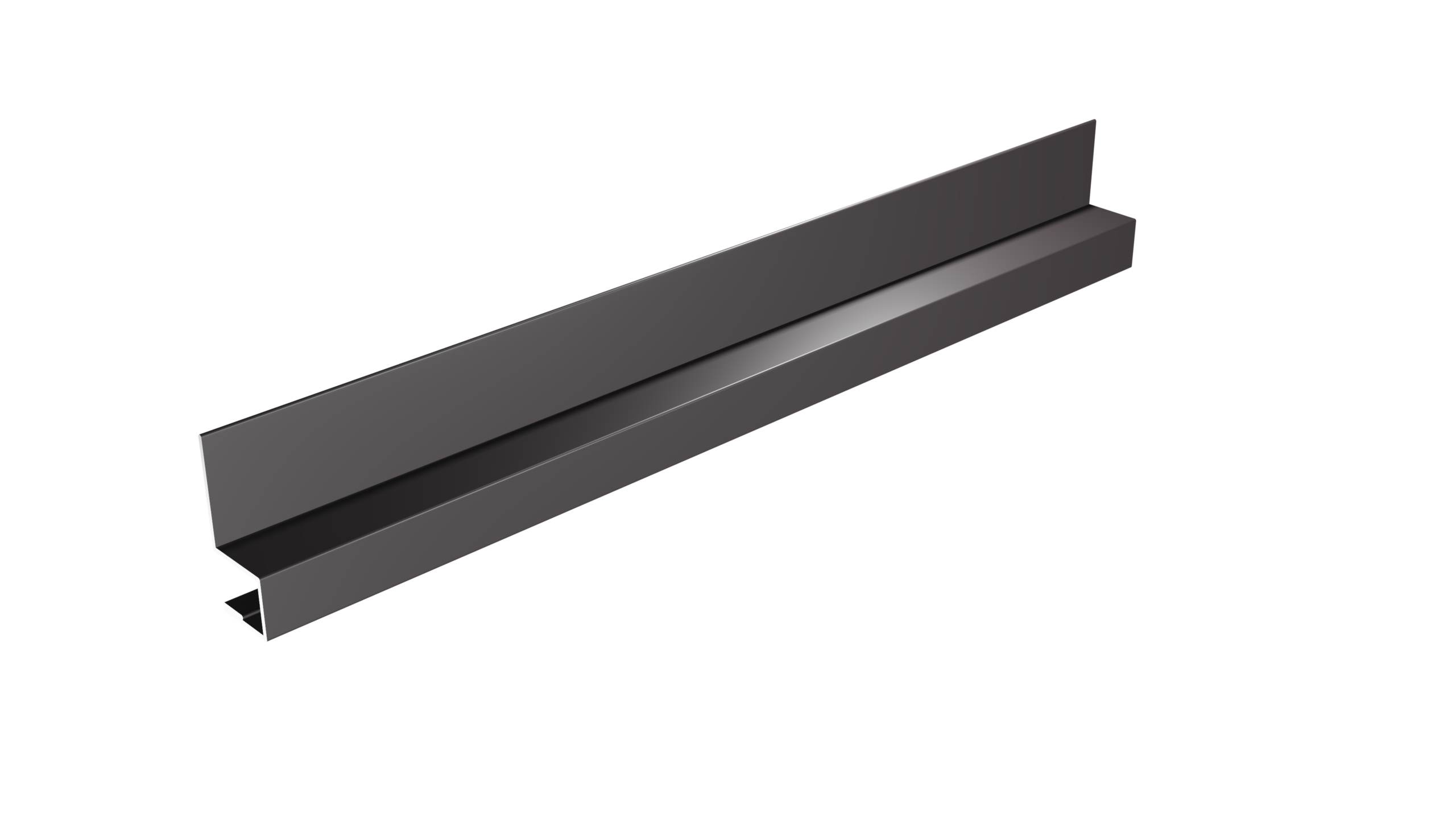

Commercial Square Base

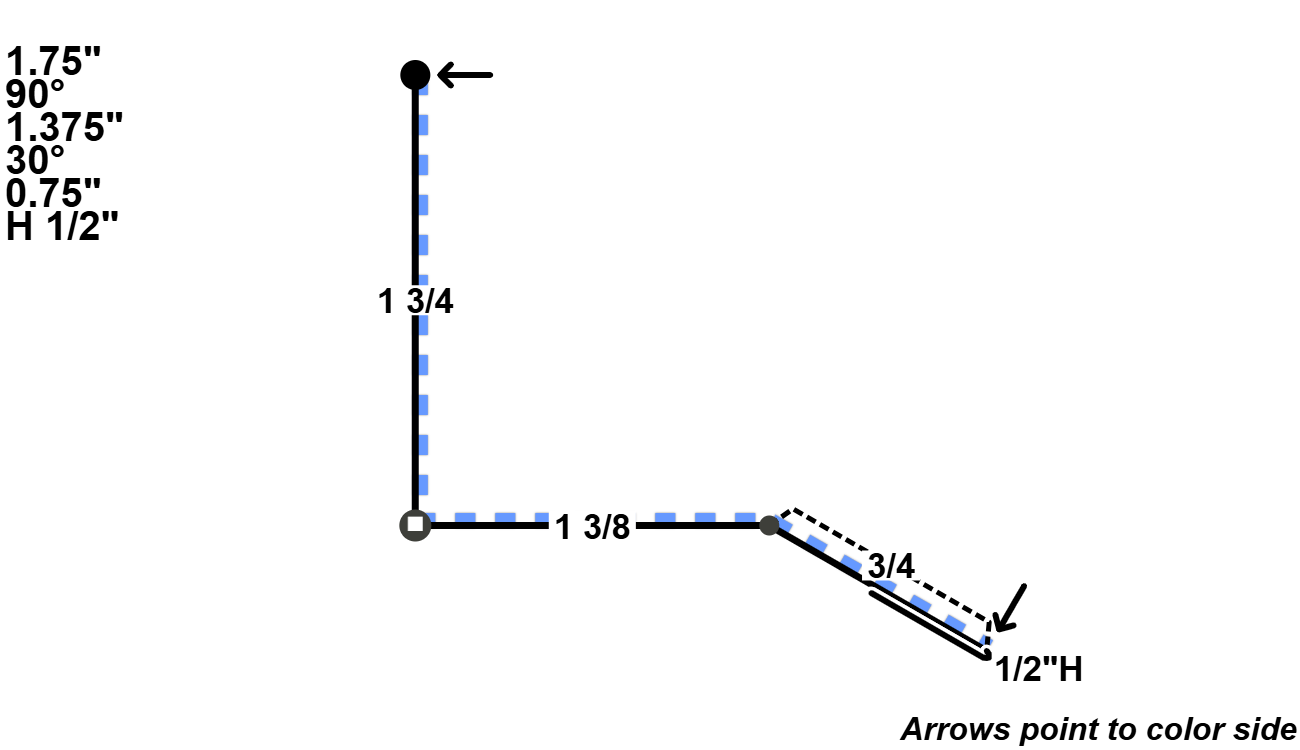

Commercial Window Cap

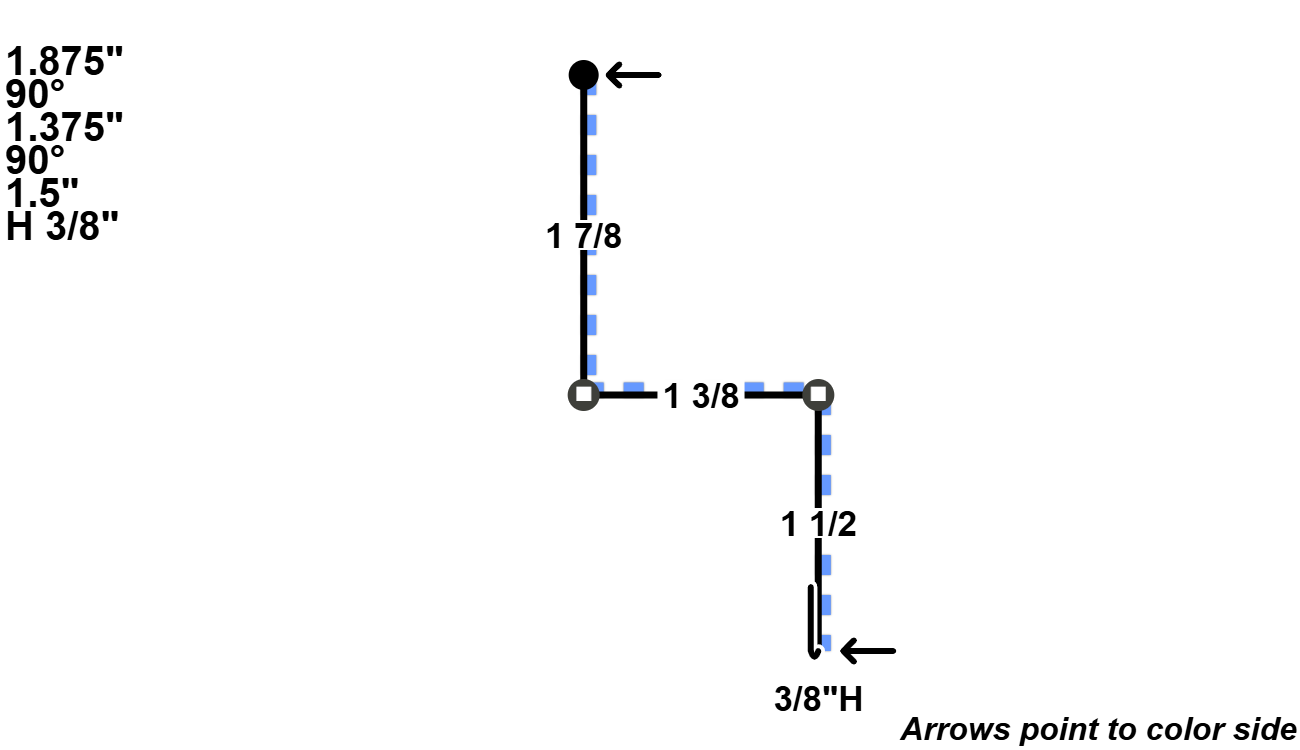

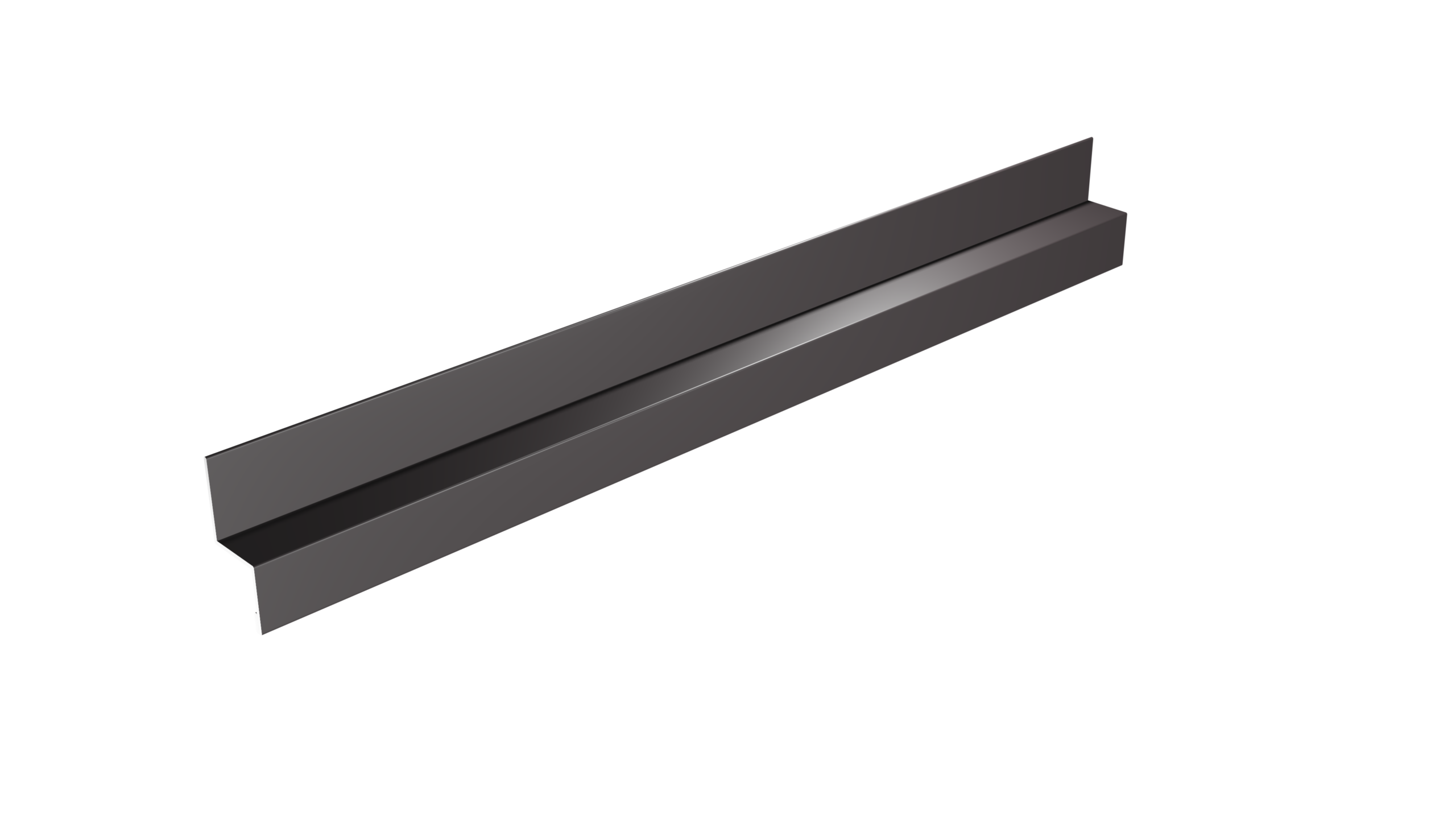

Commercial Double Angle
• Strong Span will span up to 5′ purlin spacing on roof application.
• “Purlin Bearing Rib” as shown below to provide for roof application.
• Minimum 1/12 roof pitch required (Butyl tape is required on all roof applications, less than 3/12 pitch requires 1” Butyl tape and Stitch screws).
• Also available in 24 gauge (White and Galvalume only).
• 43′ maximum length.
Hide Measurements
Show Measurements
Hide 3D Drawings
Show 3D Drawings
Notice: Final color choice must be based on actual color chips.
A 40-year limited paint warranty is available for all colors upon written request. Please inquire.
Solar Reflectivity (SR) Solar reflectivity or reflectance is the measure of a material’s ability to reflect solar energy or sunlight from its surface. SR values are numbered 0 to 1.0. A value of 0 indicates that the surface absorbs all solar energy and a value of 1.0 indicates total reflectance.
Solar Reflectance Index (SRI): The SRI is used to determine compliance with LEED requirements and is calculated according to ASTM E 1980 using values for reflectance and emissivity. To meet LEED requirements, a roofing material must have an SRI of 29 or greater for steep slope roofing and an SRI value of 78 or higher for low slope roofing. For more information, visit: usgbc.org
